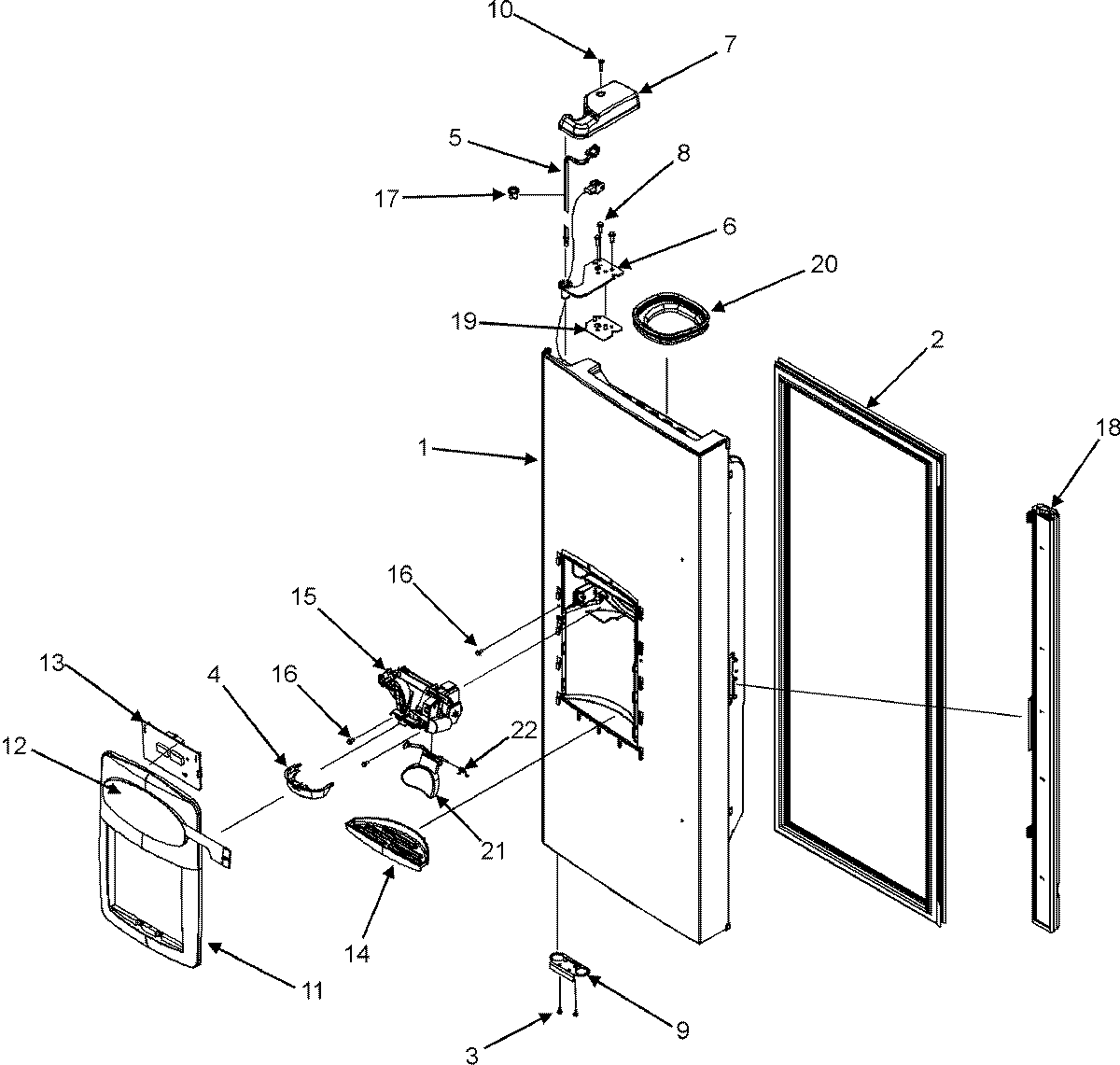

MFI2067AEW 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

MFI2067AEW 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Written by

in

MFI2067AEW 08 – LEFT REFRIGERATOR DOOR (ICE & WATER)

Products

PositionProduct
1MAY 67006967
2W11396037 Whirlpool Door Gasket
3WP98165 Whirlpool Screw
467006295 Whirlpool Refrigerator Target Ring
512962106 Whirlpool Refrigerator Waterline Door
6MAY 67005950
7WPW10337634 Whirlpool Refrigerator Cover
8WP489349 Whirlpool Refrigerator Screw
9STOP, DOOR (WHT)
10WP8281196 Whirlpool Screw
11MAY 67006290
12W10775847 Whirlpool Refrigerator Electronic Control Board
1367006294 Whirlpool Control Board + Core
14MAY 67006394
1712996601 Whirlpool Refrigerator Bushing Clip
18WP12722813W Whirlpool Refrigerator Mullion Rail
18MAY 67006400
1912999501 Whirlpool Refrigerator Hinge Shim
20WPW10287601 Whirlpool Seal
21MAY W10131126
22WP12565502 Whirlpool Refrigerator Spring
