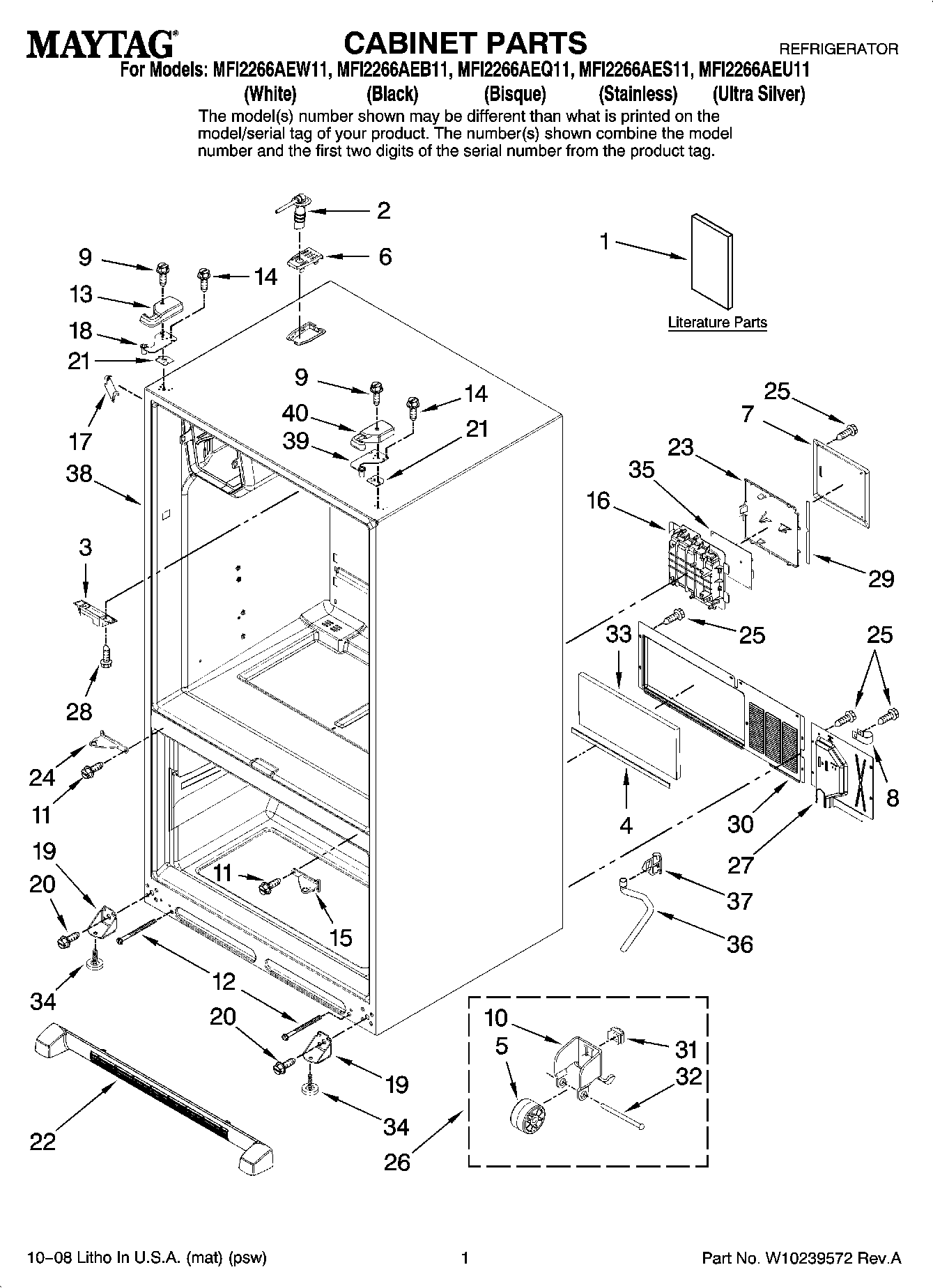

MFI2266AEB11 01 – CABINET PARTS

MFI2266AEB11 01 – CABINET PARTS

Written by

in

MFI2266AEB11 01 – CABINET PARTS

Products

PositionProduct
1MAY W10202393
1MAY 12827970
1MAY W10175444
2MAY W10165840
3WP67003405 Whirlpool Pivot Block
4Gasket
5WP10450603 Whirlpool Refrigerator Roller
6MAY 67006321
6MAY 67006320
7MAY 67006427
8W10833902 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
1271003131 Whirlpool Oven Screw
13WPW10337634 Whirlpool Refrigerator Cover
13Cover, Left Hinge (Bisque)
13W10337647 Whirlpool Refrigerator Cover
14WP489349 Whirlpool Refrigerator Screw
15W10918168 Whirlpool Refrigerator Door Hinge
15MAY 67006379
16WP67006390 Whirlpool Refrigerator High Voltage Box
1767003485 Whirlpool Refrigerator Corner Cover (Black)
17MAY 67003486
1767003484 Whirlpool Refrigerator White Corner Cover
18MAY 12963204ED
19Bracket, Foot
20MAY 67006564
2112999501 Whirlpool Refrigerator Hinge Shim
2112999502 Whirlpool Refrigerator Hinge Shim
22MAY 67006791
22WPW10534161 Whirlpool Refrigerator Front Grille
22WPW10534162 Whirlpool Refrigerator Front Grille
2367006428 Whirlpool Refrigerator LID, HV Control
2467006442 Whirlpool Refrigerator Center Hinge (LT-BLK)
24W10918113 Whirlpool Refrigerator Door Hinge
25Screw (10)
26ROLLER ASSY.(REAR)
27MAY 12701909
28SCREW
29MAY 67006429
30MAY 12575101WD
31MAY M0286708
32MAY M1205302
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35MAY W10191108
36MAY W10164397
37MAY W10157973
39MAY 12963205ED
40Cover, Right Hinge (Bisque)
4067005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
40WP67005956 Whirlpool Refrigerator Cover
