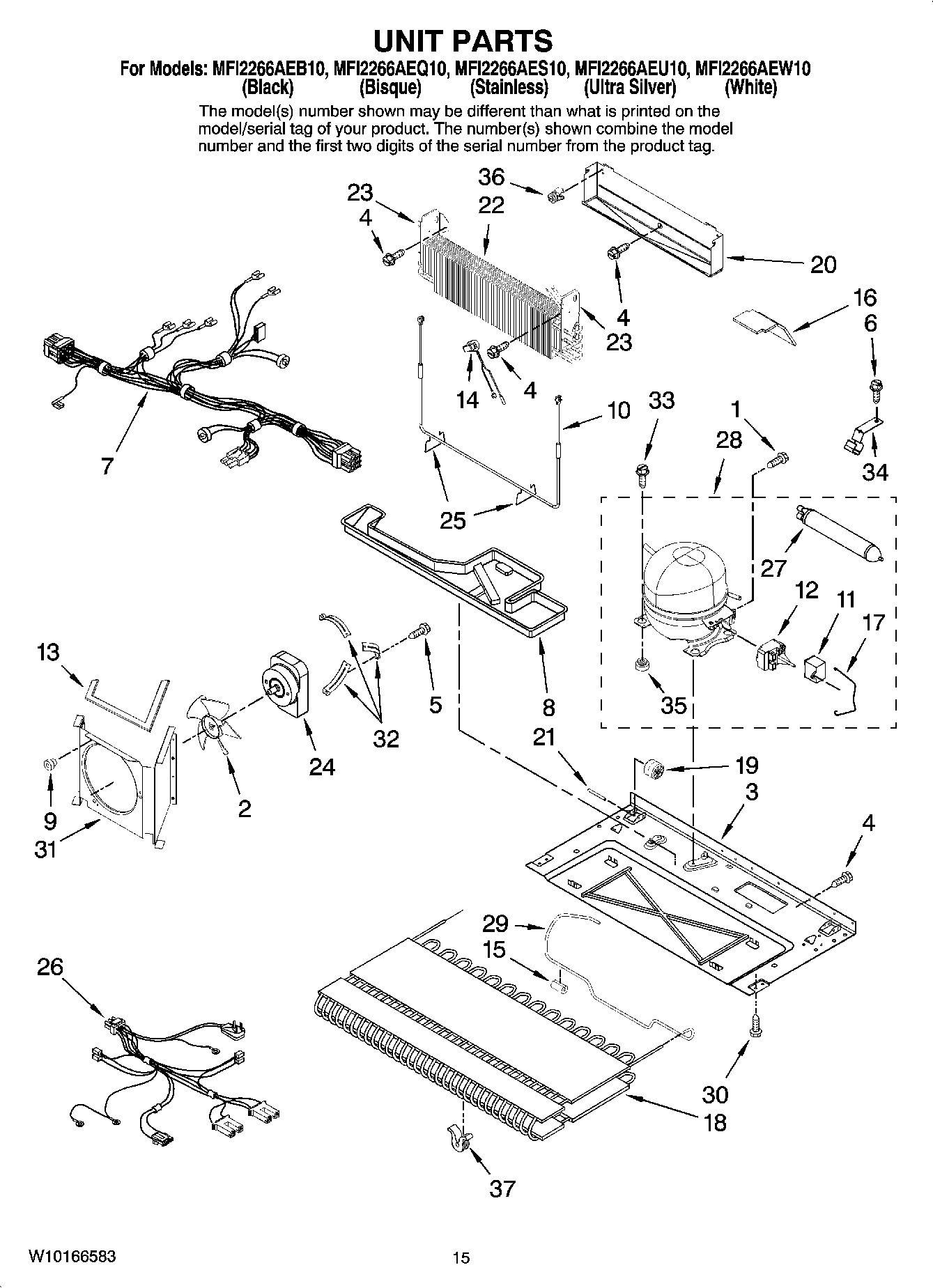

MFI2266AEQ10 09 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

MFI2266AEQ10 09 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

MFI2266AEQ10 09 – UNIT PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
NI	MAY 1117510
NI	MAY 479502
NI	MAY 503695
NI	MAY 505587
NI	MAY 542638
NI	MAY 542639
NI	MAY 606755
NI	MAY 833938
NI	MAY 876029
NI	MAY 876305
NI	MAY 876370
NI	MAY 978941
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
NI	SEALER, GUM (4 FEET)
NI	Valve, Access (3/4“)
NI	CLEANER, STAINLESS STEEL
NI	PAINT, PRESSURIZED SPRAY (12OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. WHITE)
NI	PAINT, TOUCH-UP (1/2OZ. BLACK)
NI	PAINT, BULK (1 QT. WHITE (UNCUT))
NI	4392899 Whirlpool Biscuit Touch-Up Paint
NI	4392901 Whirlpool Biscuit Spray Paint
NI	Valve, Access (5/16“)
NI	MAY W10165971
NI	PAINT, SPRAY (WHITE PRIMER)
NI	Refinishing Material (Enamel, Black (1 Qt. Uncut))
1	MAY 67006433
2	MAY W10162928
3	BASEPAN, MACHINE COMPARTMENT
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	SCREW
7	Harness, Evap Heater
8	Drain Pan
9	GROMMET, BRACKET
10	MAY W10166768
11	Capacitator (Production)
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	MAY 67006387
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	PAD-ACOUSTIC
17	MAY 2255199
18	WP67006132 Whirlpool Refrigerator Condenser
19	WP67005149 Whirlpool Roller
20	TRAY, DRIP E-CT
21	67006434 Whirlpool Axle Pin
22	MAY W10166256
23	MAY W10162962
23	MAY W10162951
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	Harness, Unit with Power Cord
27	Drier
28	Compressor (Includes items 11,12,17,27,29)
29	MAY W10134303
30	Screw (4)
31	Shroud, Condenser
32	MAY 67004953
33	MAY 67006432
34	MAY 10547003
35	67003493 Whirlpool Refrigerator Compressor Grommet
36	MAY 10623002
37	MAY W10117502
