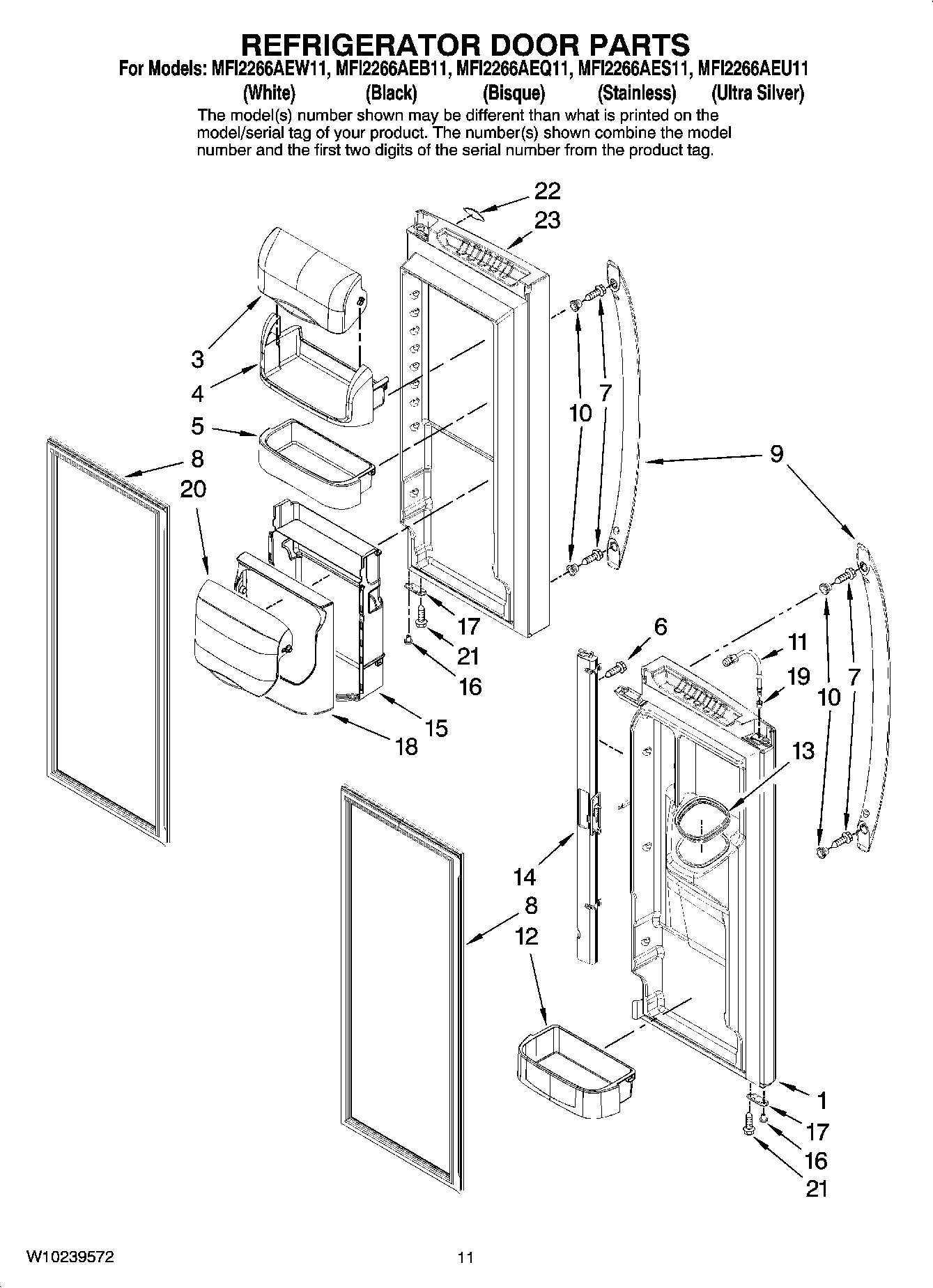

MFI2266AEU11 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY W10166239
1	MAY W10160133
1	MAY W10160124
1	MAY W10160130
1	MAY W10160127
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WP67006313 Whirlpool Refrigerator Chiller Bucket
6	MAY 67006400
7	SCREW
8	MAY W10163898
8	MAY W10163896
8	MAY W10163994
8	MAY W10163993
9	WP13004701B Whirlpool Refrigerator Handle
9	13004701W Whirlpool Refrigerator Handle
9	MAY 12658798S
9	MAY 67006982
10	WP67006113 Whirlpool Stud Bolt
11	12962106 Whirlpool Refrigerator Waterline Door
12	Bin, Shelf (Gallon)
13	WPW10287601 Whirlpool Seal
14	MAY W10164406
14	MAY W10164405
14	MAY W10164404
16	WP67003639 Whirlpool Refrigerator Closer
16	WP67003638 Whirlpool Closing Cam
17	Stop, Door (Bisque)
17	MAY 12968202W
17	W11708403 Whirlpool Door Stop
18	W11266639 Whirlpool Refrigerator Chiller
19	12996601 Whirlpool Refrigerator Bushing Clip
20	DOOR-CHILL
21	Screw (8)
22	Nameplate
23	MAY W10160132
23	MAY W10160129
23	MAY W10160126
23	MAY W10160123
23	MAY W10166240
