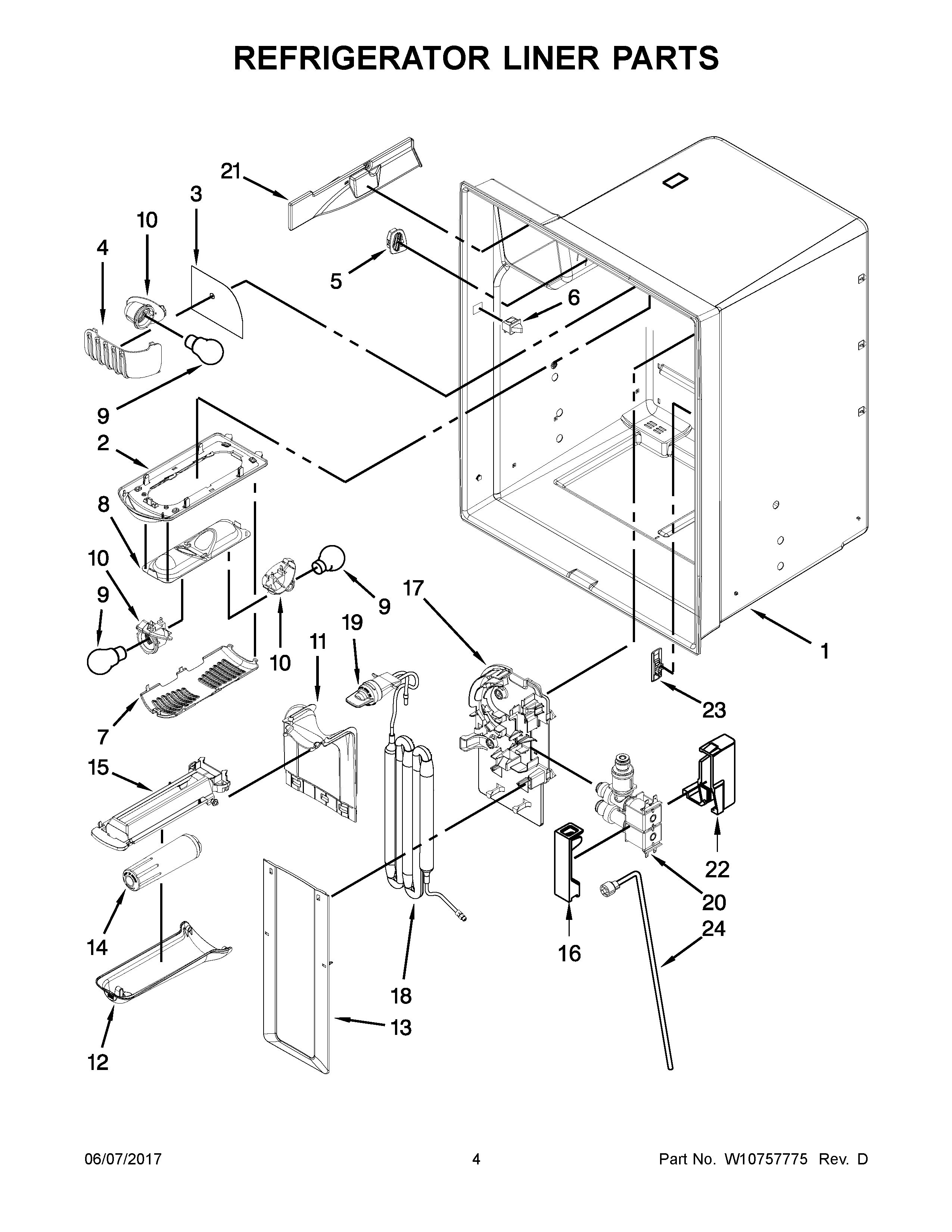

MFI2269DRE00 03 – REFRIGERATOR LINER PARTSadmin2025-04-26T09:11:32+00:00MFI2269DRE00 03 – REFRIGERATOR LINER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2 | MODULE, LIGHT |
| 3 | MAY 12691605 |
| 4 | MAY 12921801 |
| 5 | ASSEMBLY, AIR GRILLE |
| 6 | SWITCH, LIGHT |
| 7 | MAY 12905902 |
| 8 | MAY W10443023 |
| 9 | LAMP, LED |
| 10 | W11447232 Whirlpool Refrigerator Socket |
| 11 | Cover, Water Tank (Upper) |
| 12 | Lid, Water Filter |
| 13 | COVER, WATER TANK(LOWER) |
| 14 | MAY W10735404 |
| 15 | MAY 12955901 |
| 16 | MAY W10118194 |
| 17 | BRACKET, WATER TANK AND VALVE |
| 18 | ASSEMBLY, WATER TANK AND HEAD (INCLUDES BYPASS CARTRIDGE) |
| 19 | MAY 12664501SP |
| 20 | MAY W10312696 |
| 21 | COVER, WIRE |
| 22 | MAY W10118193 |
| 23 | MAY 12987301 |
| 24 | WATERLINE |
