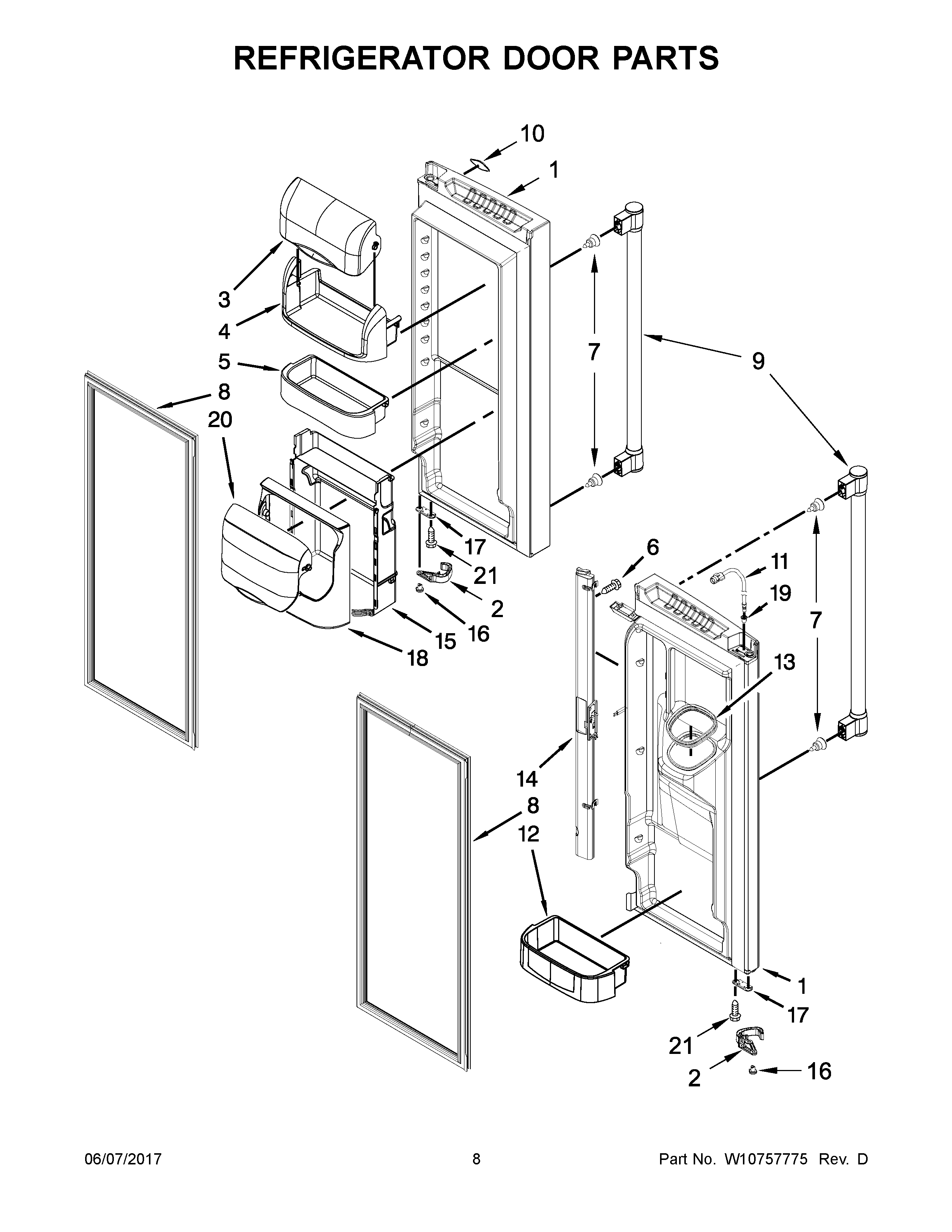

MFI2269DRE00 05 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:11:14+00:00MFI2269DRE00 05 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1D | DOOR, RIGHT (BLACK) |
| 1E | DOOR, RIGHT (STAINLESS) |
| 1 | DOOR, LEFT (WHITE) |
| 1A | DOOR, LEFT (BLACK) |
| 1B | DOOR, LEFT (STAINLESS) |
| 1C | DOOR, RIGHT (WHITE) |
| 2 | LATCH, DOOR CLOSER LEFT HAND (WHITE) |
| 2A | LATCH, DOOR CLOSER RIGHT HAND (WHITE) |
| 3 | MAY 12804701SP |
| 4 | MAY 12369502SP |
| 5 | MAY 12945801SP |
| 6 | MAY 12990513 |
| 7 | MAY W10460893 |
| 8 | GASKET, DOOR LEFT HAND (WHITE) |
| 8A | GASKET, DOOR LEFT HAND (BLACK) |
| 8B | GASKET, DOOR LEFT HAND (GREY) |
| 8C | GASKET, DOOR RIGHT HAND (WHITE) |
| 8D | GASKET, DOOR (BLACK) |
| 8E | GASKET, DOOR RIGHT HAND (GREY) |
| 9 | ASSEMBLY, HANDLE (STAINLESS) |
| 10 | MAY W10612926 |
| 11 | MAY W10275942 |
| 12 | BUCKET, GALLON (CLEAR) |
| 13 | MAY W10287601 |
| 14 | MAY 12722813W |
| 14A | MAY 12722813B |
| 14B | MULLION, DOOR (GREY) |
| 15 | MAY 12945601SP |
| 16B | MAY 12028505AP |
| 16A | MAY 12028505B |
| 16 | MAY 12028505W |
| 17B | MAY 12968202AP |
| 17 | MAY 12968202W |
| 17A | MAY 12968202B |
| 18 | MAY 12945501SP |
| 19 | MAY 12996601 |
| 20 | MAY 12945701SP |
| 21 | Screw (8) |
