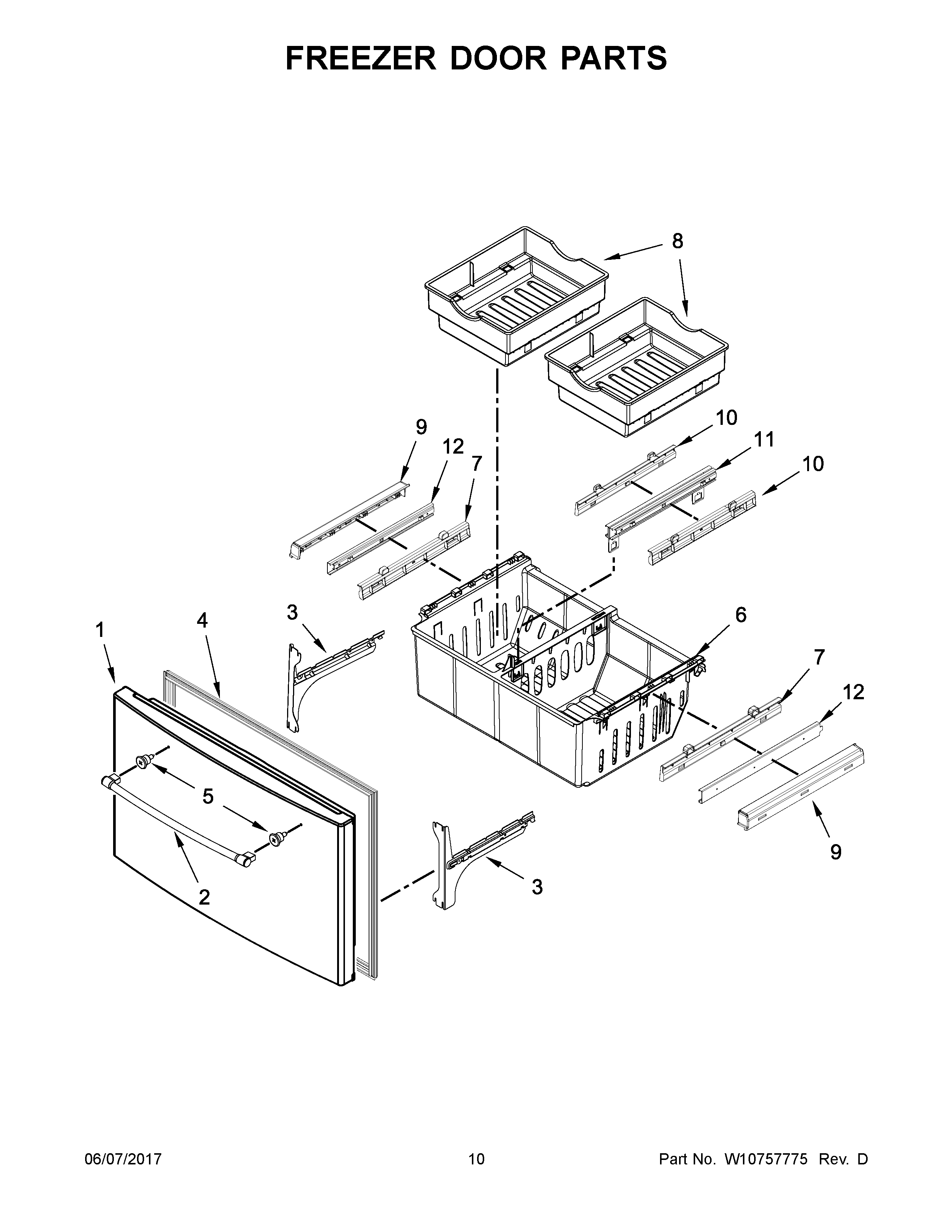

MFI2269DRE00 06 – FREEZER DOOR PARTSadmin2025-04-26T09:11:20+00:00MFI2269DRE00 06 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1B | DOOR, FREEZER (STAINLESS) |
| 1A | DOOR, FREEZER (BLACK) |
| 1 | DOOR, FREEZER (WHITE) |
| 2 | MAY W10697035 |
| 3 | MAY W10330991 |
| 3A | MAY W10330993 |
| 4 | GASKET, DOOR (WHITE) |
| 4B | GASKET, DOOR (GREY) |
| 4A | GASKET, DOOR (BLACK) |
| 5 | MAY W10460893 |
| 6 | BIN, LOWER |
| 7 | MAY 12925403SP |
| 8 | MAY 12924903 |
| 8A | BIN, UPPER (RIGHT HAND) |
| 9 | RETAINER, GLIDE (LEFT HAND) |
| 9A | RETAINER, GLIDE (RIGHT HAND) |
| 10 | ADAPTER, BIN (CENTER) |
| 11 | BRACKET AND GLIDE ASSEMBLY |
| 12 | MAY W10235367 |
