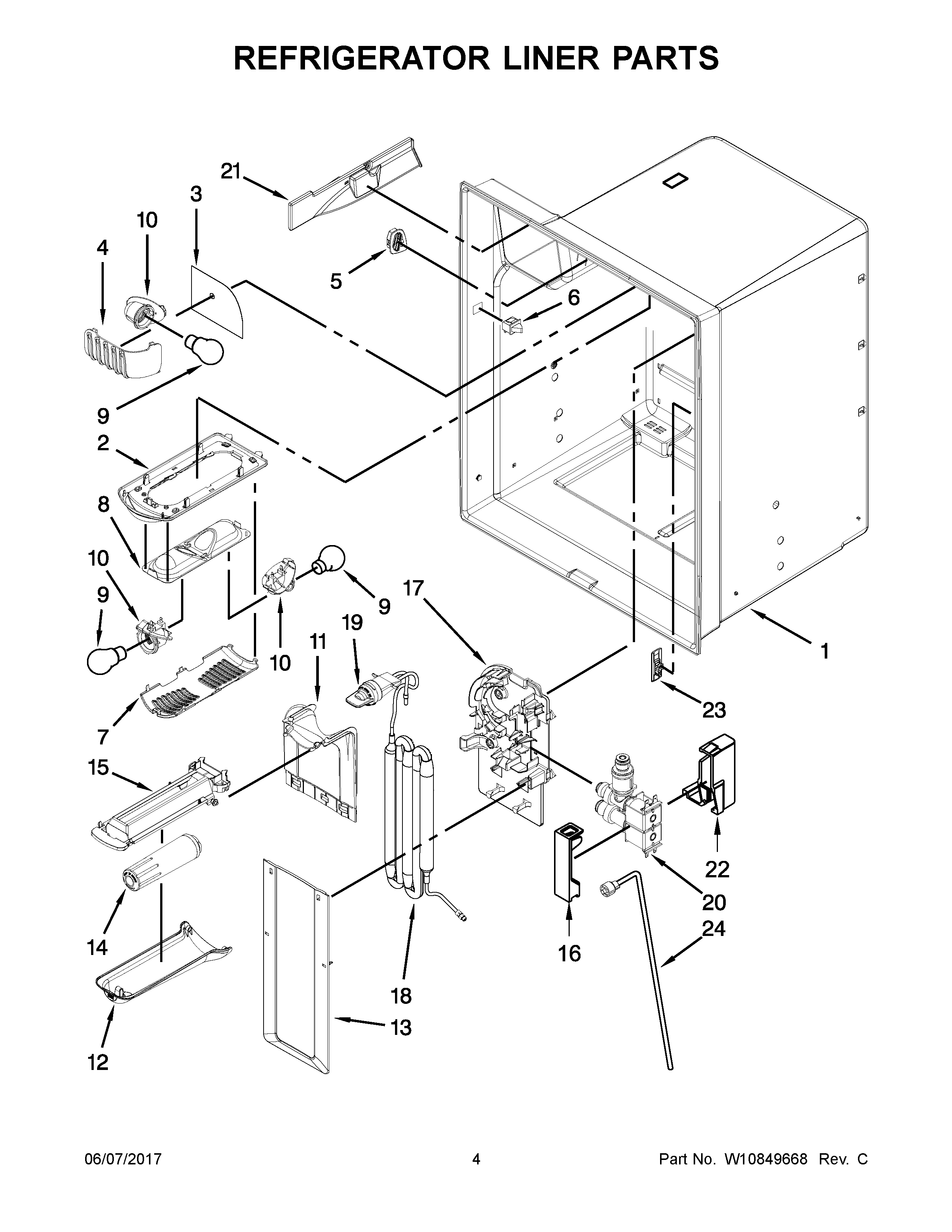

MFI2269DRE01 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MODULE, LIGHT
3MAY 12691605
4MAY 12921801
5ASSEMBLY, AIR GRILLE
6SWITCH, LIGHT
7MAY 12905902
8MAY W10443023
9LAMP, LED
10W11447232 Whirlpool Refrigerator Socket
11Cover, Water Tank (Upper)
12Lid, Water Filter
13COVER, WATER TANK(LOWER)
14MAY W10735404
15MAY 12955901
16MAY W10118194
17BRACKET, WATER TANK AND VALVE
18ASSEMBLY, WATER TANK AND HEAD (INCLUDES BYPASS CARTRIDGE)
19MAY 12664501SP
20MAY W10312696
21COVER, WIRE
22MAY W10118193
23MAY 12987301
24WATERLINE
