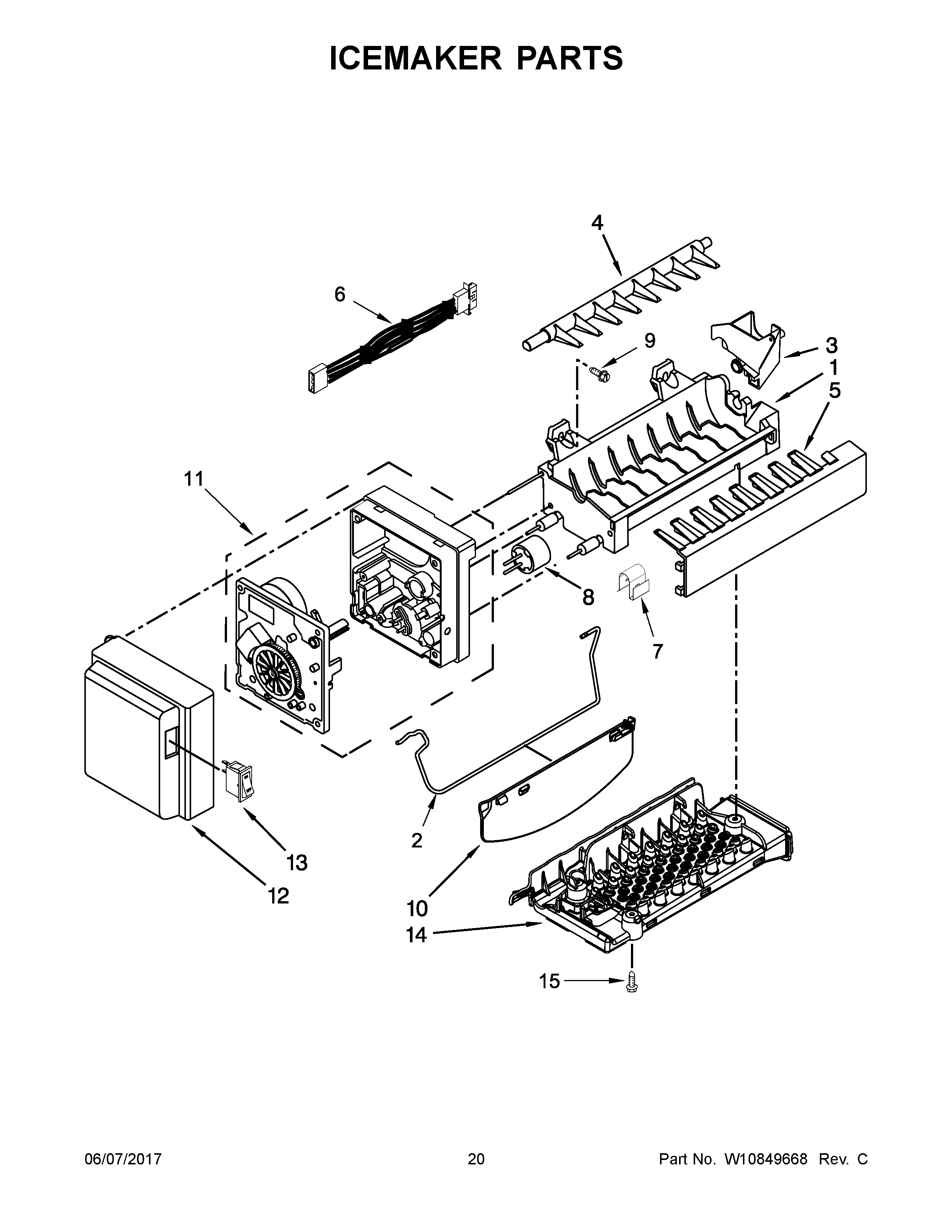

MFI2269DRH01 11 – ICEMAKER PARTS

Products

Position	Product
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10378254
3	MAY W10377998
4	MAY W10318914
5	MAY W10699925
6	HARNESS, ICE MAKER
7	Clip
8	Thermostat (Also Order 542369 Cement Alumilastic)
9	MAY W10068250
10	MAY W10351019
11	ASSEMBLY, MODULE
12	COVER
13	MAY 2313326
14	IMPINGER ASSY.
15	SCREW (10)
100	ASSEMBLY, ICEMAKER
