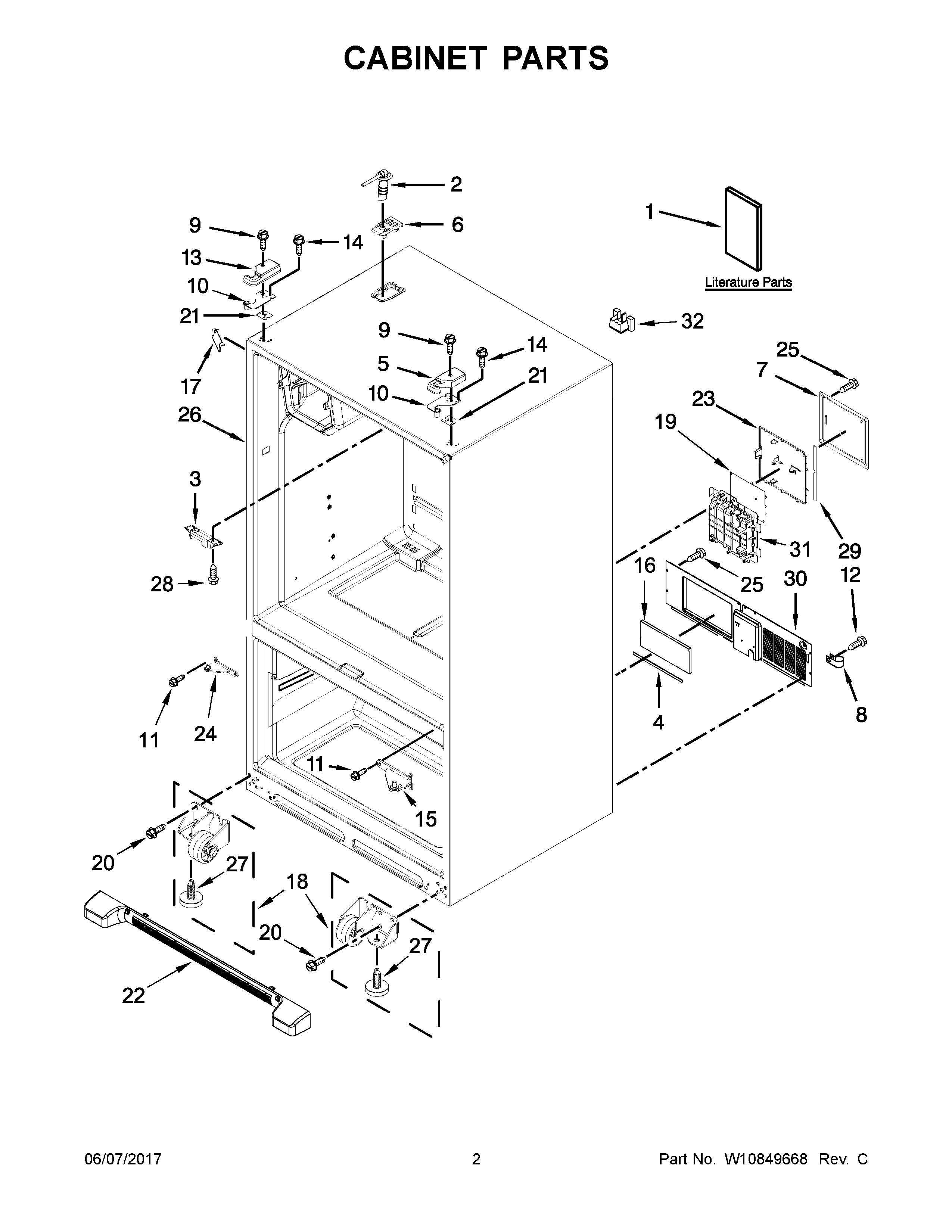

MFI2269DRM01 02 – CABINET PARTS

Products

Position	Product
1A	TECH SHEET (FRENCH)
1B	USE AND CARE GUIDE
1	TECH SHEET (ENGLISH)
1C	ENERGY GUIDE
2	TUBE, WATER
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302W
5B	MAY 12962302AP
5A	MAY 12962302B
6B	MAY 12981401AP
6A	MAY 12981401B
6	MAY 12981401W
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963204ED
10A	MAY 12963205ED
11	MAY W10673840
12	SCREW (10)
13A	COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
13B	COVER, TOP HINGE (LEFT) (GREY)
13	MAY W10337634
14	SCREW (6)
15A	HINGE, CENTER RIGHT HAND (BLACK)
15B	HINGE, CENTER RIGHT HAND (GREY)
15	HINGE, CENTER RIGHT HAND (WHITE)
16	Insulation, Sound
17B	COVER, CORNER (GREY)
17	Cover, Corner (2) (White)
17A	COVER, CORNER (BLACK)
18A	ROLLER ASSEMBLY (RIGHT HAND)
18	ROLLER ASSEMBLY (LEFT HAND)
19	MAY W10312695
20	MAY W10709365
21A	MAY 12999502
21	MAY 12999501
22A	ASSEMBLY, GRILLE (BLACK)
22	ASSEMBLY, GRILLE (WHITE)
22B	ASSEMBLY, GRILLE (GREY)
23	MAY W10296536
24A	HINGE, CENTER LEFT HAND (BLACK)
24	HINGE, CENTER LEFT HAND (WHITE)
24B	HINGE, CENTER LEFT HAND (GREY)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	Brake, Foot
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211849
31	MAY 12957601
32	MAY W10658542
