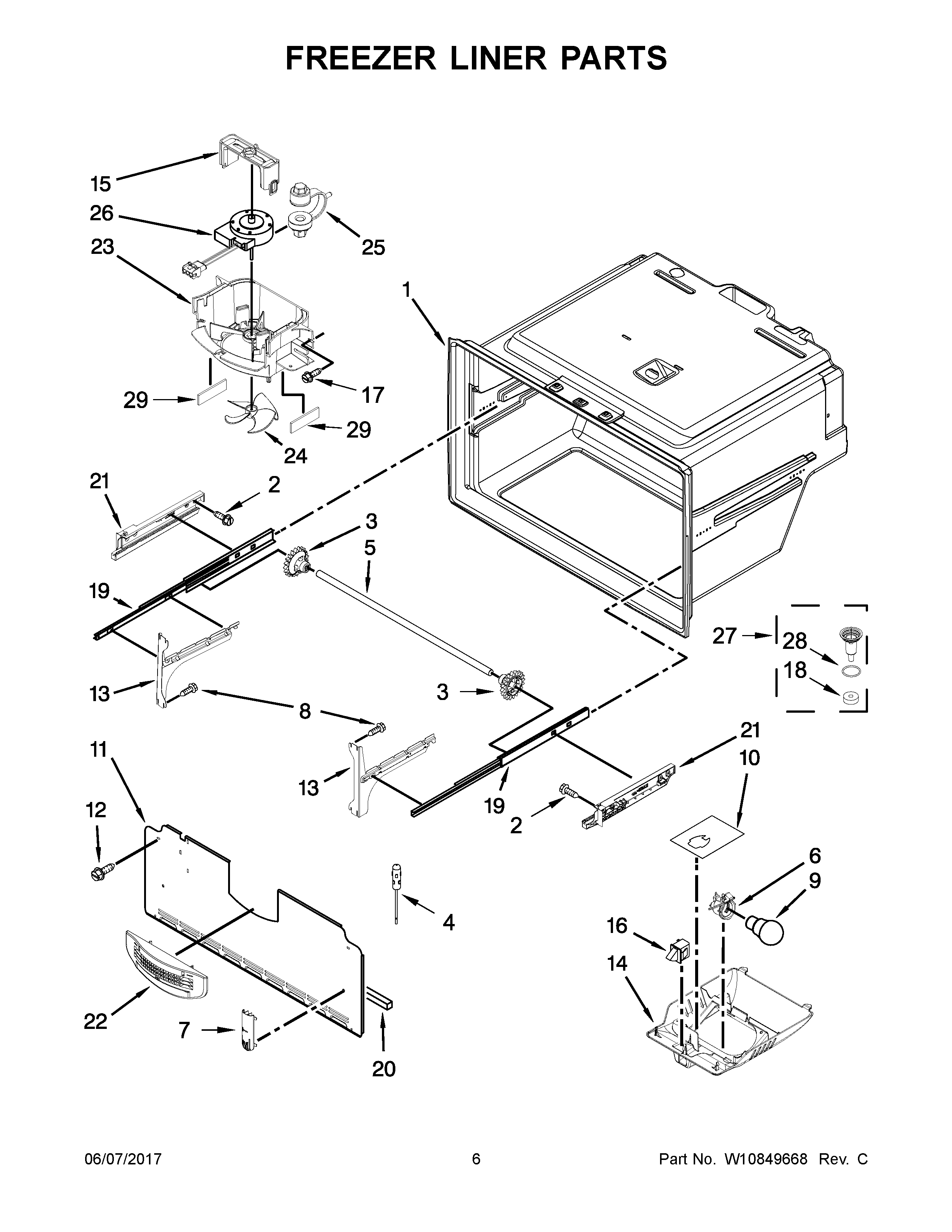

MFI2269DRM01 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Screw (6)
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	THERMISTOR
5	SHAFT, RACK
6	W11447232 Whirlpool Refrigerator Socket
7	MAY 12815301
8	Screw (8)
9	LAMP, LED
10	FOIL-FZ LIGHT
11	COVER, EVAPORATOR
12	SCREW (10)
13	MAY W10330991
13A	MAY W10330993
14	MODULE, FREEZER LIGHT
15	MAY 12956601
16	MAY 12466111SP
17	MAY 12990504
18	Gasket
19	MAY W10120018
20	MAY A3189395
21	MAY W10284682
21A	MAY W10284683
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MAY W10257096
27	MAY W10662407
28	MAY M0500703
29	Gasket, Bottom
