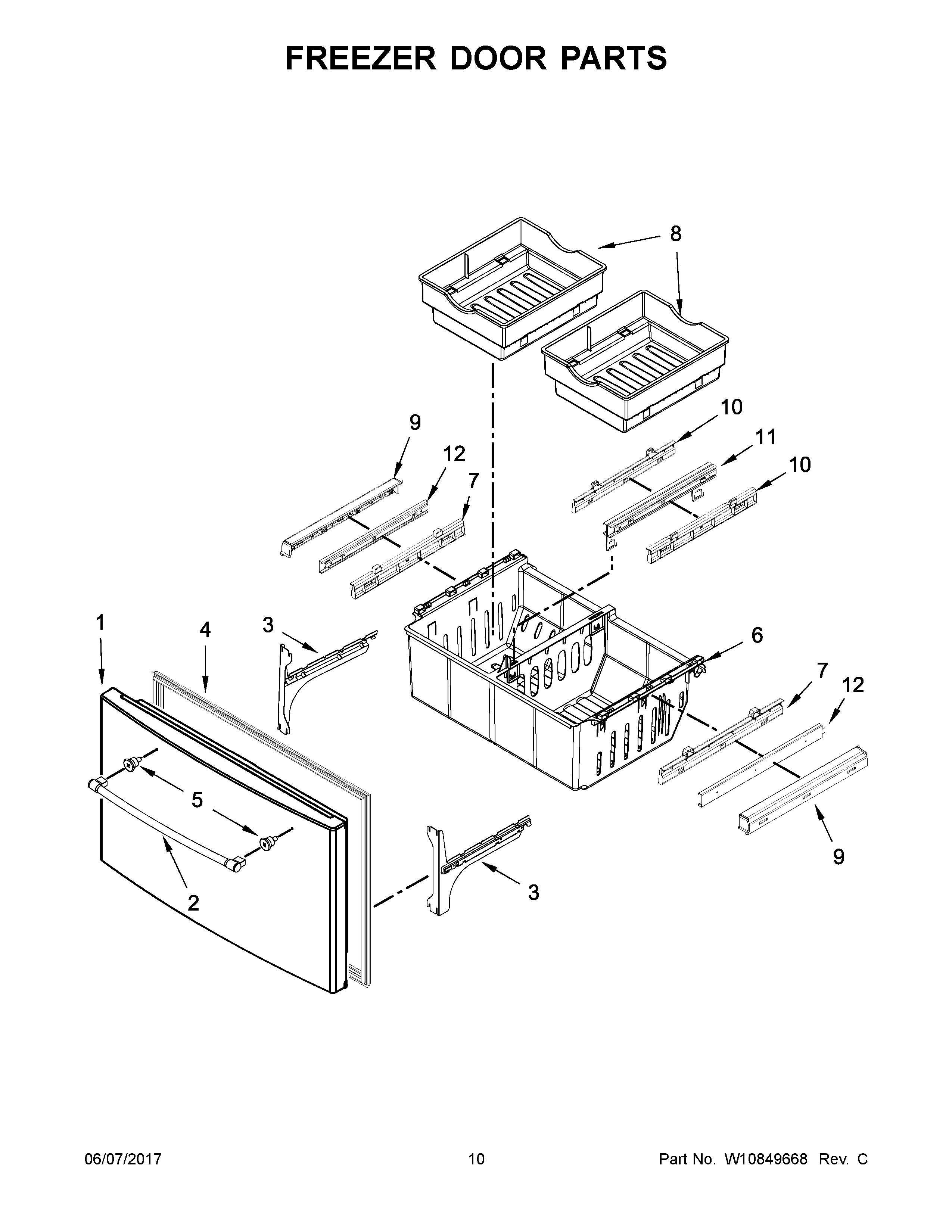

MFI2269DRM01 06 – FREEZER DOOR PARTS

Products

Position	Product
1B	DOOR, FREEZER (STAINLESS)
1A	DOOR, FREEZER (BLACK)
1	DOOR, FREEZER (WHITE)
2	MAY W10697035
3	MAY W10330991
3A	MAY W10330993
4	GASKET, DOOR (WHITE)
4B	GASKET, DOOR (GREY)
4A	GASKET, DOOR (BLACK)
5	MAY W10460893
6	BIN, LOWER
7	MAY 12925403SP
8	MAY 12924903
8A	BIN, UPPER (RIGHT HAND)
9	RETAINER, GLIDE (LEFT HAND)
9A	RETAINER, GLIDE (RIGHT HAND)
10	ADAPTER, BIN (CENTER)
11	BRACKET AND GLIDE ASSEMBLY
12	MAY W10235367
