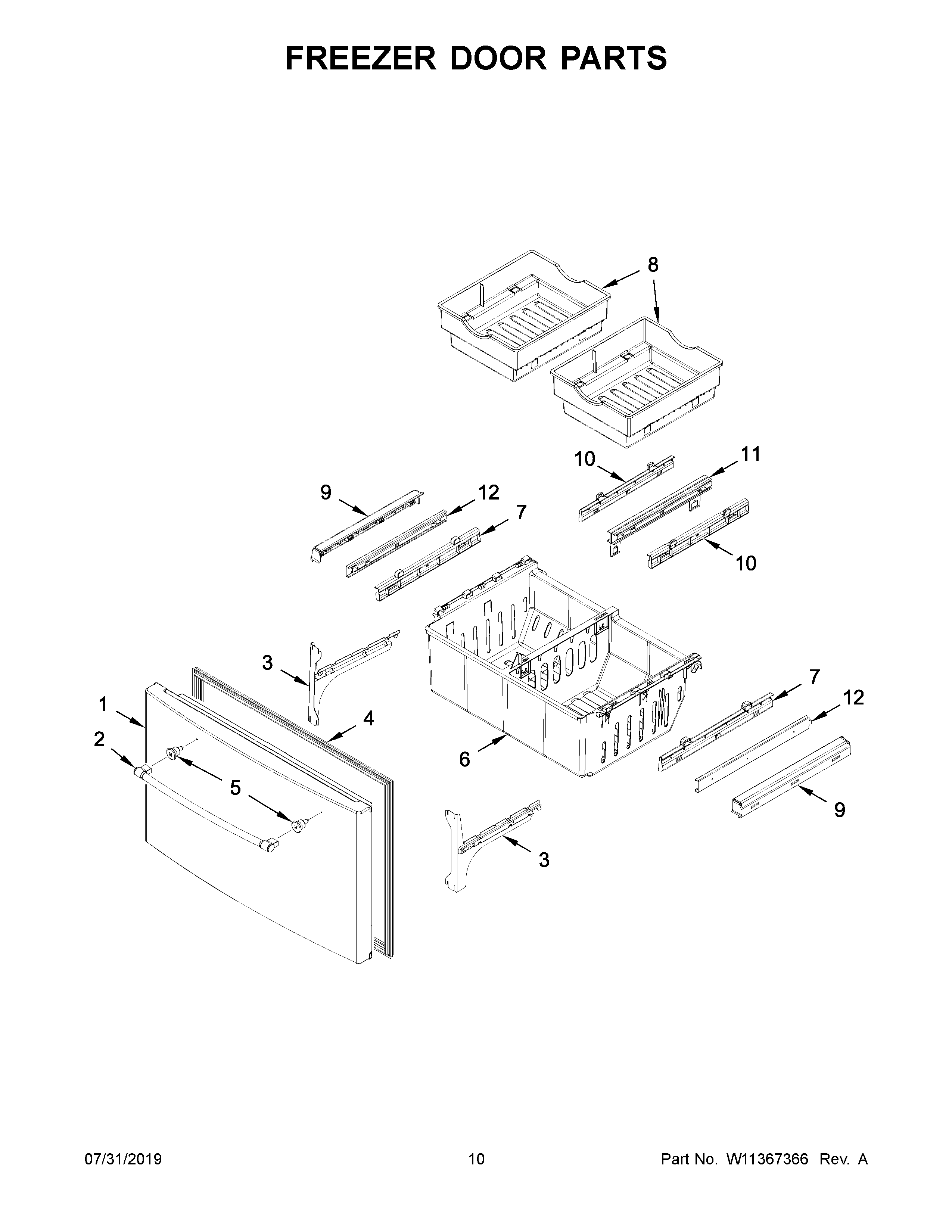

MFI2269FRB01 06 – FREEZER DOOR PARTS

MFI2269FRB01 06 – FREEZER DOOR PARTS

Written by

in

MFI2269FRB01 06 – FREEZER DOOR PARTS

Products

Position	Product
1A	DOOR, FREEZER (BLACK)
1	DOOR, FREEZER (WHITE)
2A	HANDLE, DOOR (BLACK)
2	HANDLE, DOOR (WHITE)
3	MAY W10330991
3A	MAY W10330993
4A	GASKET, DOOR (BLACK)
4	GASKET, DOOR (WHITE)
5	MAY W10460893
6	BIN, LOWER
7	MAY 12925403SP
8A	BIN, UPPER (RIGHT HAND)
8	MAY 12924903
9	RETAINER, GLIDE (LEFT HAND)
9A	RETAINER, GLIDE (RIGHT HAND)
10	ADAPTER, BIN (CENTER)
11	BRACKET AND GLIDE ASSEMBLY
12	MAY W10235367
