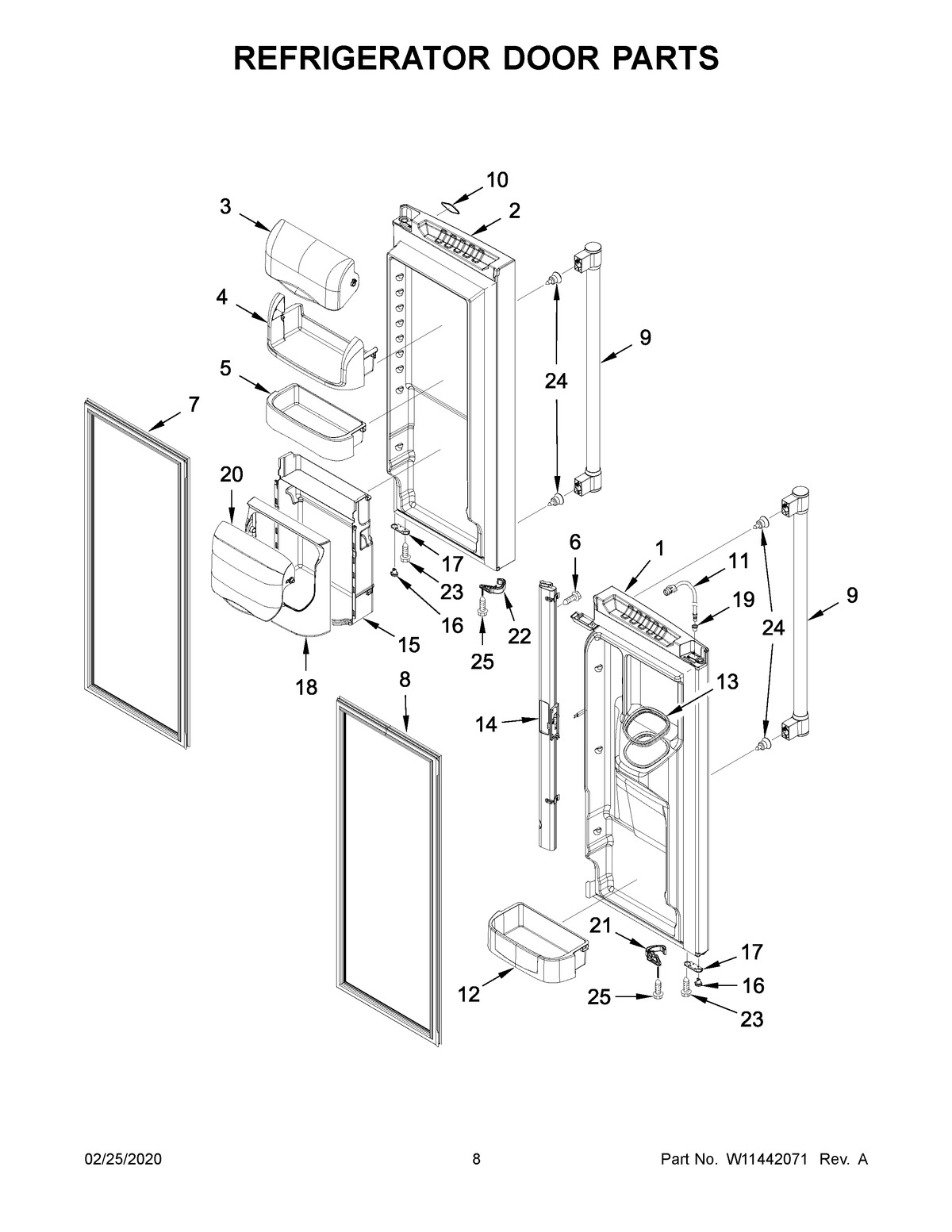

MFI2269FRB02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1A	DOOR, LEFT (BLACK)
1	DOOR, LEFT (WHITE)
2A	DOOR, RIGHT (BLACK)
2	DOOR, RIGHT (WHITE)
3	MAY 12804701SP
4	MAY 12369502SP
5	MAY 12945801SP
6	MAY 12990204
7A	GASKET, DOOR (BLACK)
7	GASKET, DOOR RIGHT HAND (WHITE)
8	GASKET, DOOR LEFT HAND (WHITE)
8A	GASKET, DOOR LEFT HAND (BLACK)
9	MAY W10891380
9A	MAY W10891379
10	MAY W10612926
11	TUBE, WATER
12	BUCKET, GALLON (CLEAR)
13	MAY W10287601
14	MAY 12722813W
14A	MAY 12722813B
15	MAY 12945601SP
16A	MAY 12028505B
16	MAY 12028505W
17A	MAY 12968202B
17	MAY 12968202W
18	MAY 12945501SP
19	MAY 12996601
20	MAY 12945701SP
21	LATCH, DOOR CLOSER LEFT HAND (WHITE)
21A	LATCH, DOOR CLOSER LEFT HAND (BLACK)
22	LATCH, DOOR CLOSER RIGHT HAND (WHITE)
22A	LATCH, DOOR CLOSER RIGHT HAND (BLACK)
23	Screw (8)
24	SCREW
25	SCREW
