MFI2269FRB03 02 – CABINET PARTS

MFI2269FRB03 02 – CABINET PARTS

Written by

in

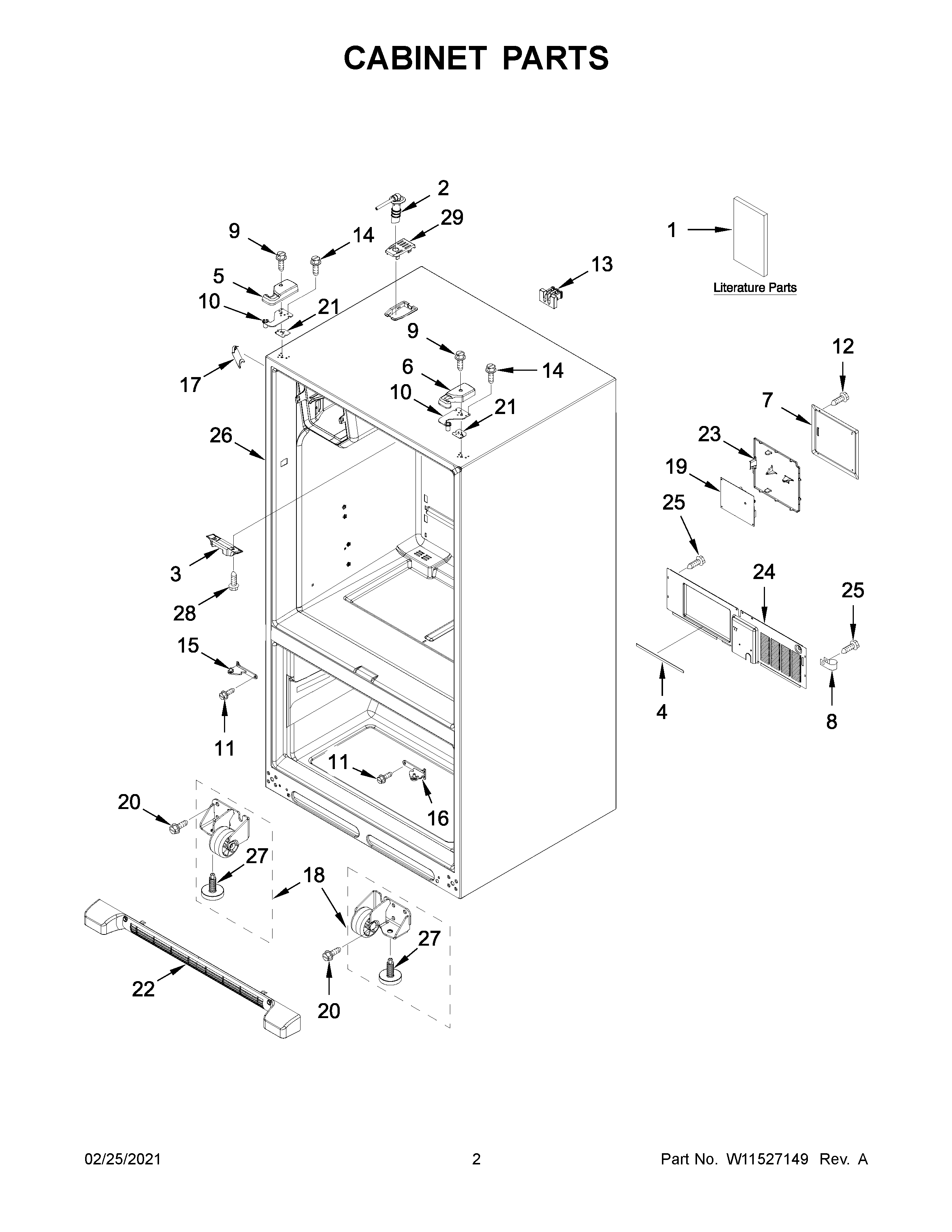

MFI2269FRB03 02 – CABINET PARTS

Products

PositionProduct
1ATECH SHEET (FRENCH)
1BTECH SHEET, USE AND CARE GUIDE
1CENERGY GUIDE
1TECH SHEET (ENGLISH)
2W11551552 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4GASKET
5WPW10337634 Whirlpool Refrigerator Cover
5AW10337647 Whirlpool Refrigerator Cover
667005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
6AWP67005956 Whirlpool Refrigerator Cover
712961602 Whirlpool Refrigerator Wire Cover
8W11456069 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
10AW11592374 Whirlpool Refrigerator Top Door Hinge
10W11592375 Whirlpool Door Hinge
11W11573362 Whirlpool Screw Assembly
12W11686675 Whirlpool Screw
13W11686793 Whirlpool Block
14WP489349 Whirlpool Refrigerator Screw
15W10918115 Whirlpool Refrigerator Door Hinge
15AW10918166 Whirlpool Refrigerator Door Hinge
16AW10918168 Whirlpool Refrigerator Door Hinge
16W10918117 Whirlpool Refrigerator Door Hinge
1712587703W Whirlpool Refrigerator Cover
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
18WPW10515763 Whirlpool Refrigerator Cabinet Roller
18AWPW10515762 Whirlpool Refrigerator Cabinet Roller
19WPW10312695 Whirlpool Refrigerator Control Board + Core
2067006564 Whirlpool Refrigerator Screw
21A12999502 Whirlpool Refrigerator Hinge Shim
2112999501 Whirlpool Refrigerator Hinge Shim
22AWPW10534162 Whirlpool Refrigerator Front Grille
22WPW10534161 Whirlpool Refrigerator Front Grille
23W10296536 Whirlpool Refrigerator Cover
24W10211849 Whirlpool Refrigerator 33" Cover
25SCREW
26CABINET (NOT A SERVICEABLE PART)
27WPW10141622 Whirlpool Leveler
28W11693756 Whirlpool Screw Assembly
29A12981401B Whirlpool Refrigerator Filtration Cover
2912981401W Whirlpool Refrigerator Cover Filter
