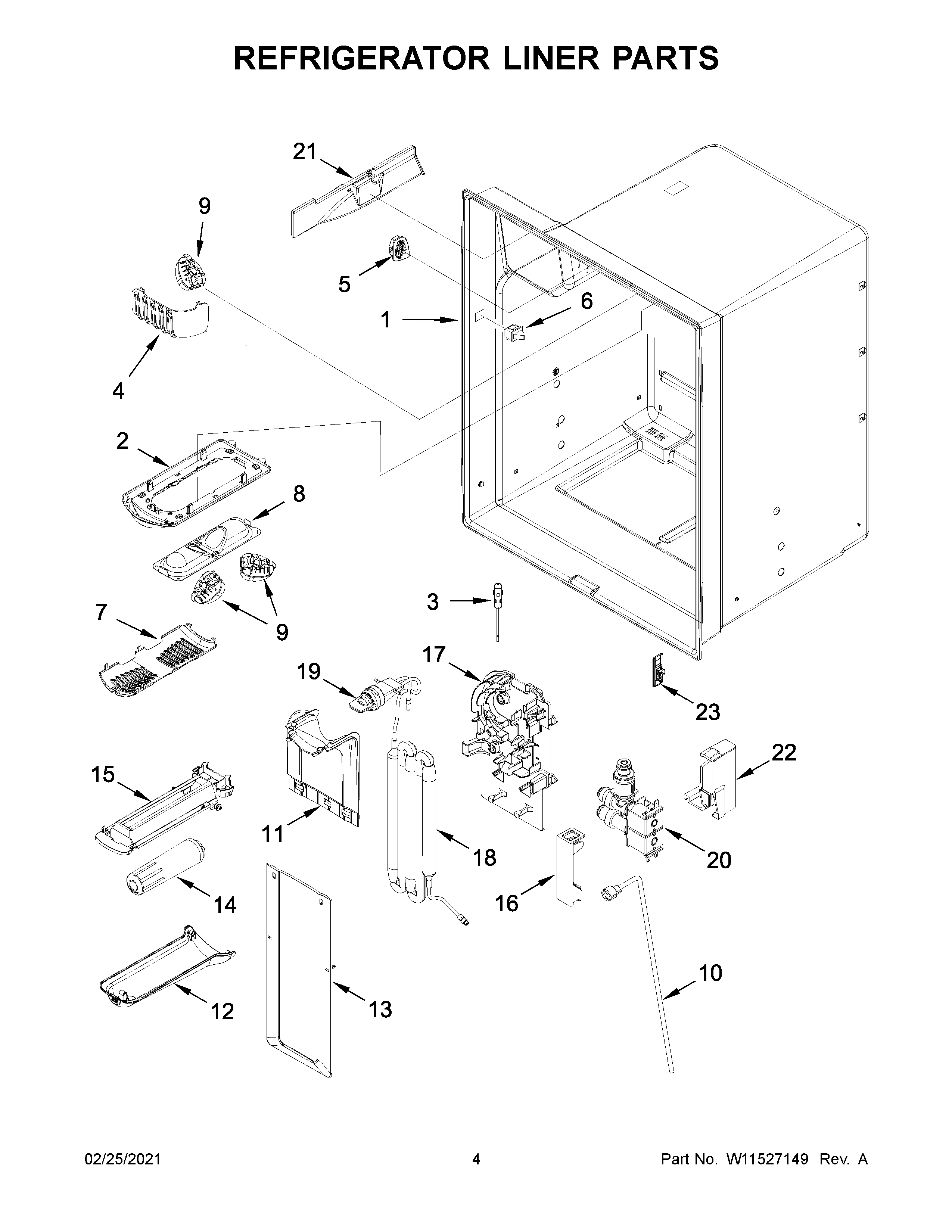

MFI2269FRB03 03 – REFRIGERATOR LINER PARTS

MFI2269FRB03 03 – REFRIGERATOR LINER PARTS

Written by

in

MFI2269FRB03 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10464777 Whirlpool Refrigerator Housing
312002355 Whirlpool Refrigerator Thermistor Kit
412921801 Whirlpool Refrigerator Light Cover
5W10555984 Whirlpool Refrigerator Grille
6W11396033 Whirlpool Refrigerator Rocker Switch
7COVER, LIGHT
8W10443023 Whirlpool Refrigerator Housing
9MODULE
10WATERLINE, CABINET (W/NUT)
1112960101 Whirlpool Refrigerator Cover
12WP67006331 Whirlpool Refrigerator Water Filter Cover
1367006329 Whirlpool Refrigerator Cover Water Tank (Lower)
14everydrop® Filter 4 EDR4RXD1 Whirlpool Refrigerator Water
1567006325 Whirlpool Filter Base Bracket
16W10118194 Whirlpool Refrigerator Cover
17WPW10334463 Whirlpool Refrigerator Bracket
18RESERVOIR
19W11395888 Whirlpool Refrigerator Bypass Filter Cap
20WPW10312696 Whirlpool Water Inlet Valve
21W10165861 Whirlpool Refrigerator Wire Cover
22W10118193 Whirlpool Refrigerator Cover
2312987301 Whirlpool Refrigerator Cover
