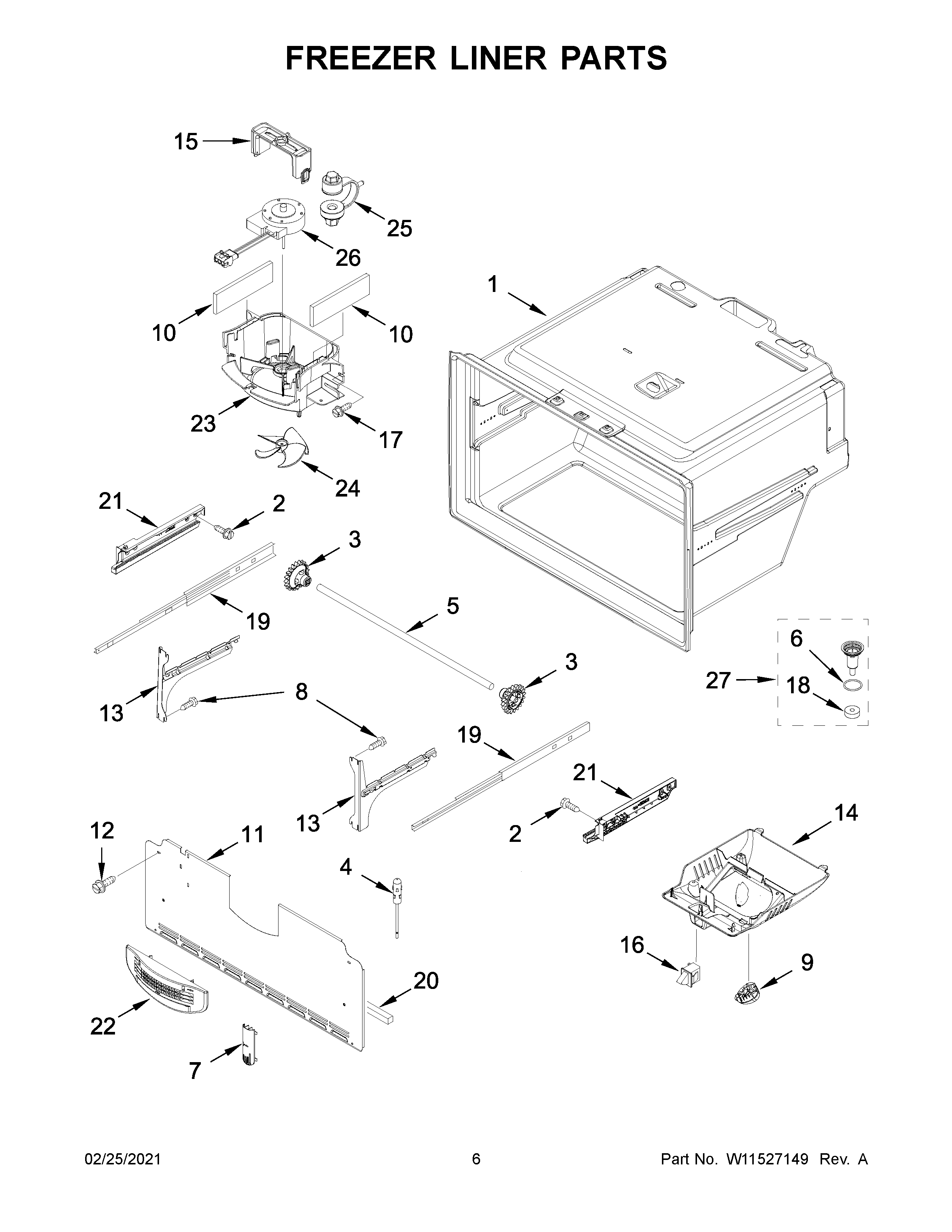

MFI2269FRB03 04 – FREEZER LINER PARTS

MFI2269FRB03 04 – FREEZER LINER PARTS

Written by

in

MFI2269FRB03 04 – FREEZER LINER PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2WP489474 Whirlpool Refrigerator Screw
312002497 Whirlpool Refrigerator Drawer Gear Kit
412002355 Whirlpool Refrigerator Thermistor Kit
5W11715937 Whirlpool Shaft
6WPM0500703 Whirlpool Refrigerator O-Ring Seal
7WP67003924 Whirlpool Refrigerator Cover
9MODULE
10W10856123 Whirlpool Refrigerator Gasket
11W10308422 Whirlpool Evaporator Cover
1267006425 Whirlpool Refrigerator Screw
13AWPW10330993 Whirlpool Refrigerator Bracket
13WPW10330991 Whirlpool Refrigerator Bracket
14W11434460 Whirlpool Refrigerator Housing
15W11712696 Whirlpool Clip
16W11445850 Whirlpool Door Switch
17WP98165 Whirlpool Screw
18WPB8381501 Whirlpool Refrigerator Door Gasket
19W11658402 Whirlpool Drawer Slide Rail
20W11159742 Whirlpool Refrigerator Gasket
21WPW10284682 Whirlpool Refrigerator Bracket
21AWPW10284683 Whirlpool Refrigerator Bracket
22W11176847 Whirlpool Refrigerator Grille
23W11700329 Whirlpool Evaporator Shroud
24WP67006337 Whirlpool Refrigerator Fan Blade
25W11676465 Whirlpool Grommet
26W11368910 Whirlpool Refrigerator Evaporator Motor
27W10815413 Whirlpool Refrigerator Funnel
