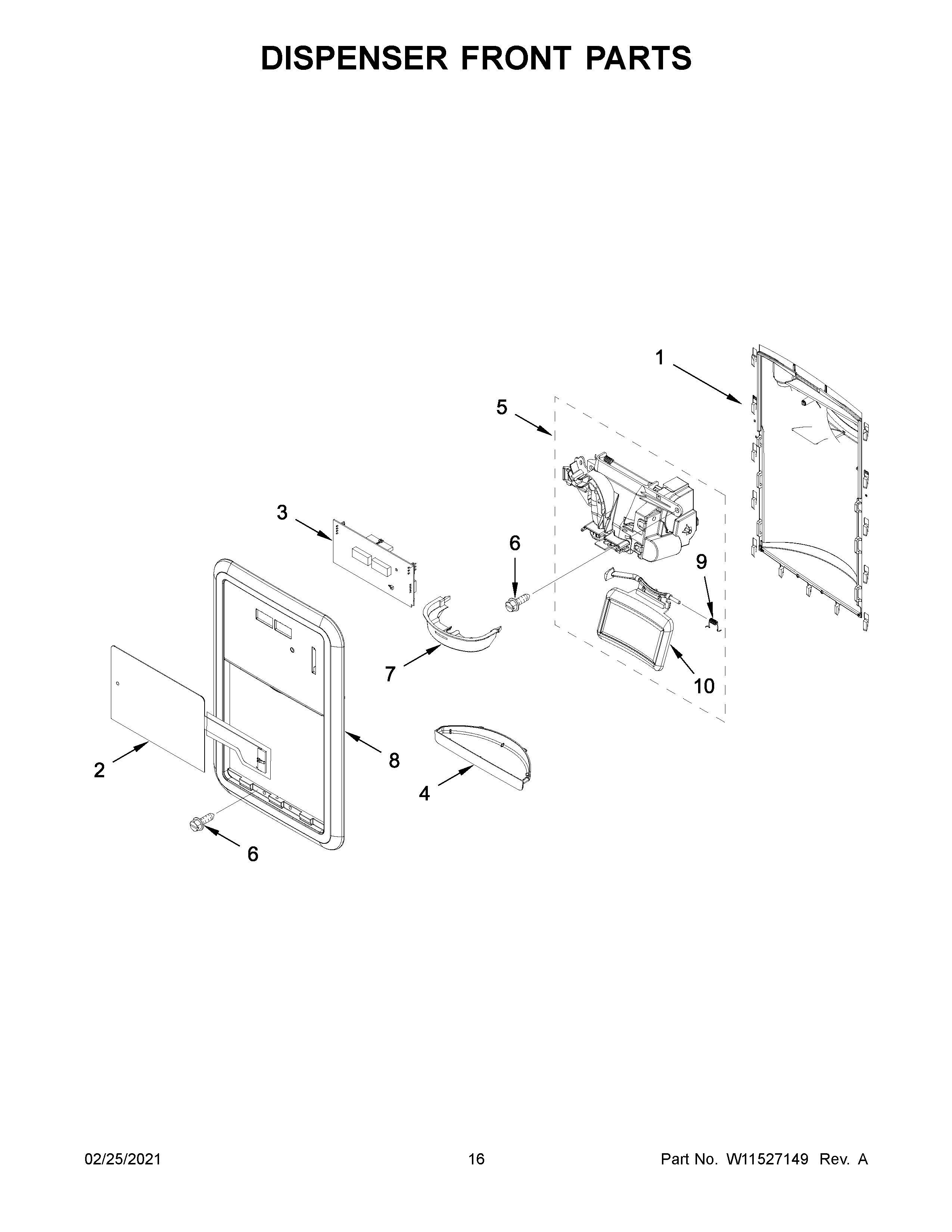

MFI2269FRB03 09 – DISPENSER FRONT PARTS

MFI2269FRB03 09 – DISPENSER FRONT PARTS

Written by

in

MFI2269FRB03 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2AW10731567 Whirlpool Black Overlay
2W10731566 Whirlpool Refrigerator White Overlay
3W10799818 Whirlpool Refrigerator Electronic Control Board
4AW10445056 Whirlpool Refrigerator Drip Tray
4W10445057 Whirlpool Refrigerator Drip Tray
5AWP13005703B Whirlpool Refrigerator Chute
5WP13005703W Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8W10142272 Whirlpool Refrigerator Cover
8AWPW10164982 Whirlpool Refrigerator Cover
9WP12565502 Whirlpool Refrigerator Spring
10W10170831 Whirlpool Refrigerator Pad
10AW10170832 Whirlpool Refrigerator Pad
