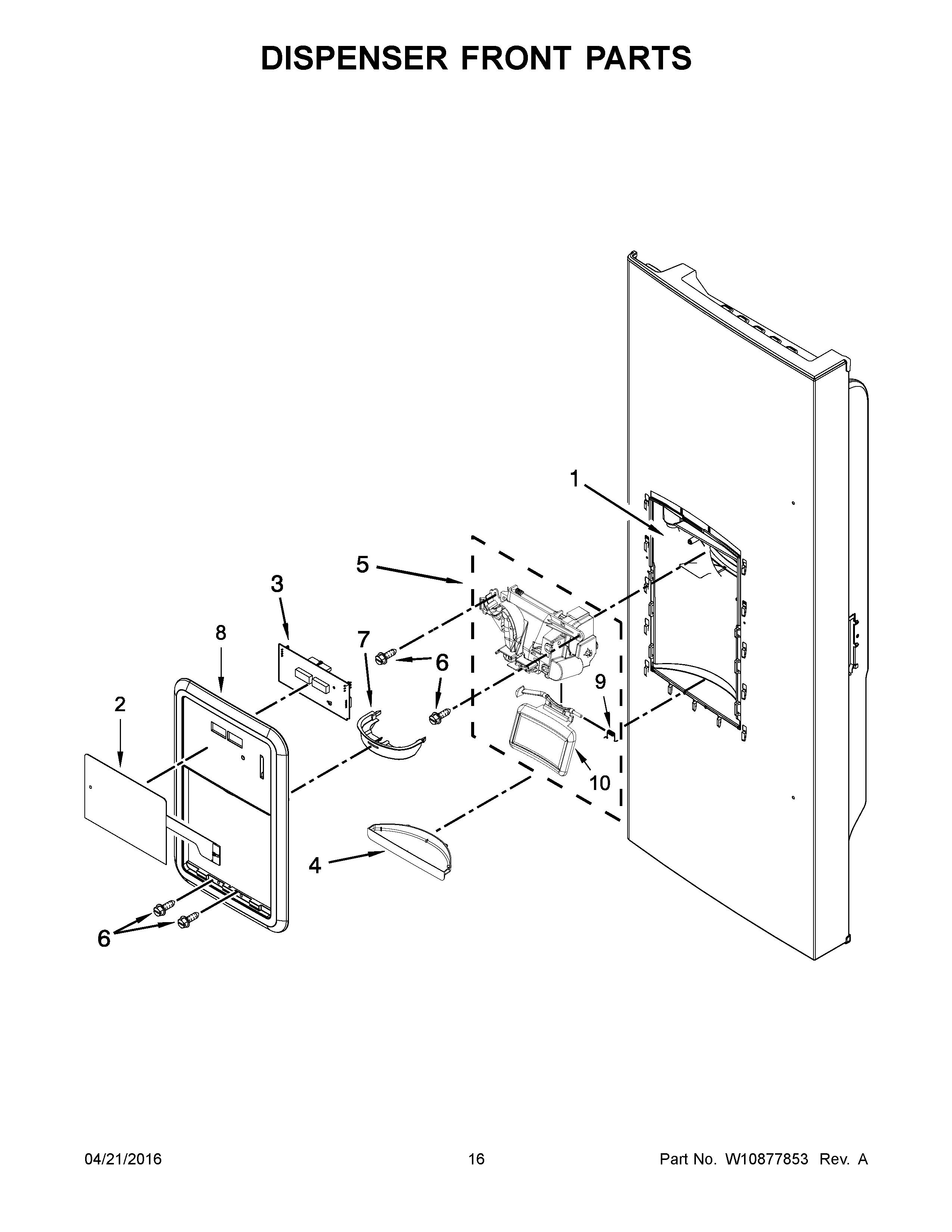

MFI2269FRH00 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2A	KEYBOARD (BLACK)
2	KEYBOARD (WHITE)
2B	KEYBOARD (STAINLESS)
3	BOARD, DISPLAY
4A	SUMP, DISPENSER (BLACK)
4	SUMP, DISPENSER (WHITE)
4B	SUMP, DISPENSER (GREY)
5A	CHUTE, EXT/YOKE (INCLUDES SWITCH) (BLACK)
5B	CHUTE, EXT/YOKE (INCLUDES SWITCH) (GREY)
5	CHUTE, EXT/YOKE (INCLUDES SWITCH) (WHITE)
6	MAY 12990513
7	MAY 12958301
8	FACADE, DISPENSER (WHITE)
8A	FACADE, DISPENSER (BLACK)
8B	FACADE, DISPENSER (STAINLESS)
9	WP12565502 Whirlpool Refrigerator Spring
10	ASSEMBLY, YOKE (INCLUDES PAD) (WHITE)
10A	ASSEMBLY, YOKE (INCLUDES PAD) (BLACK)
10B	ASSEMBLY, YOKE (INCLUDES PAD) (STAINLESS)
