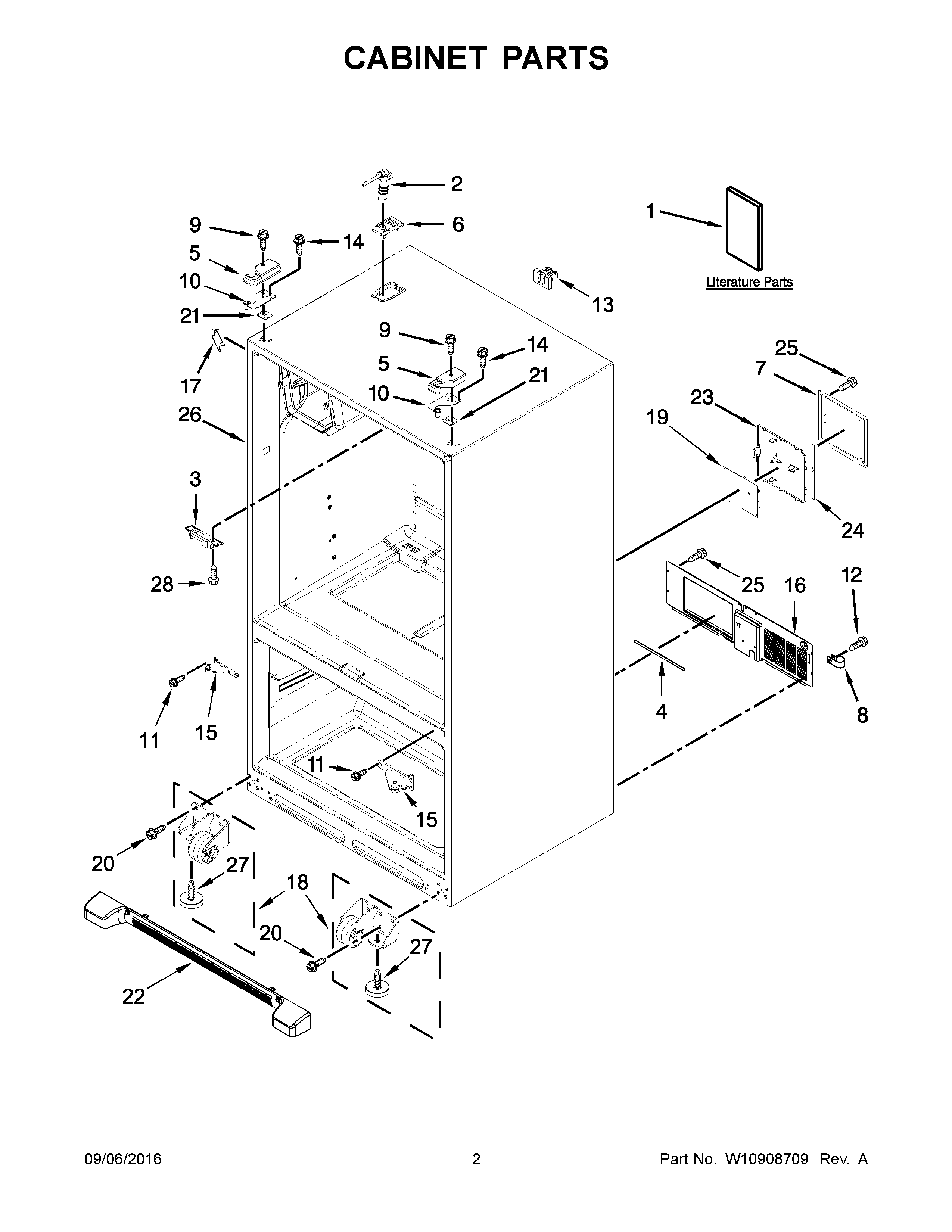

MFI2269FRH01 02 – CABINET PARTS

Products

Position	Product
1A	TECH SHEET (FRENCH)
1	TECH SHEET (ENGLISH)
1C	MAY W10847566
1B	USE AND CARE GUIDE
2	TUBE, WATER
3	Block, Pivot
4	MAY B5759655
5A	COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
5E	MAY 12962302AP
5C	MAY 12962302W
5B	COVER, TOP HINGE (LEFT) (GREY)
5D	MAY 12962302B
5	MAY W10337634
6A	MAY 12981401B
6	MAY 12981401W
6B	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10A	MAY 12963205ED
10	MAY 12963204ED
11	MAY W10673840
12	SCREW (10)
13	MAY W10658542
14	SCREW (6)
15B	HINGE, CENTER (LT) (GREY)
15E	HINGE, CENTER (RT) (GREY)
15C	Hinge, Center (RT) (White)
15D	HINGE, CENTER (BLACK, RIGHT )
15A	HINGE, CENTER (BLACK, LEFT)
15	Hinge, Center (LT) (White)
16	MAY W10211849
17	Cover, Corner (2) (White)
17B	COVER, CORNER (GREY)
17A	COVER, CORNER (BLACK)
18A	ROLLER ASSEMBLY (RIGHT HAND)
18	ROLLER ASSEMBLY (LEFT HAND)
19	MAY W10312695
20	MAY 12990101
21A	MAY 12999502
21	MAY 12999501
22B	ASSEMBLY, GRILLE (GREY)
22	ASSEMBLY, GRILLE (WHITE)
22A	ASSEMBLY, GRILLE (BLACK)
23	MAY W10296536
24	GASKET-HV BOX
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
27	Brake, Foot
28	Screw (4)
