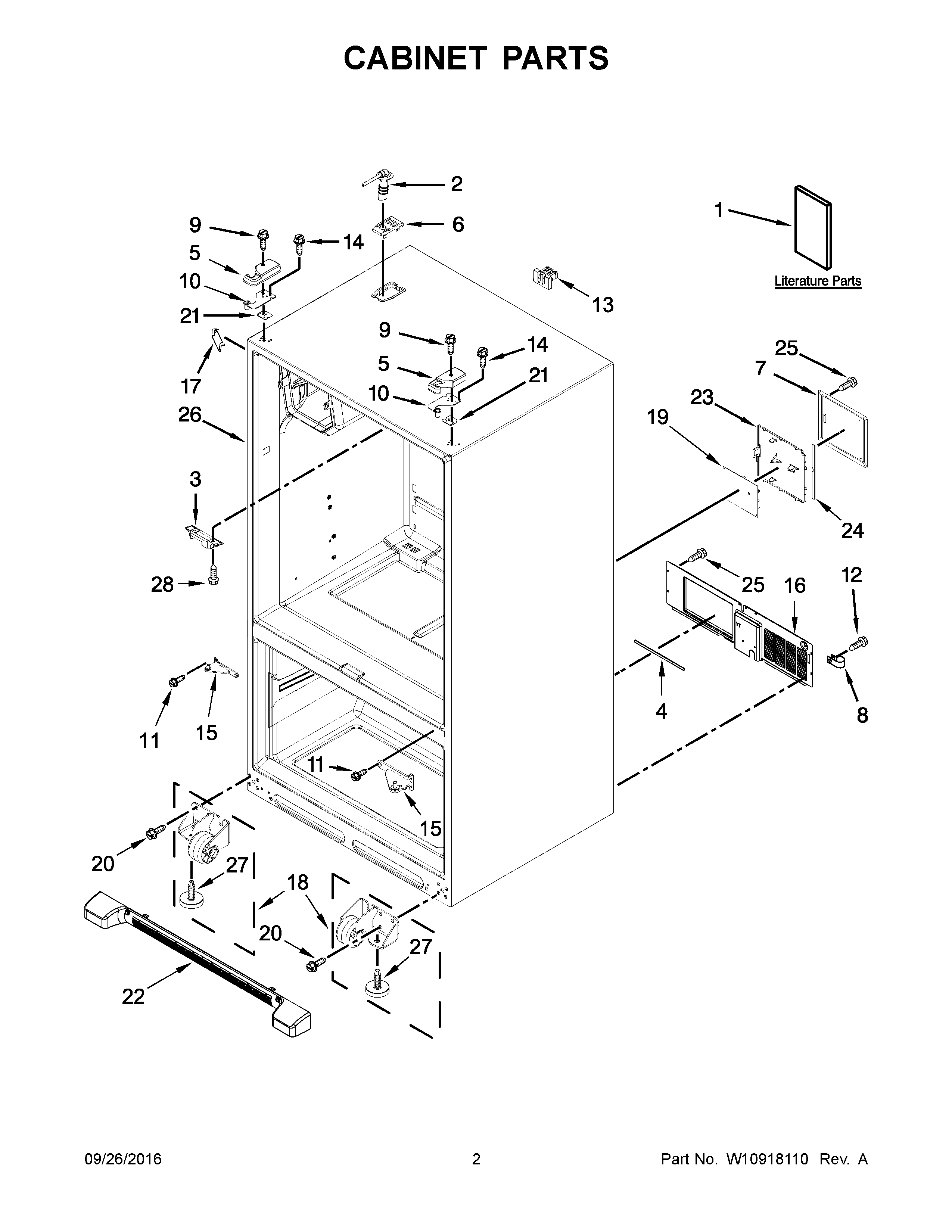

MFI2269FRW00 02 – CABINET PARTSadmin2025-04-26T09:12:14+00:00MFI2269FRW00 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1C | MAY W10847566 |
| 1B | USE AND CARE GUIDE |
| 1 | TECH SHEET (ENGLISH) |
| 1A | TECH SHEET (FRENCH) |
| 2 | TUBE, WATER |
| 3 | Block, Pivot |
| 4 | MAY B5759655 |
| 5A | COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK) |
| 5 | MAY W10337634 |
| 5C | MAY 12962302B |
| 5B | MAY 12962302W |
| 6 | MAY 12981401W |
| 6A | MAY 12981401B |
| 7 | MAY 12961602 |
| 8 | CLAMP, TUBE |
| 9 | MAY 12992602 |
| 10A | MAY 12963205ED |
| 10 | MAY 12963204ED |
| 11 | MAY W10673840 |
| 12 | SCREW (10) |
| 13 | MAY W10658542 |
| 14 | SCREW (6) |
| 15C | HINGE, CENTER RIGHT HAND (BLACK) |
| 15 | HINGE, CENTER LEFT HAND (WHITE) |
| 15B | HINGE, CENTER RIGHT HAND (WHITE) |
| 15A | HINGE, CENTER LEFT HAND (BLACK) |
| 16 | MAY W10211849 |
| 17 | Cover, Corner (2) (White) |
| 17A | COVER, CORNER (BLACK) |
| 18 | ROLLER ASSEMBLY (LEFT HAND) |
| 18A | ROLLER ASSEMBLY (RIGHT HAND) |
| 19 | MAY W10312695 |
| 20 | MAY 12990101 |
| 21A | MAY 12999502 |
| 21 | MAY 12999501 |
| 22 | ASSEMBLY, GRILLE (WHITE) |
| 22A | ASSEMBLY, GRILLE (BLACK) |
| 23 | MAY W10296536 |
| 24 | GASKET-HV BOX |
| 25 | SCREW |
| 26 | LINER (NOT A SERVICEABLE PART) |
| 27 | Brake, Foot |
| 28 | Screw (4) |
