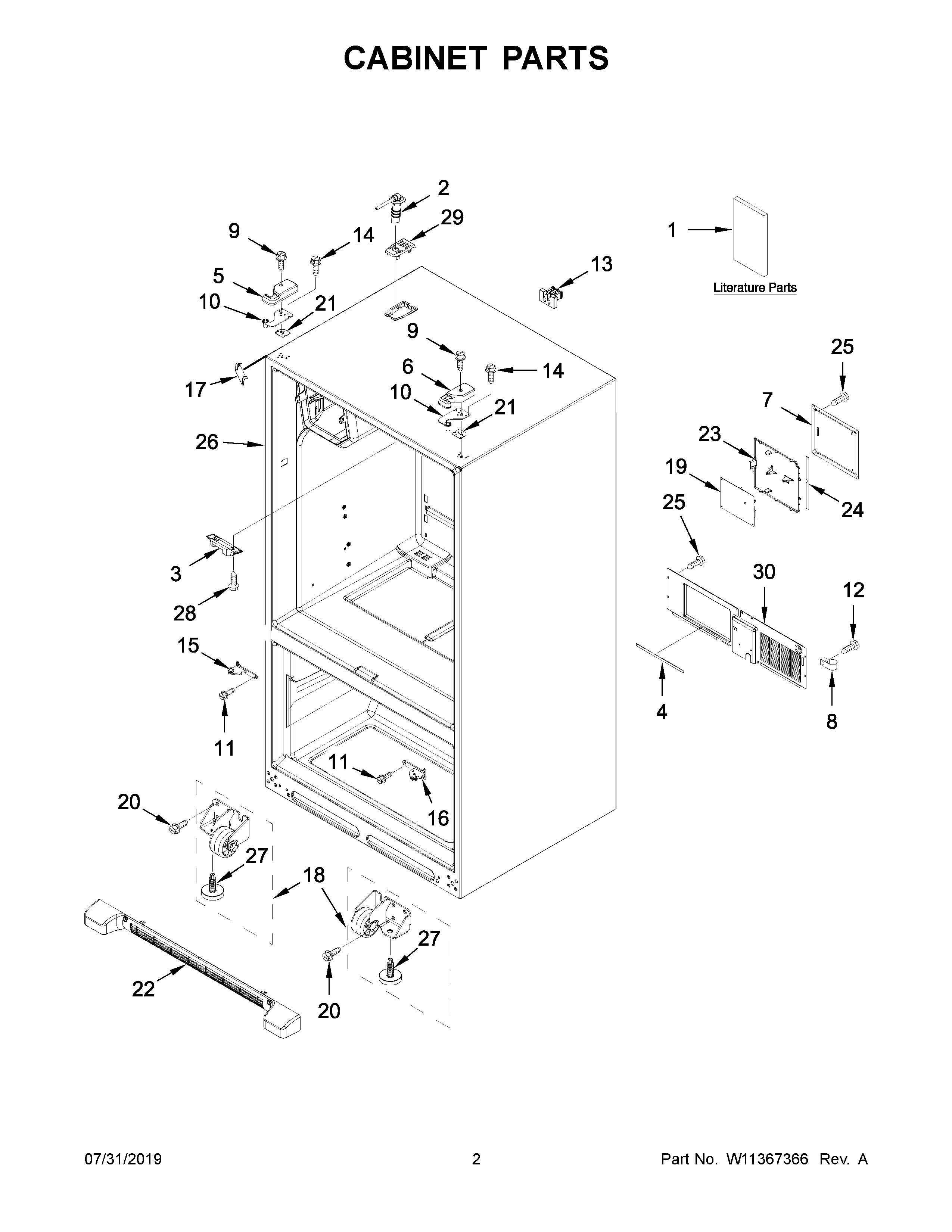

MFI2269FRW01 02 – CABINET PARTS

MFI2269FRW01 02 – CABINET PARTS

Written by

in

MFI2269FRW01 02 – CABINET PARTS

Products

PositionProduct
1TECH SHEET (ENGLISH)
1ATECH SHEET (FRENCH)
1CTECH SHEET, ENERGY GUIDE
1BTECH SHEET, USE AND CARE GUIDE
2MAY W11337212
3Block, Pivot
4MAY B5759655
5ACOVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
5MAY W10337634
6AMAY 12962302B
6MAY 12962302W
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963204ED
10AMAY 12963205ED
11MAY W10673840
12SCREW (10)
13MAY W10658542
14SCREW (6)
15AHINGE, CENTER LEFT HAND (BLACK)
15HINGE, CENTER LEFT HAND (WHITE)
16HINGE, CENTER RIGHT HAND (WHITE)
16AHINGE, CENTER RIGHT HAND (BLACK)
17Cover, Corner (2) (White)
17ACOVER, CORNER (BLACK)
18ROLLER ASSEMBLY (LEFT HAND)
18AROLLER ASSEMBLY (RIGHT HAND)
19MAY W10312695
20MAY W10709365
21AMAY 12999502
21MAY 12999501
22AASSEMBLY, GRILLE (BLACK)
22ASSEMBLY, GRILLE (WHITE)
23MAY W10296536
24GASKET-HV BOX
25SCREW
26LINER (NOT A SERVICEABLE PART)
27Brake, Foot
28SCREW
29AMAY 12981401B
29MAY 12981401W
30MAY W10211849
