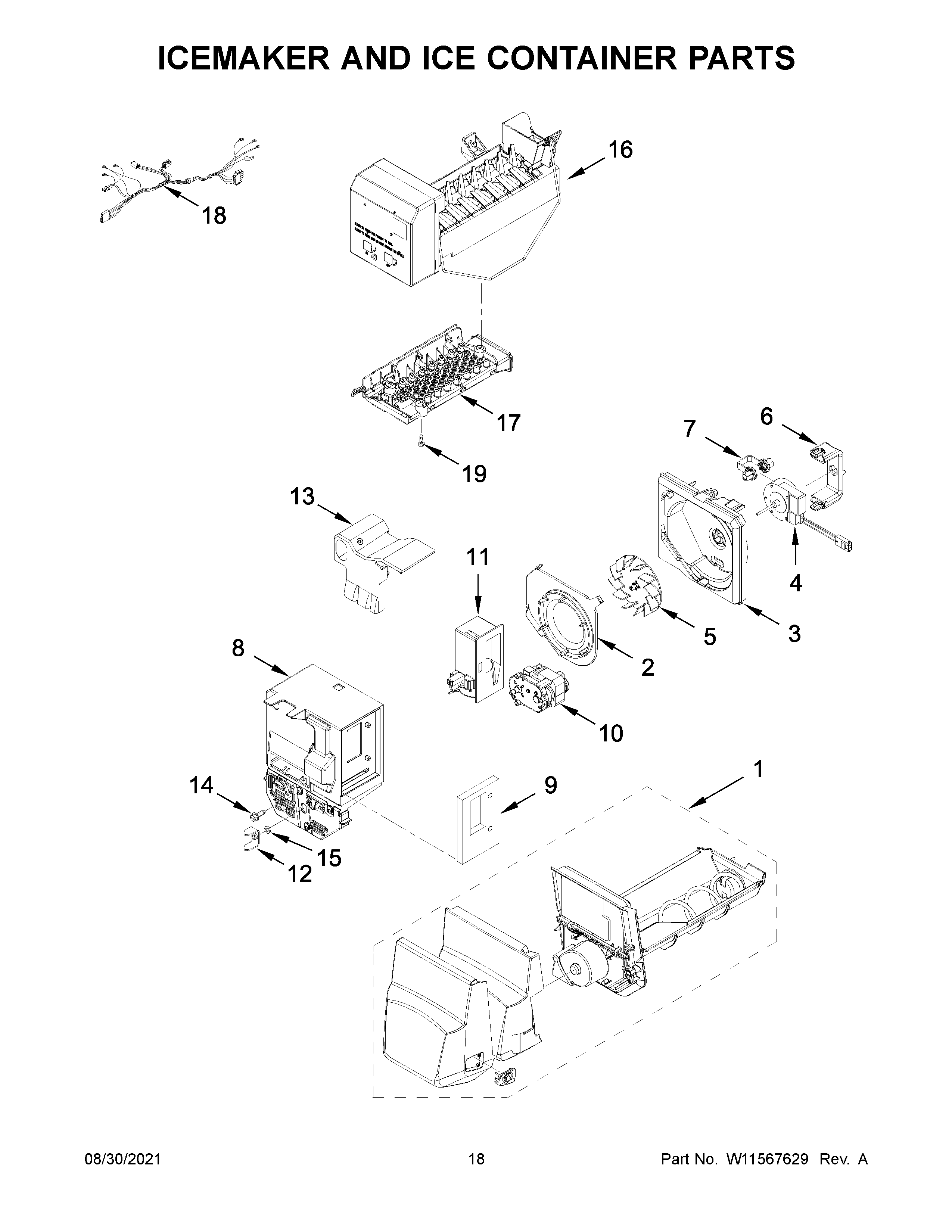

MFI2269FRW05 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

PositionProduct
1WPW10324089 Whirlpool Refrigerator Ice Bin
2W10121282 Whirlpool Refrigerator Insert
3W10121281 Whirlpool Refrigerator Shroud
4WPW10162697 Whirlpool Refrigerator Motor
5WPW10123444K Whirlpool Refrigerator Wheel
6W10165970 Whirlpool Refrigerator Clip
7GROMMET, FAN MOTOR
8W10356556 Whirlpool Refrigerator Divider
9WP67006341 Whirlpool Refrigerator Gasket
10W11671282 Whirlpool Refrigerator Ice Auger Motor
11WPW10127427 Whirlpool Refrigerator Control
12WP63052-2 Whirlpool Refrigerator Impeller
13W11676504 Whirlpool Insert Assembly
1467006425 Whirlpool Refrigerator Screw
15W11378860 Whirlpool Refrigerator Spacer
16ICEMAKER
17W11548539 Whirlpool Air Baffle
18HARNESS, ICE MAKER (INCLUDES THERMISTOR)
