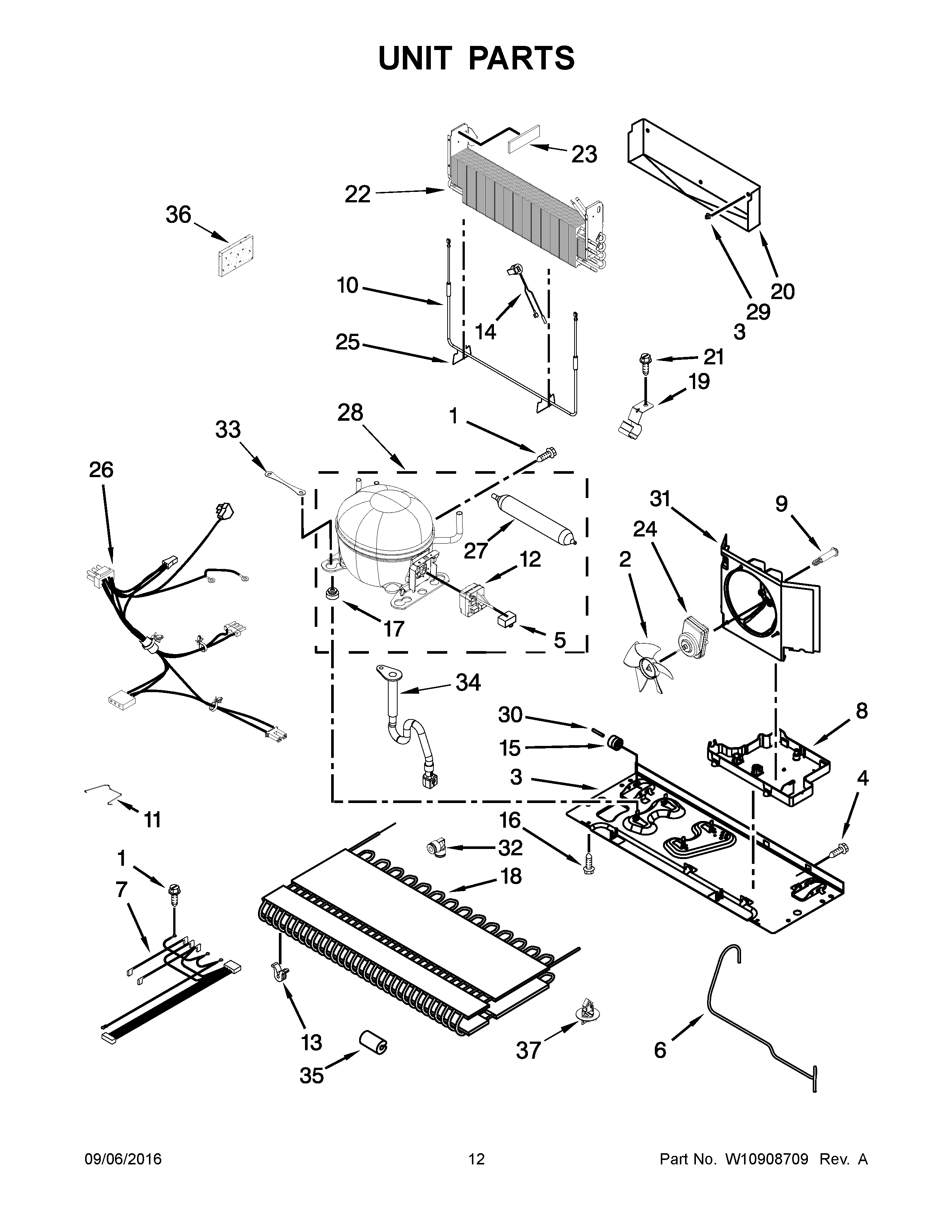

MFI2269FRZ01 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8``)
NI	VALVE, ACCESS (1/4``)
NI	MAY 876764
NI	Valve, Access (1/2``)
NI	Valve, Access (5/8``)
NI	Valve, Access (3/4``)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/16``)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480110
4	SCREW (10)
5	MAY W10350564
6	TUBE, DISCHARGE
7	MAY W10257095
8	MAY W10655367
9	MAY W10622701
10	MAY 12729128
11	MAY W10216075
12	DEVICE, START
13	GROMMET, COND (4)
14	MAY 12639311SP
15	Roller (2)
16	MAY 12992101
17	GROMMET, COMPRESSOR
18	MAY W10346420
19	MAY W10281329
20	MAY W10292802
21	MAY 12990701
22	EVAPORATOR
23	Gasket, Bottom
24	MAY W10609117
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	COMPRESSOR
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	CONNECTOR, WATER
33	MAY W10236396
34	EXTENSION, DRAIN TUBE
35	GROMMET, CONDENSER
36	SEALER, INSULATION
37	MAY W10815863
