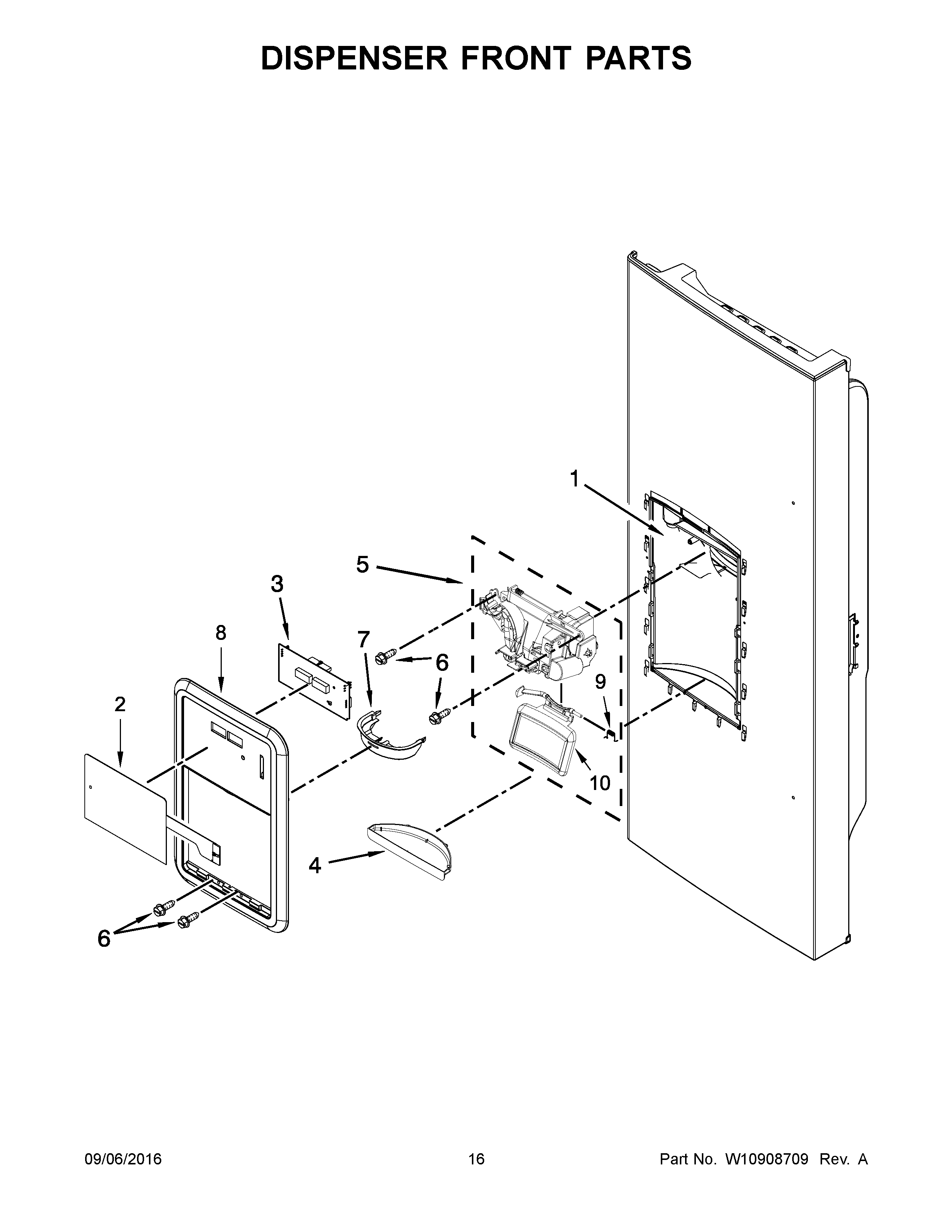

MFI2269FRZ01 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2AKEYBOARD (BLACK)
2KEYBOARD (WHITE)
2BKEYBOARD (STAINLESS)
3BOARD, DISPLAY
4ASUMP, DISPENSER (BLACK)
4SUMP, DISPENSER (WHITE)
4BSUMP, DISPENSER (GREY)
5ACHUTE, EXT/YOKE (INCLUDES SWITCH) (BLACK)
5BCHUTE, EXT/YOKE (INCLUDES SWITCH) (GREY)
5CHUTE, EXT/YOKE (INCLUDES SWITCH) (WHITE)
6MAY 12990513
7MAY 12958301
8FACADE, DISPENSER (WHITE)
8AFACADE, DISPENSER (BLACK)
8BFACADE, DISPENSER (STAINLESS)
9WP12565502 Whirlpool Refrigerator Spring
10ASSEMBLY, YOKE (INCLUDES PAD) (WHITE)
10AASSEMBLY, YOKE (INCLUDES PAD) (BLACK)
10BASSEMBLY, YOKE (INCLUDES PAD) (STAINLESS)
