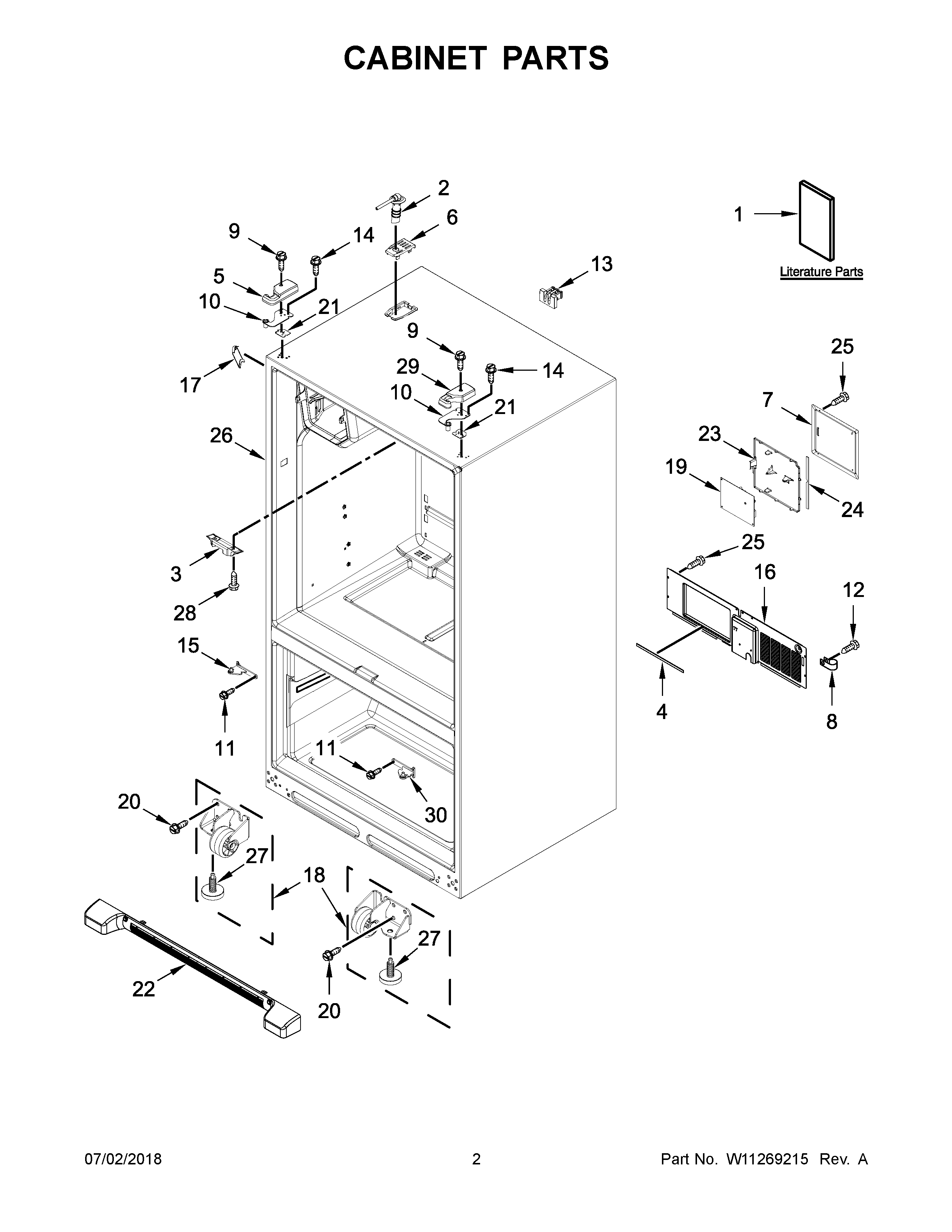

MFI2269FRZ03 02 – CABINET PARTS

MFI2269FRZ03 02 – CABINET PARTS

Written by

in

MFI2269FRZ03 02 – CABINET PARTS

Products

PositionProduct
1CENERGY GUIDE
1TECH SHEET (ENGLISH)
1BUSE AND CARE GUIDE
1ATECH SHEET (FRENCH)
2TUBE, WATER
3Block, Pivot
4MAY B5759655
5COVER, TOP HINGE (LEFT) (GREY)
6MAY 12981401AP
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963204ED
10AMAY 12963205ED
11MAY W10673840
12SCREW (10)
13MAY W10658542
14SCREW (6)
15HINGE, CENTER LEFT HAND (GREY)
16MAY W10211849
17COVER, CORNER (GREY)
18ROLLER ASSEMBLY (LEFT HAND)
18AROLLER ASSEMBLY (RIGHT HAND)
19MAY W10312695
20MAY W10709365
21AMAY 12999502
21MAY 12999501
22ASSEMBLY, GRILLE (GREY)
23MAY W10296536
24GASKET-HV BOX
25SCREW
26LINER (NOT A SERVICEABLE PART)
27Brake, Foot
28SCREW
29MAY 12962302AP
30HINGE, CENTER RIGHT HAND (GREY)
