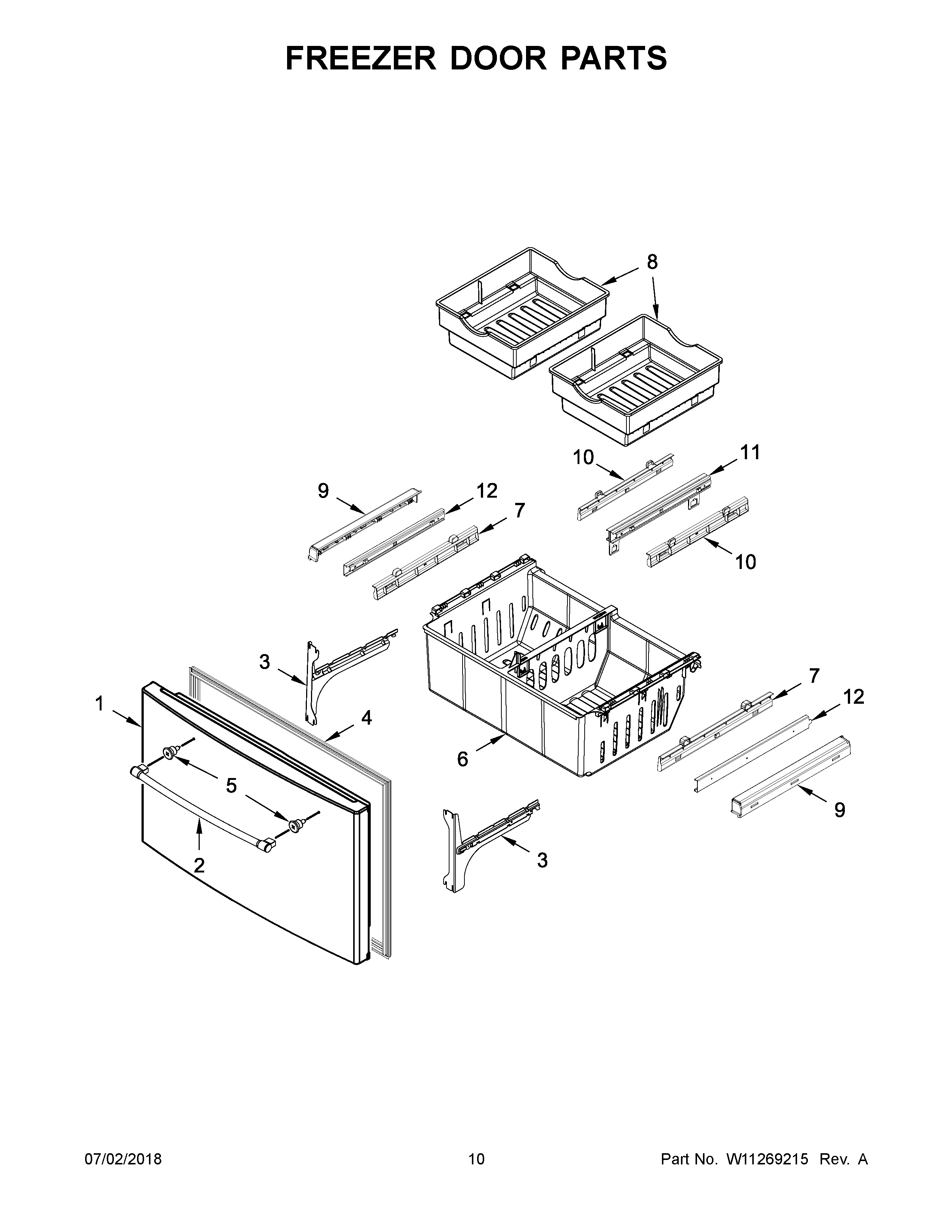

MFI2269FRZ03 06 – FREEZER DOOR PARTS

MFI2269FRZ03 06 – FREEZER DOOR PARTS

Written by

in

MFI2269FRZ03 06 – FREEZER DOOR PARTS

Products

PositionProduct
1DOOR, FREEZER (STAINLESS)
2MAY W10840878
3MAY W10330991
3AMAY W10330993
4GASKET, DOOR (GREY)
5MAY W10460893
6BIN, LOWER
7MAY 12925403SP
8MAY 12924903
8ABIN, UPPER (RIGHT HAND)
9RETAINER, GLIDE (LEFT HAND)
9ARETAINER, GLIDE (RIGHT HAND)
10ADAPTER, BIN (CENTER)
11BRACKET AND GLIDE ASSEMBLY
12MAY W10235367
