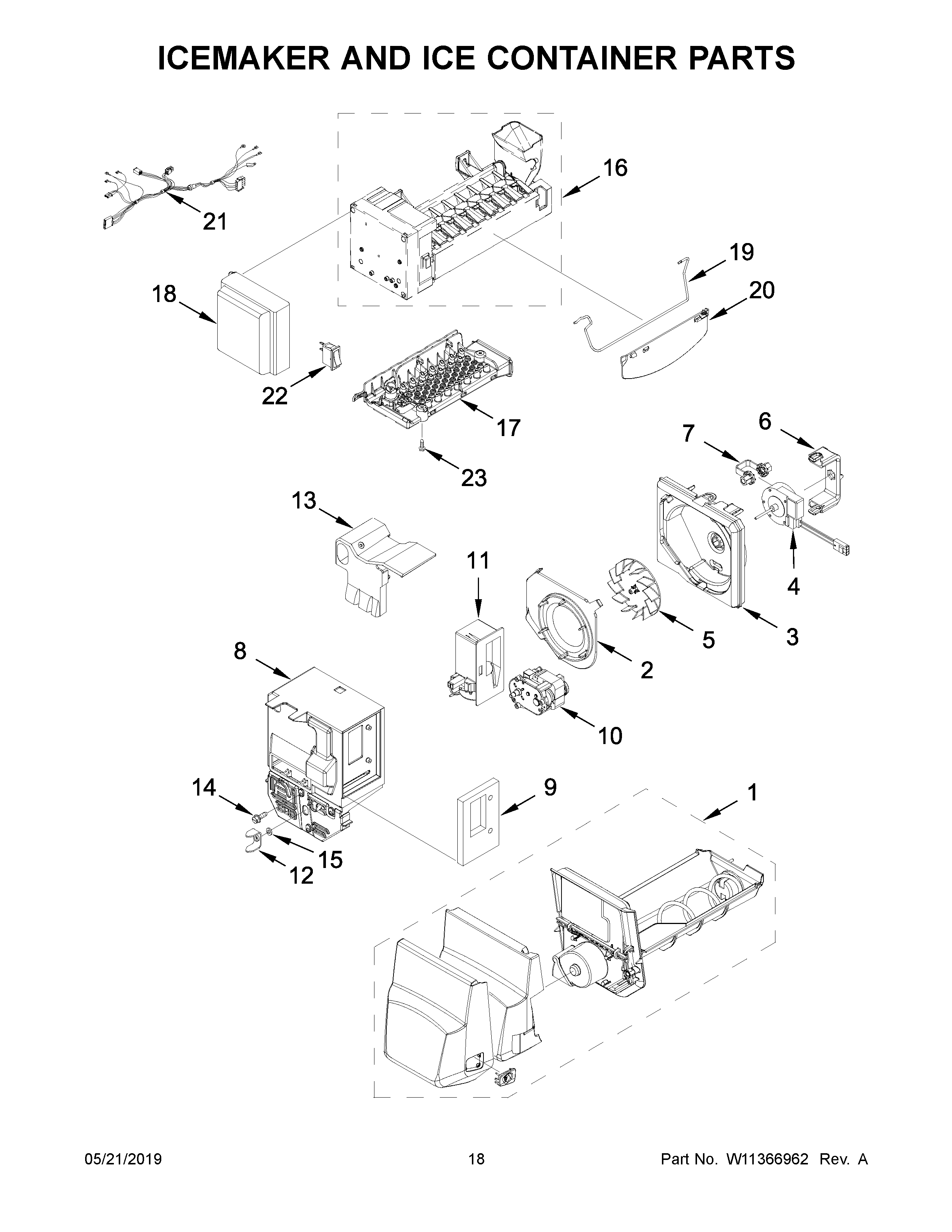

MFI2269FRZ04 10 – ICEMAKER AND ICE CONTAINER PARTS

MFI2269FRZ04 10 – ICEMAKER AND ICE CONTAINER PARTS

Written by

in

MFI2269FRZ04 10 – ICEMAKER AND ICE CONTAINER PARTS

Products

Position	Product
1	ASSEMBLY, ICE BIN
2	MAY W10121282
3	MAY W10121281
4	MAY W10162697
5	MAY W10123444
6	MAY 12956603SP
7	MAY W10151687
8	DIVIDER, ICE BOX
9	MAY 12920001SP
10	MAY W10317991
11	MAY W10127427
12	YOKE, ICE (DISPENSER)
13	MAY W10118612
14	SCREW (10)
15	WASHER
16	MAY W10300024
17	IMPINGER ASSY.
18	MAY W10121444
19	ARM, SHUTOFF
20	MAY W10351019
21	MAY W11254854
22	MAY 2313326
23	MAY 12990511K
