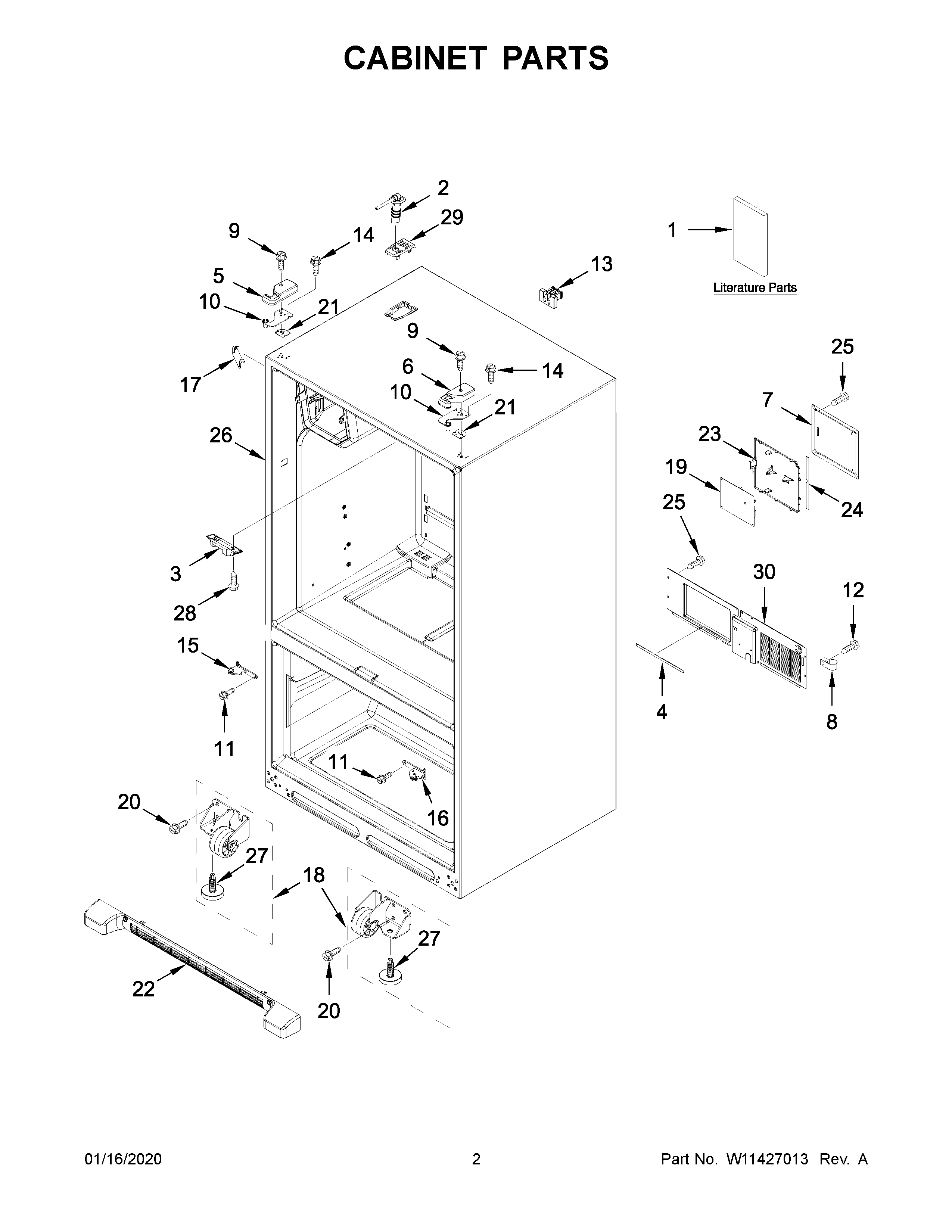

MFI2269FRZ05 02 – CABINET PARTS

MFI2269FRZ05 02 – CABINET PARTS

Written by

in

MFI2269FRZ05 02 – CABINET PARTS

Products

PositionProduct
1BTECH SHEET, USE AND CARE GUIDE
1ATECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1CTECH SHEET, ENERGY GUIDE
2MAY W11337212
3Block, Pivot
4MAY B5759655
5COVER, TOP HINGE (LEFT) (GREY)
6MAY 12962302AP
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963204ED
10AMAY 12963205ED
11MAY W10673840
12SCREW (10)
13MAY W10658542
14SCREW (6)
15HINGE, CENTER LEFT HAND (GREY)
16HINGE, CENTER RIGHT HAND (GREY)
17COVER, CORNER (GREY)
18AROLLER ASSEMBLY (RIGHT HAND)
18ROLLER ASSEMBLY (LEFT HAND)
19MAY W10312695
20MAY W10709365
21MAY 12999501
21AMAY 12999502
22ASSEMBLY, GRILLE (GREY)
23MAY W10296536
24GASKET-HV BOX
25SCREW
26LINER (NOT A SERVICEABLE PART)
27Brake, Foot
28SCREW
29MAY 12981401AP
30MAY W10211849
