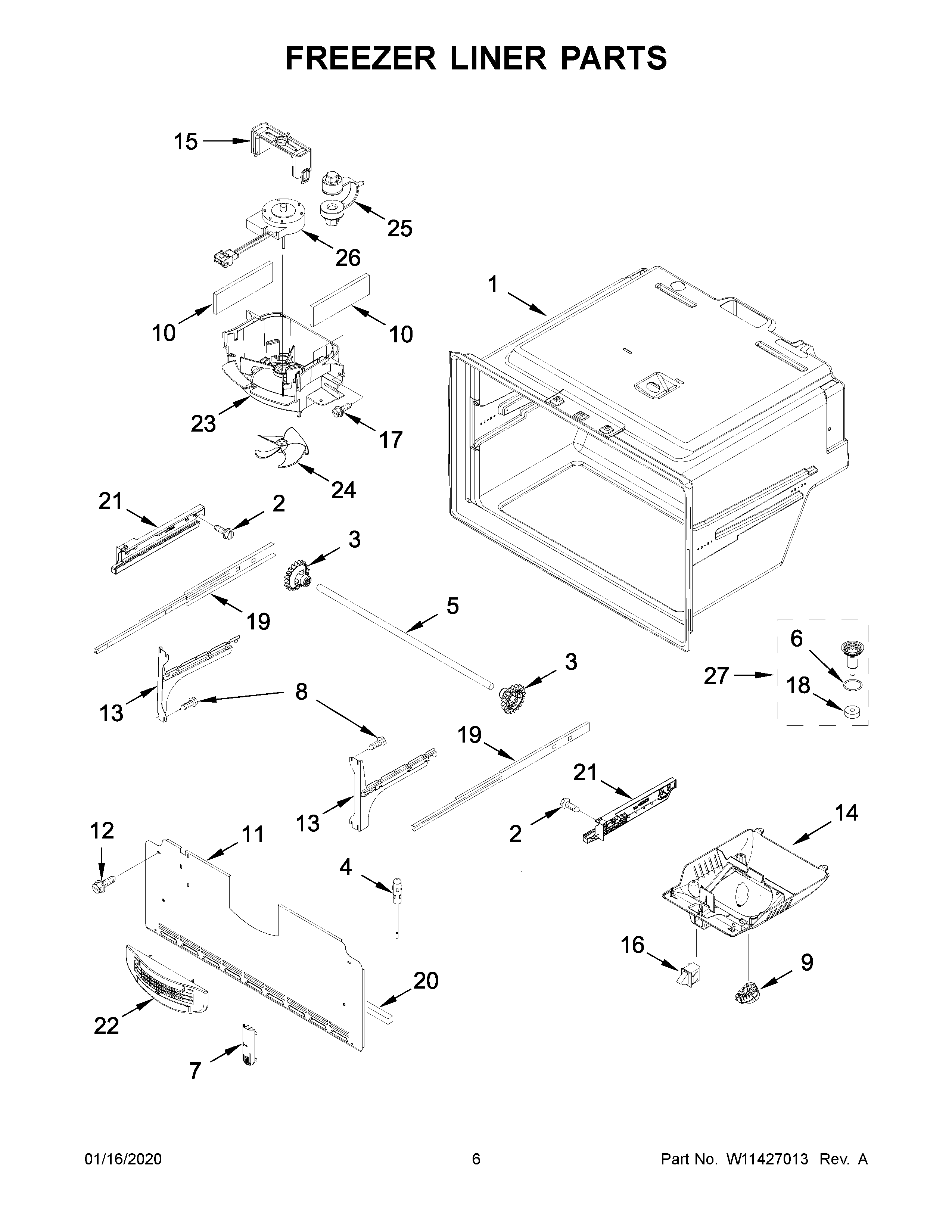

MFI2269FRZ05 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Screw (6)
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	THERMISTOR
5	SHAFT, RACK
6	MAY M0500703
7	MAY 12815301
8	Screw (8)
9	MAY W11251749
10	Gasket, Bottom
11	COVER, EVAPORATOR
12	SCREW (10)
13	MAY W10330991
13A	MAY W10330993
14	MODULE, LIGHT
15	MAY 12956601
16	SWITCH, LIGHT
17	MAY 12990504
18	Gasket
19	SLIDE, DOOR
20	MAY A3189395
21A	MAY W10284683
21	MAY W10284682
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MAY W11178674
27	MAY W10662407
