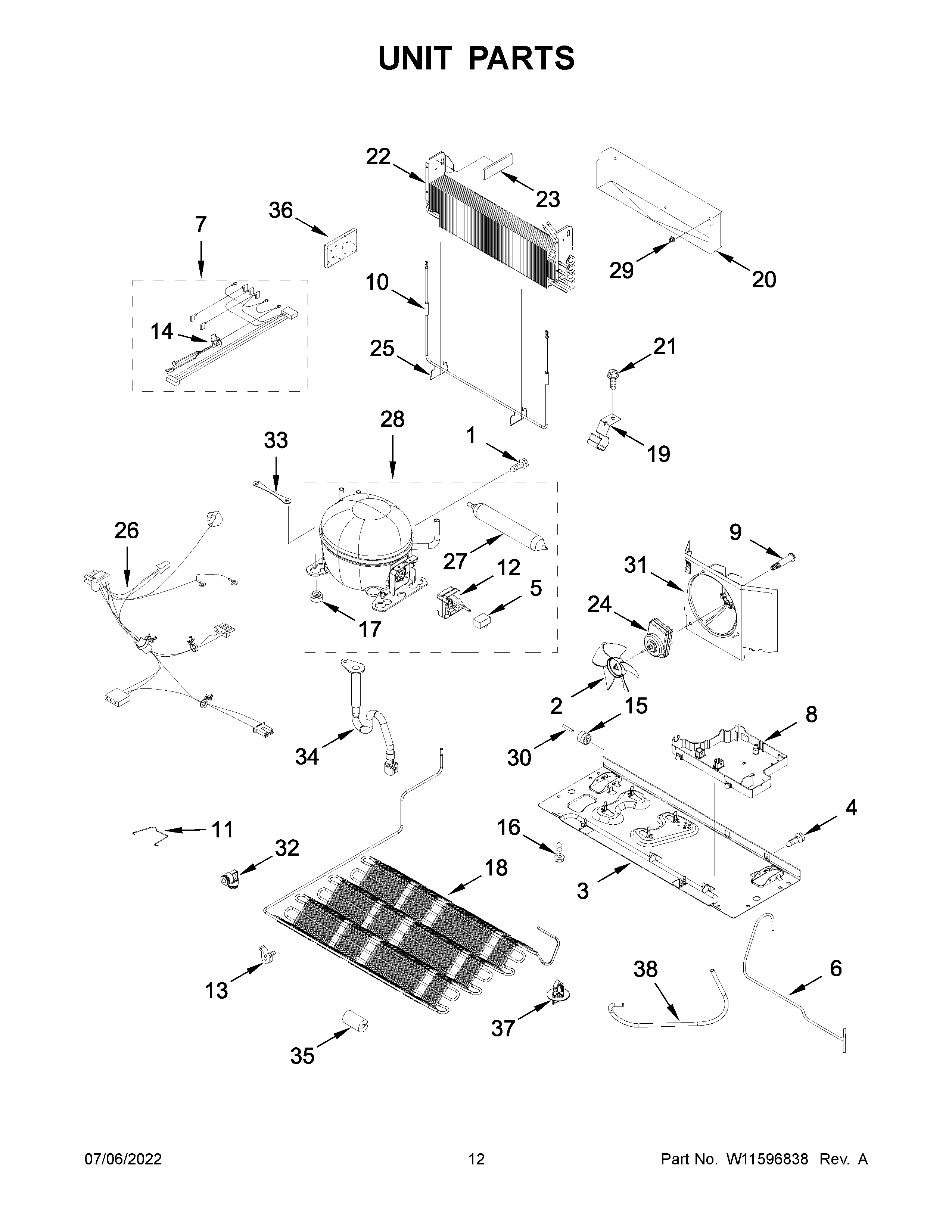

MFI2269FRZ09 07 – UNIT PARTS

MFI2269FRZ09 07 – UNIT PARTS

Written by

in

MFI2269FRZ09 07 – UNIT PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
112992301 Whirlpool Refrigerator Screw
2WP12825803 Whirlpool Refrigerator Fan Blade
3W10480110 Whirlpool Refrigerator Plate
467006425 Whirlpool Refrigerator Screw
5WPW10350564 Whirlpool Refrigerator Freezer Capacitor
6W11566600 Whirlpool Tube
7HARNESS, EVAPORATOR AND HEATER WIRE (INCLUDES THERMOSTAT)
8WPW10655367 Whirlpool Refrigerator Drip Pan
9W10829281 Whirlpool Refrigerator Screw
10W11524652 Whirlpool Refrigerator Heater
11WPL W11379613
12W11524472 Whirlpool Refrigerator Start Device
13WPW10137529 Whirlpool Refrigerator Grommet
14WPW10165425 Whirlpool Bimetal Defrost Thermostat
15WP67005149 Whirlpool Roller
16Screw
17WPW10169124 Whirlpool Refrigerator Grommet
18W11482308 Whirlpool Refrigerator Condenser
18BW11504432 Whirlpool Refrigerator Coupler
18AW11506623 Whirlpool Refrigerator Coupler
19W10281329 Whirlpool Clamp
20TRAY, DRIP
21WP33001882 Whirlpool Screw
22EVAPORATOR (ALSO ORDER THE FOLLOWING LOKRING PARTS)
22BW11504415 Whirlpool Refrigerator Coupler
23W11451451 Whirlpool Refrigerator Gasket
24W11613295 Whirlpool Condenser Motor
25W11380964 Whirlpool Clip Assembly
26W11666013 Whirlpool Wire Harness
27BW11504447 Whirlpool Refrigerator Coupler
27AW11504445 Whirlpool Refrigerator Coupler
27W11109499 Whirlpool Refrigerator Tube
28CW11506621 Whirlpool Refrigerator Coupler
28BW11504431 Whirlpool Microwave Coupler
28COMPRESSOR
28AW11504416 Whirlpool Refrigerator Coupler
28DW11506635 Whirlpool Refrigerator Valve Coupler
29CLIP, EVAP (2)
3067006434 Whirlpool Axle Pin
31W11556315 Whirlpool Shroud
32WPW10334458 Whirlpool Refrigerator Connector
33W10236396 Whirlpool Refrigerator Strap
34W10619951 Whirlpool Drain Tube with Grommet
35W10852725 Whirlpool Refrigerator Grommet
36W11553819 Whirlpool Refrigerator Insulation
37W10815863 Whirlpool Clip
38TUBE
