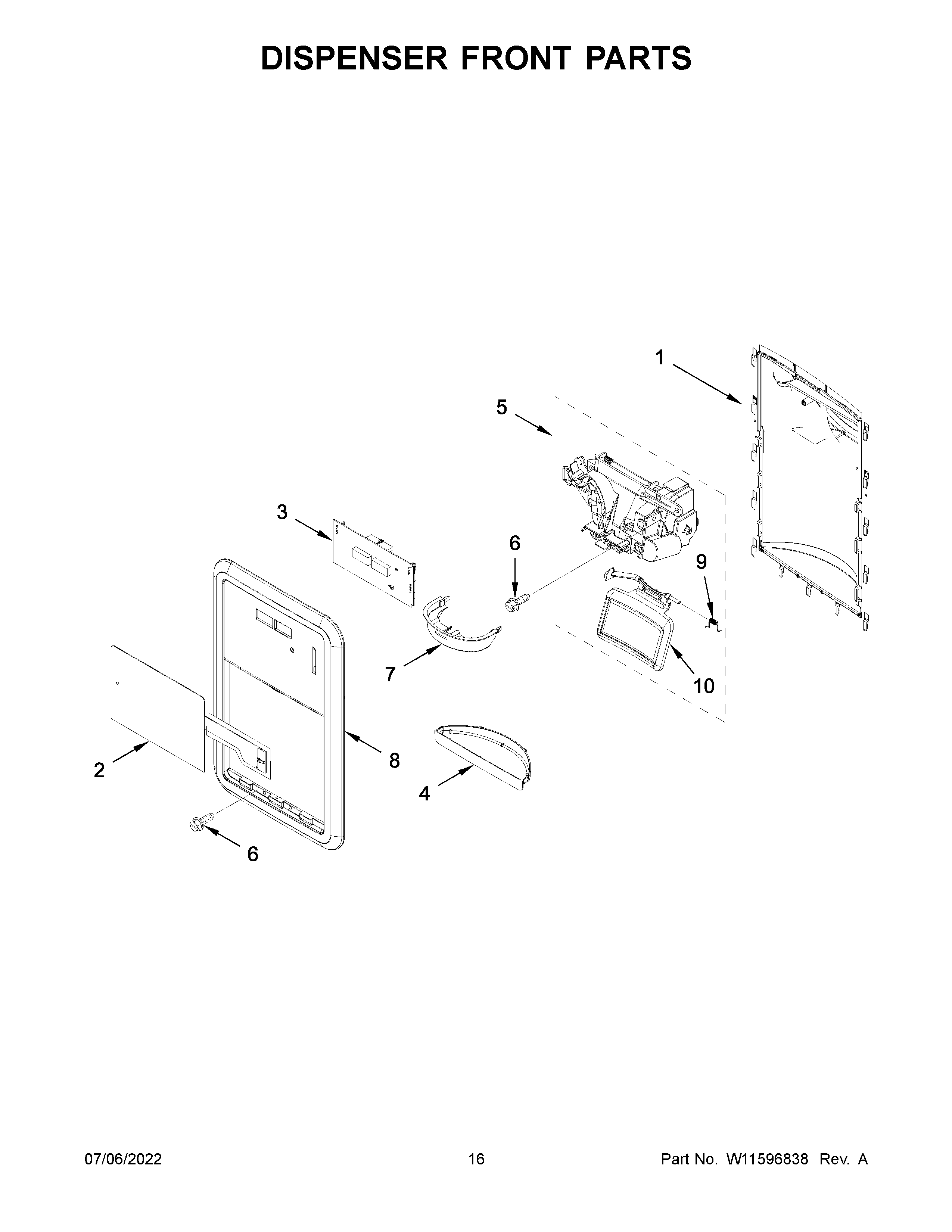

MFI2269FRZ09 09 – DISPENSER FRONT PARTS

MFI2269FRZ09 09 – DISPENSER FRONT PARTS

Written by

in

MFI2269FRZ09 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1CABINET (NOT A SERVICEABLE PART)
2W10731568 Whirlpool Refrigerator Stainless Steel Overlay
3W10799818 Whirlpool Refrigerator Electronic Control Board
4W11167053 Whirlpool Refrigerator Drip Tray
5WP13005705 Whirlpool Refrigerator Chute
667006425 Whirlpool Refrigerator Screw
767006295 Whirlpool Refrigerator Target Ring
8WPW10310688 Whirlpool Refrigerator Cover
9WP12565502 Whirlpool Refrigerator Spring
10WPW10185233 Whirlpool Refrigerator Pad
