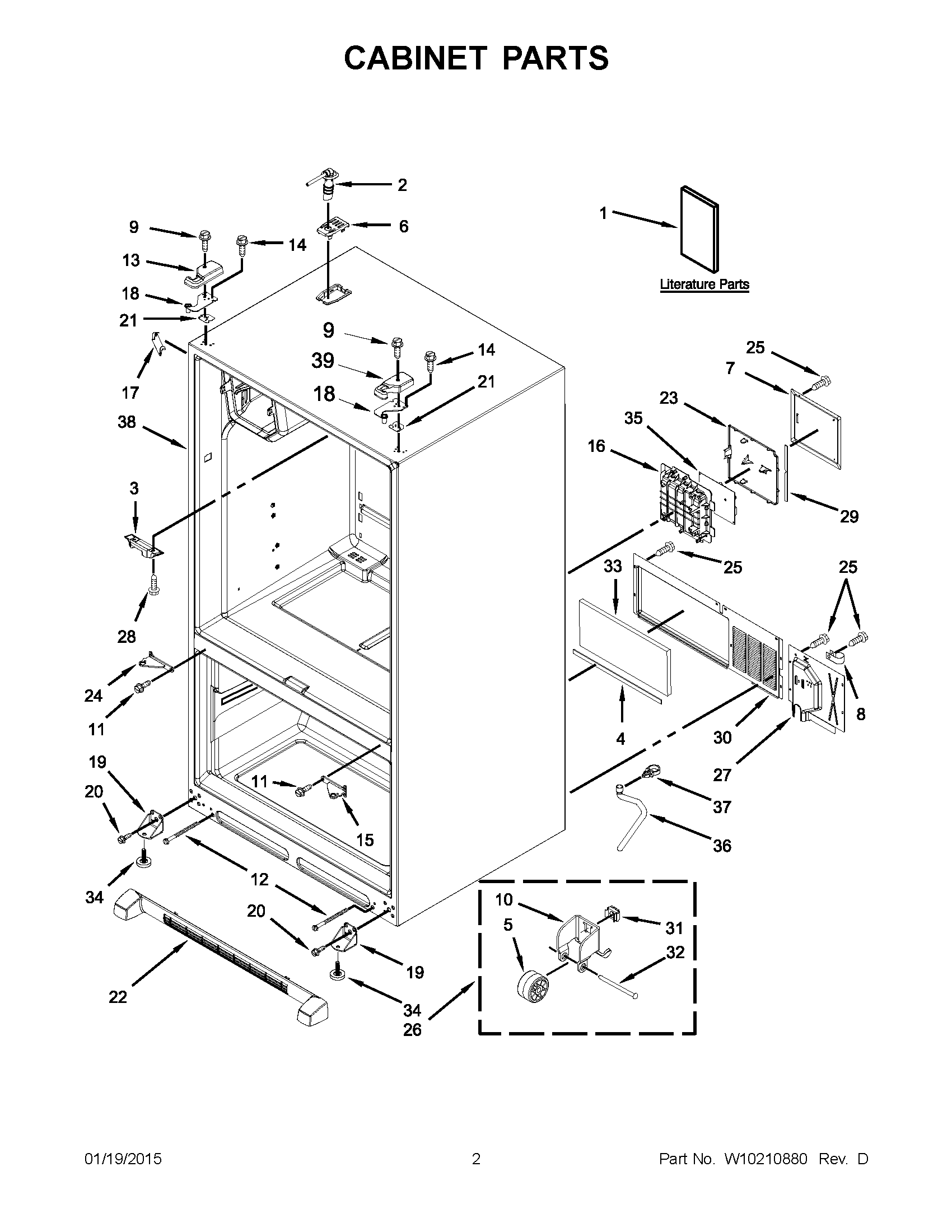

MFI2269VEA10 02 – CABINET PARTS

Products

PositionProduct
1AMAY 12828186SP
1MAY 12827970
1BMAY W10166619
2MAY W10165840
3WP67003405 Whirlpool Pivot Block
4Gasket
5WP10450603 Whirlpool Refrigerator Roller
6BCOVER, FILL TUBE (GREY)
6AMAY 67006321
6MAY 67006320
7MAY 67006427
8W10833902 Whirlpool Refrigerator Clamp
9WP8281196 Whirlpool Screw
1012456801V Whirlpool Refrigerator Bracket
11WP67006380 Whirlpool Screw
1271003131 Whirlpool Oven Screw
13BWPW10337634 Whirlpool Refrigerator Cover
13ACover, Left Hinge (Bisque)
13W10337647 Whirlpool Refrigerator Cover
13CCover, Left Hinge (Apollo Grey)
14WP489349 Whirlpool Refrigerator Screw
15AHINGE, CENTER (BLACK, RIGHT )
15MAY 67006379
16WP67006390 Whirlpool Refrigerator High Voltage Box
17BMAY 67003486
17A67003485 Whirlpool Refrigerator Corner Cover (Black)
1767003484 Whirlpool Refrigerator White Corner Cover
17CCOVER, CORNER (GREY)
18AMAY 12963205ED
18MAY 12963204ED
19Bracket, Foot
20MAY 67006564
2112999501 Whirlpool Refrigerator Hinge Shim
21A12999502 Whirlpool Refrigerator Hinge Shim
22WPW10534162 Whirlpool Refrigerator Front Grille
22CMAY 12880102AP
22BWPW10534161 Whirlpool Refrigerator Front Grille
22AMAY 67006791
2367006428 Whirlpool Refrigerator LID, HV Control
24W10918113 Whirlpool Refrigerator Door Hinge
24AHINGE, CENTER (BLACK, LEFT)
25Screw (10)
26ROLLER ASSY.(REAR)
27MAY 12701909
28SCREW
29MAY 67006429
30MAY 12575101WD
31MAY M0286708
32MAY M1205302
3367003796 Whirlpool Refrigerator Fiber Acoustic
34W11177593 Whirlpool Leveling Feet
35MAY 12920721
36MAY W10164397
37MAY W10157973
38LINER (NOT A SERVICEABLE PART)
39CCover, Right Hinge (Apollo Grey)
39ACover, Right Hinge (Bisque)
39WP67005956 Whirlpool Refrigerator Cover
39B67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
