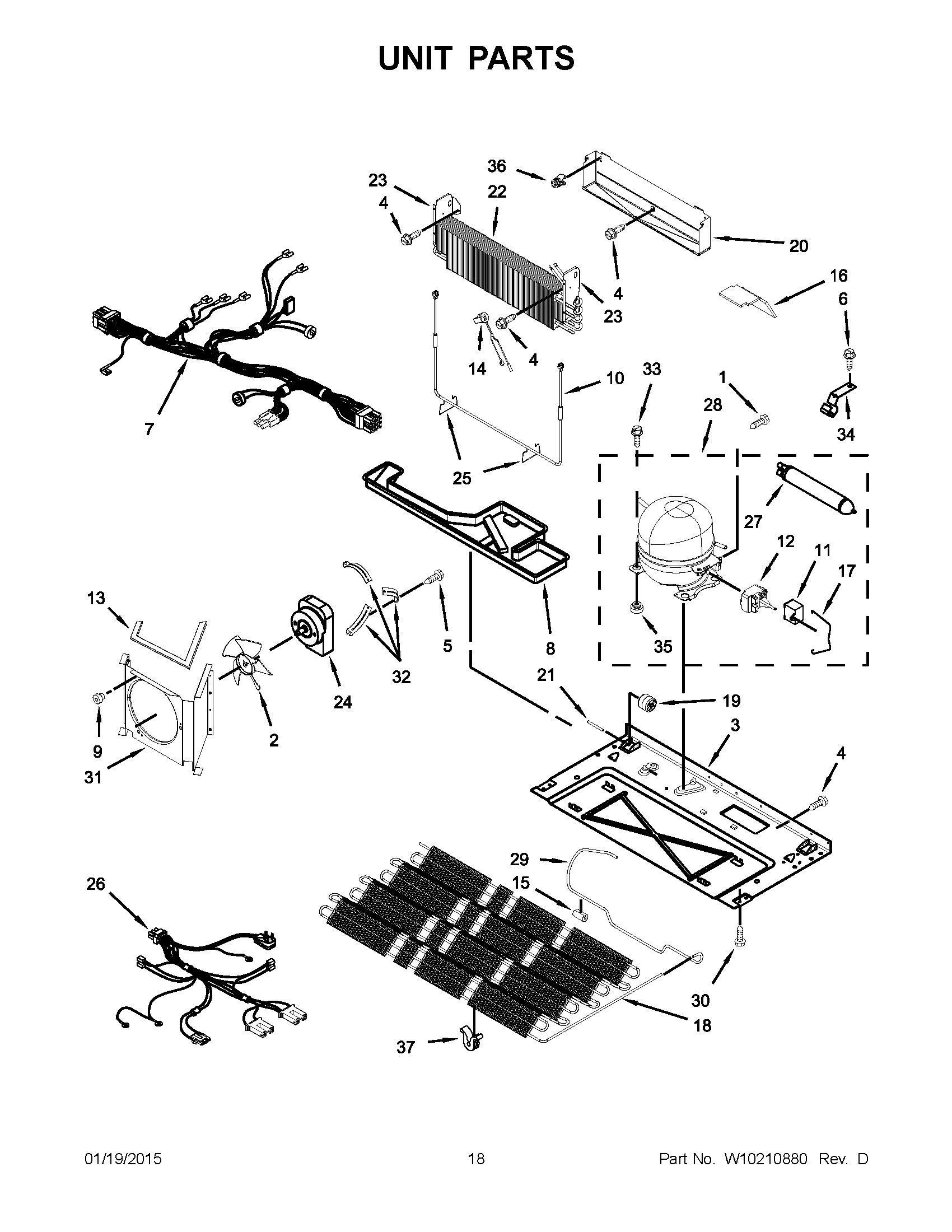

MFI2269VEA10 10 – UNIT PARTSadmin2025-04-26T09:11:23+00:00MFI2269VEA10 10 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | MAY 67006433 |
| 2 | MAY W10156818 |
| 3 | MAY 12591404 |
| 4 | Screw (10) |
| 5 | WP67004954 Whirlpool Refrigerator Screw |
| 6 | SCREW |
| 7 | Harness, Evap Heater |
| 8 | Drain Pan |
| 9 | GROMMET, BRACKET |
| 10 | MAY W10166768 |
| 11 | Capacitator (Production) |
| 12 | START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE) |
| 13 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 14 | MAY 67006387 |
| 15 | 67005680 Whirlpool Refrigerator Condenser Grommet |
| 16 | PAD-ACOUSTIC |
| 17 | MAY 2255199 |
| 18 | MAY W10135027 |
| 19 | WP67005149 Whirlpool Roller |
| 20 | TRAY, DRIP E-CT |
| 21 | 67006434 Whirlpool Axle Pin |
| 22 | MAY W10166256 |
| 23 | MAY W10162951 |
| 23A | MAY W10162962 |
| 24 | MAY 67004432 |
| 25 | W11673433 Whirlpool Clip |
| 26 | MAY 13060202 |
| 27 | Drier |
| 28 | Compressor (Includes items 11,12,17,27,29) |
| 29 | MAY W10183709 |
| 30 | Screw (4) |
| 31 | Shroud, Condenser |
| 32 | MAY 67004953 |
| 33 | MAY 67006432 |
| 34 | MAY 10547003 |
| 35 | MAY W10169124 |
| 36 | GROMMET, COND (4) |
| 37 | MAY W10117502 |
