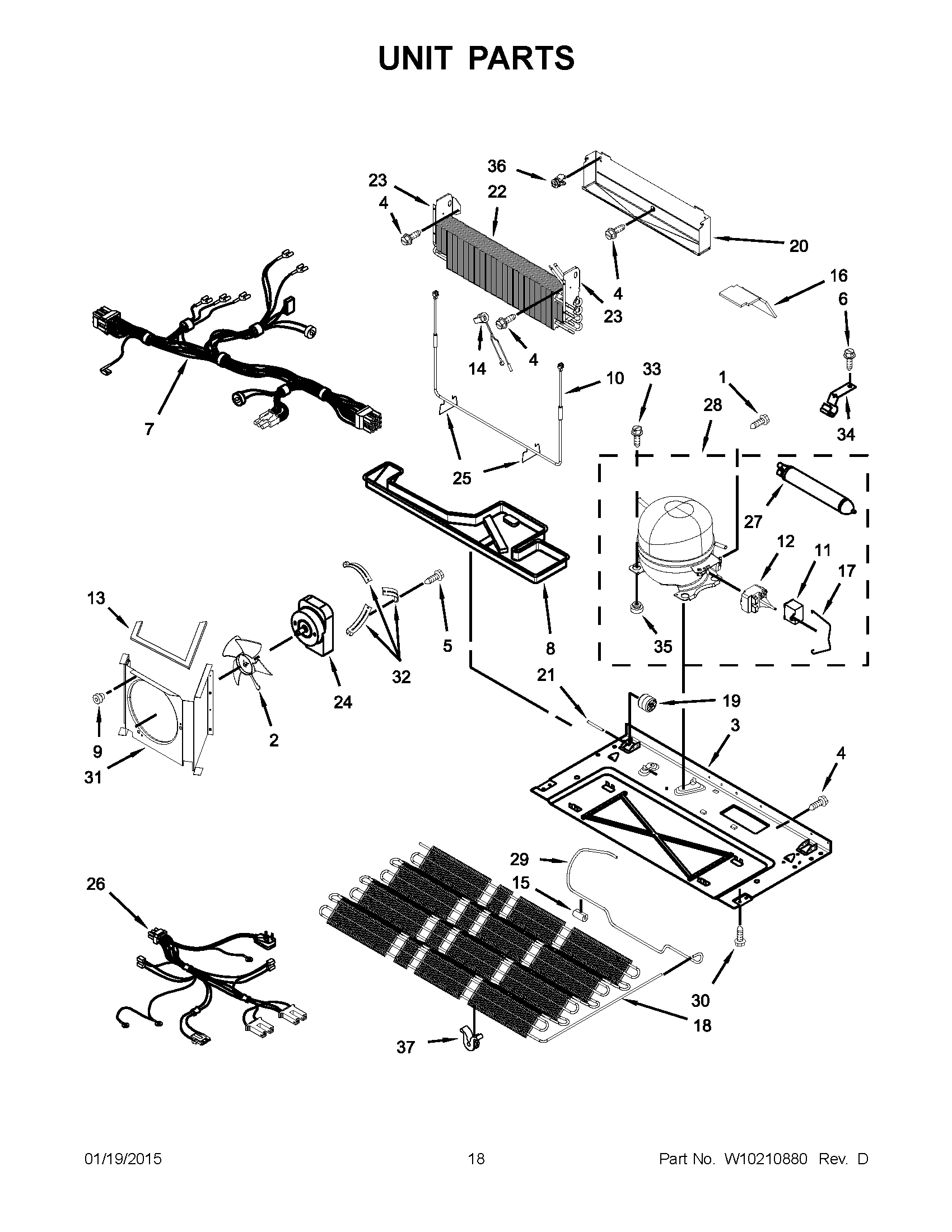

MFI2269VEB10 10 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
1	MAY 67006433
2	MAY W10156818
3	MAY 12591404
4	Screw (10)
5	WP67004954 Whirlpool Refrigerator Screw
6	SCREW
7	Harness, Evap Heater
8	Drain Pan
9	GROMMET, BRACKET
10	MAY W10166768
11	Capacitator (Production)
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (SERVICE)
13	WP854334 Whirlpool Air Conditioner Sealing Strip
14	MAY 67006387
15	67005680 Whirlpool Refrigerator Condenser Grommet
16	PAD-ACOUSTIC
17	MAY 2255199
18	MAY W10135027
19	WP67005149 Whirlpool Roller
20	TRAY, DRIP E-CT
21	67006434 Whirlpool Axle Pin
22	MAY W10166256
23	MAY W10162951
23A	MAY W10162962
24	MAY 67004432
25	W11673433 Whirlpool Clip
26	MAY 13060202
27	Drier
28	Compressor (Includes items 11,12,17,27,29)
29	MAY W10183709
30	Screw (4)
31	Shroud, Condenser
32	MAY 67004953
33	MAY 67006432
34	MAY 10547003
35	MAY W10169124
36	GROMMET, COND (4)
37	MAY W10117502
