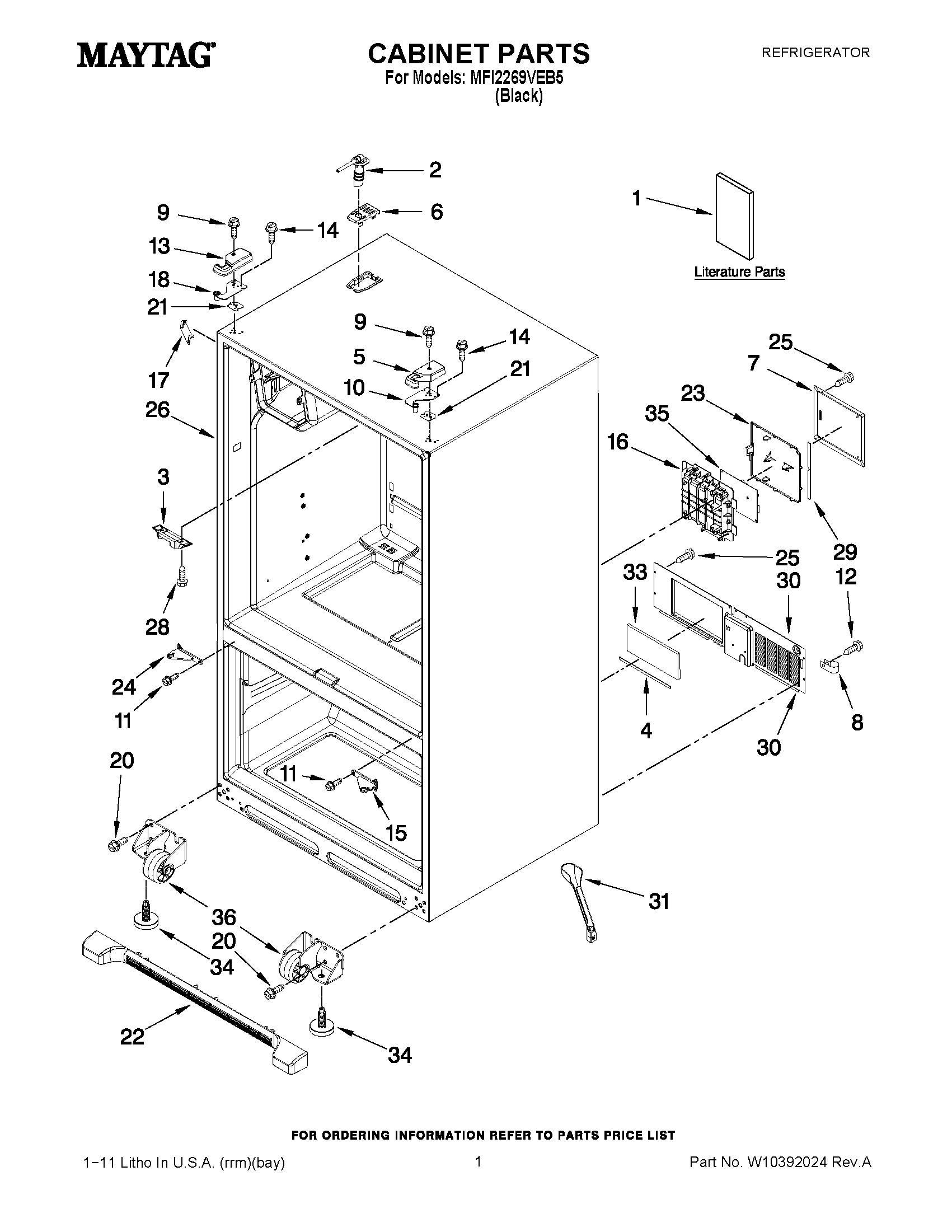

MFI2269VEB5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10308615
1	TECH SHEET (GUIDE, ENERGY)
1	TECH SHEET (USE & CARE GUIDE)
2	TUBE, WATER
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302B
6	MAY 12981401B
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301B
14	SCREW (6)
15	HINGE, CENTER (BLACK, RIGHT )
16	MAY 12957601
17	COVER, CORNER (BLACK)
18	MAY 12963204ED
20	Screw (8)
21	MAY 12999502
21	MAY 12999501
22	MAY W10236196
23	MAY 12957701
24	HINGE, CENTER (BLACK, LEFT)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211849
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY W10310240
36	ROLLER ASSY. (FRONT) (LEFT)
36	ROLLER ASSY. (FRONT) (RIGHT)
