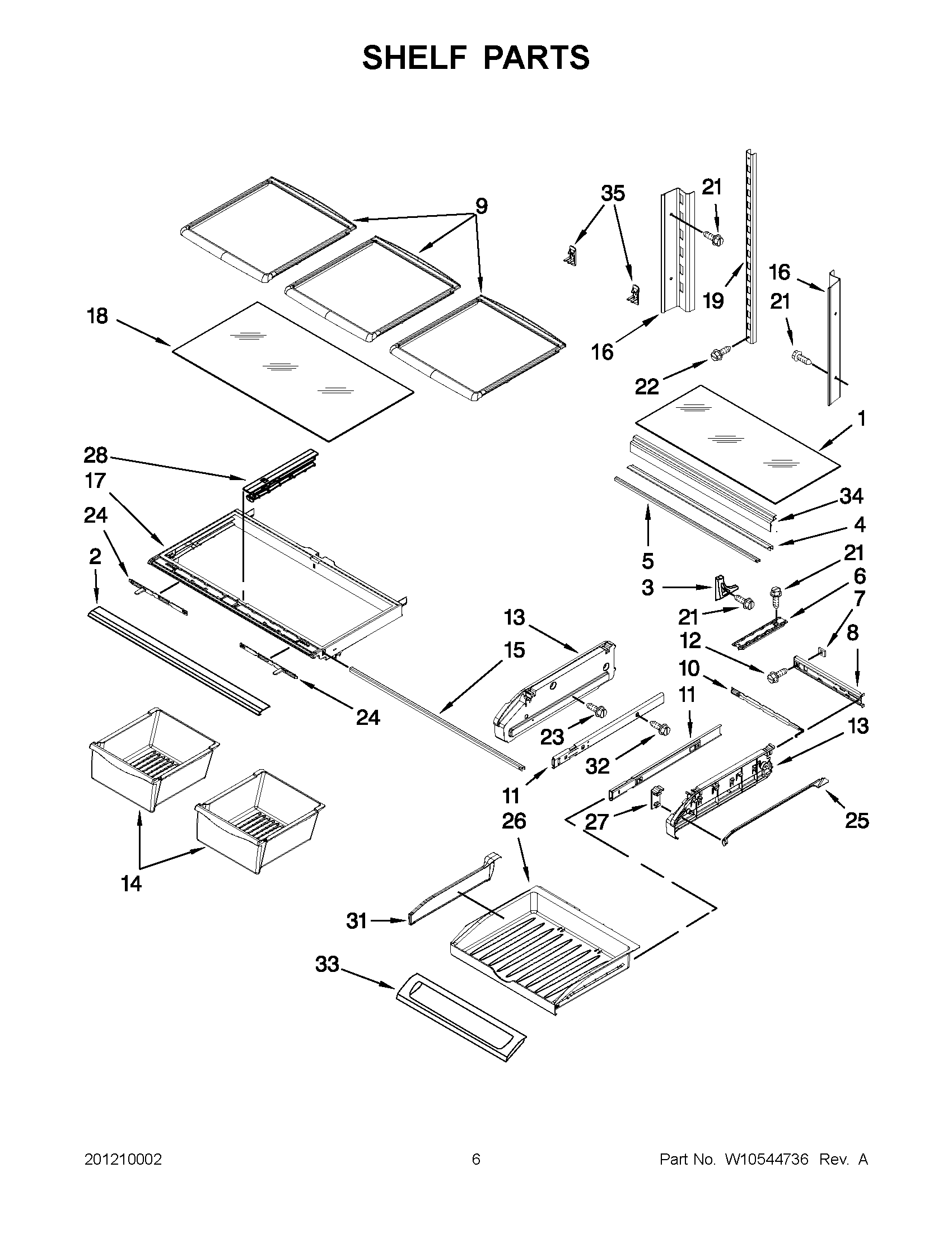

MFI2269VEB9 03 – SHELF PARTSadmin2025-04-26T09:12:59+00:00MFI2269VEB9 03 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY 12204820 |
| 2 | TRIM, CRISPER |
| 3 | SUPPORT-LEFT |
| 3 | SUPPORT-RIGHT |
| 4 | MAY 12655903 |
| 5 | MAY 12227301WD |
| 6 | TRACK, PANTRY |
| 7 | MAY 12656902 |
| 8 | MAY 13048301 |
| 9 | SHELF, GLASS |
| 10 | MAY 13048401 |
| 11 | MAY W10235370 |
| 13 | MAY 13047701 |
| 13 | MAY 13047801 |
| 14 | MAY 12530505SP |
| 15 | BRACE, CRISPER FRAME |
| 16 | MAY W10251968 |
| 16 | LADDER, SIDE RH |
| 17 | FRONT, CRISPER |
| 18 | MAY 12204822 |
| 19 | MAY W10273464 |
| 21 | MAY 12990513 |
| 23 | SCREW (2) |
| 24 | MAY 12530805SP |
| 25 | MAY 13048201 |
| 26 | MAY 13048501SP |
| 27 | KNOB, TEMP CONTROL |
| 28 | Rail, Center Crisper |
| 31 | MAY 13048601SP |
| 32 | MAY 12990504 |
| 33 | MAY 12656820 |
| 34 | MAY 13048801 |
| 35 | HOOK, LADDER (LEFT HAND) |
| 35 | HOOK, LADDER (RIGHT HAND) |
