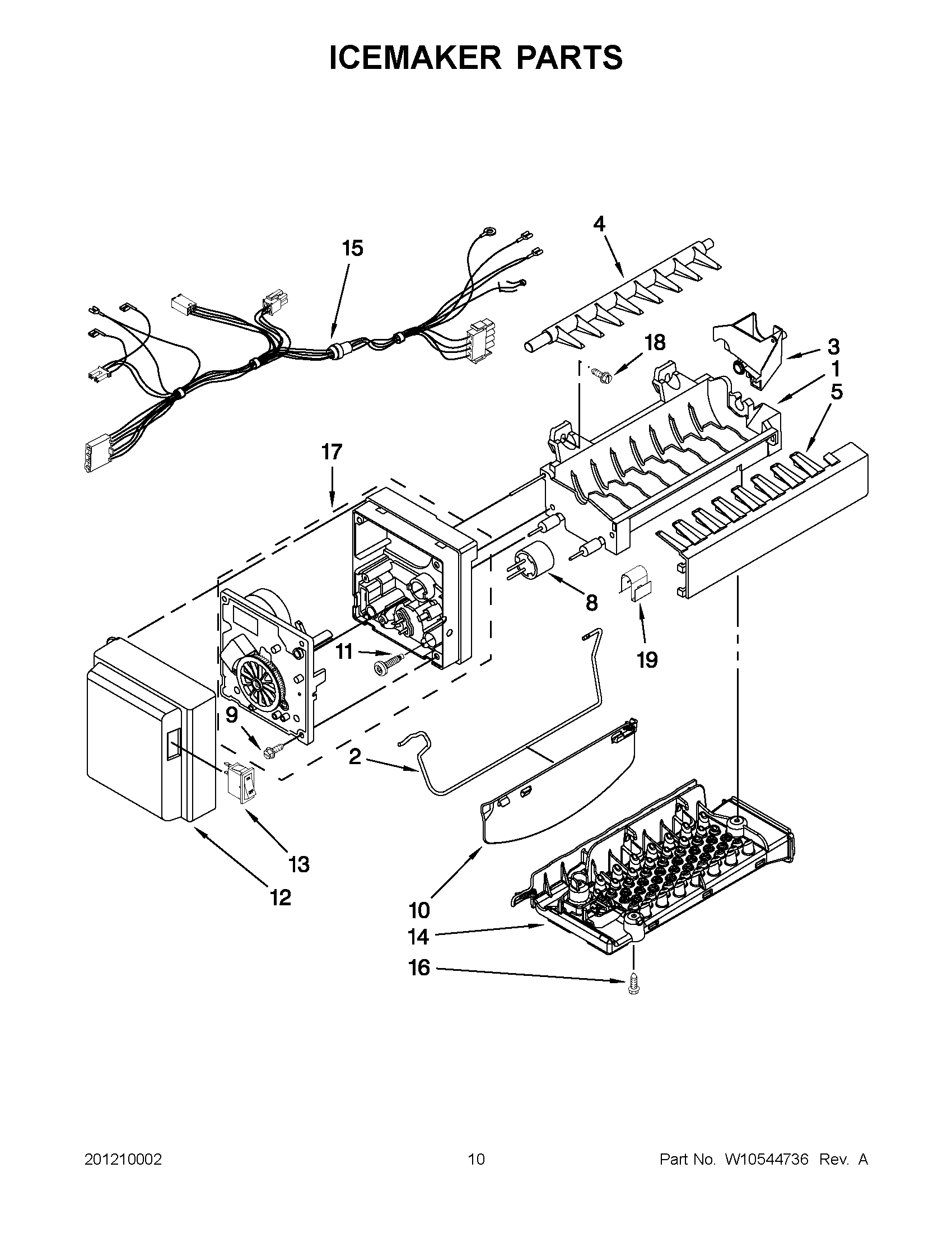

MFI2269VEB9 05 – ICEMAKER PARTS

Products

PositionProduct
1ASSEMBLY, MOLD AND HEATER
2MAY W10378254
3MAY W10377998
4MAY W10318914
5ICE STRIPPER
8MAY W10290336
9Screw (3)
10MAY W10351019
11MAY 8533917
12COVER
13MAY 2313326
14IMPINGER ASSY.
15HARNESS, ICE MAKER
16SCREW (10)
17ASSEMBLY, MODULE
18MAY W10068250
19Clip
100ASSEMBLY, ICEMAKER
