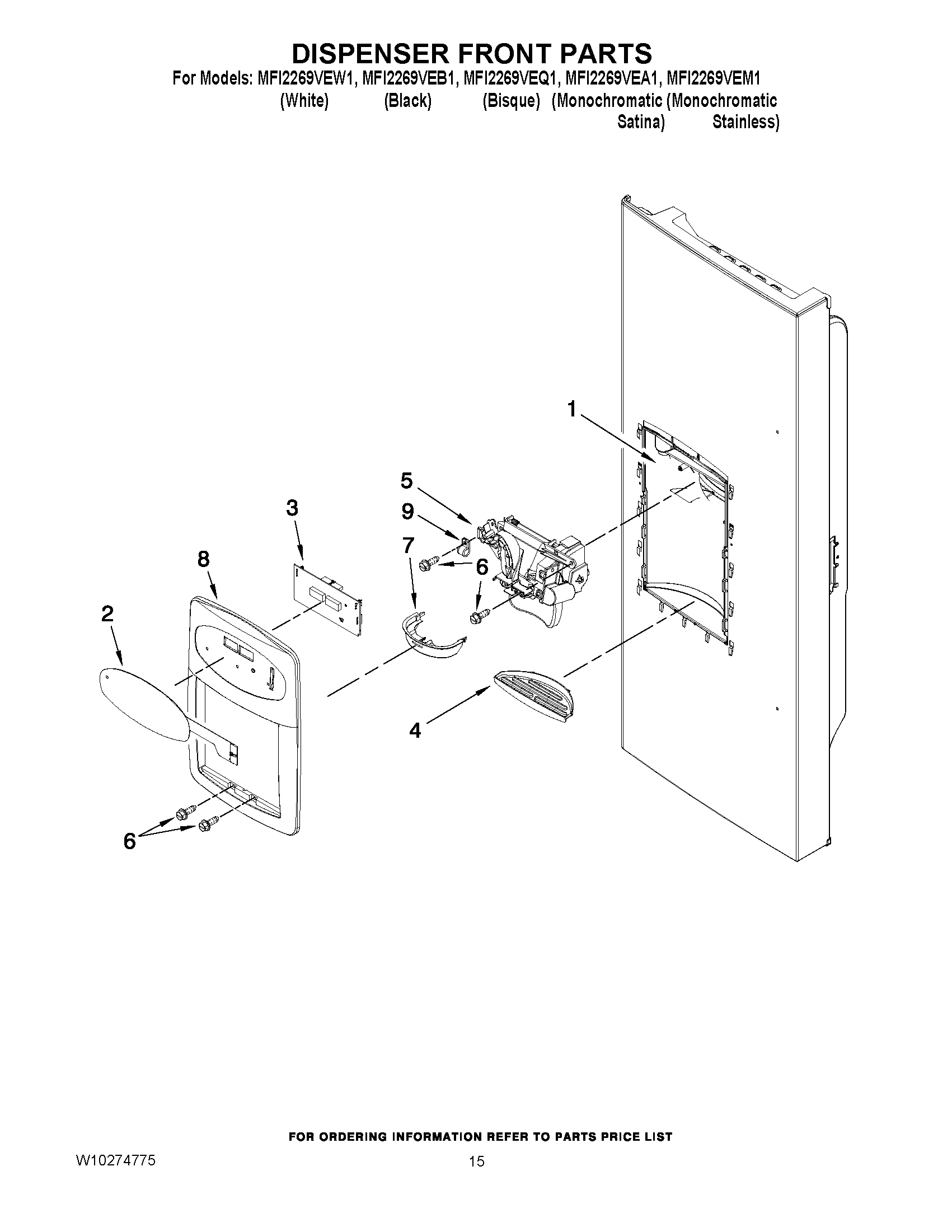

MFI2269VEM1 08 – DISPENSER FRONT PARTS

MFI2269VEM1 08 – DISPENSER FRONT PARTS

Written by

in

MFI2269VEM1 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10159999
2MAY W10164468
2MAY W10164469
2MAY W10164471
2MAY W10164470
3MAY 12939601
4MAY W10164979
4MAY W10142274
4MAY W10164981
4MAY W10185235
5CHUTE, EXT/YOKE (INCLUDES SWITCH) (BLACK)
5CHUTE, EXT/YOKE (INCLUDES SWITCH) (WHITE)
5MAY 13005703Q
5CHUTE, EXT/YOKE (INCLUDES SWITCH) (GREY)
6MAY 12990513
7MAY 12958301
8FACADE, DISPENSER (BLACK)
8FACADE, DISPENSER (WHITE)
8FACADE, DISPENSER (BISCUIT/BISQUE)
8MAY W10172895
8FACADE, DISPENSER (STAINLESS)
9MAY M0108106
