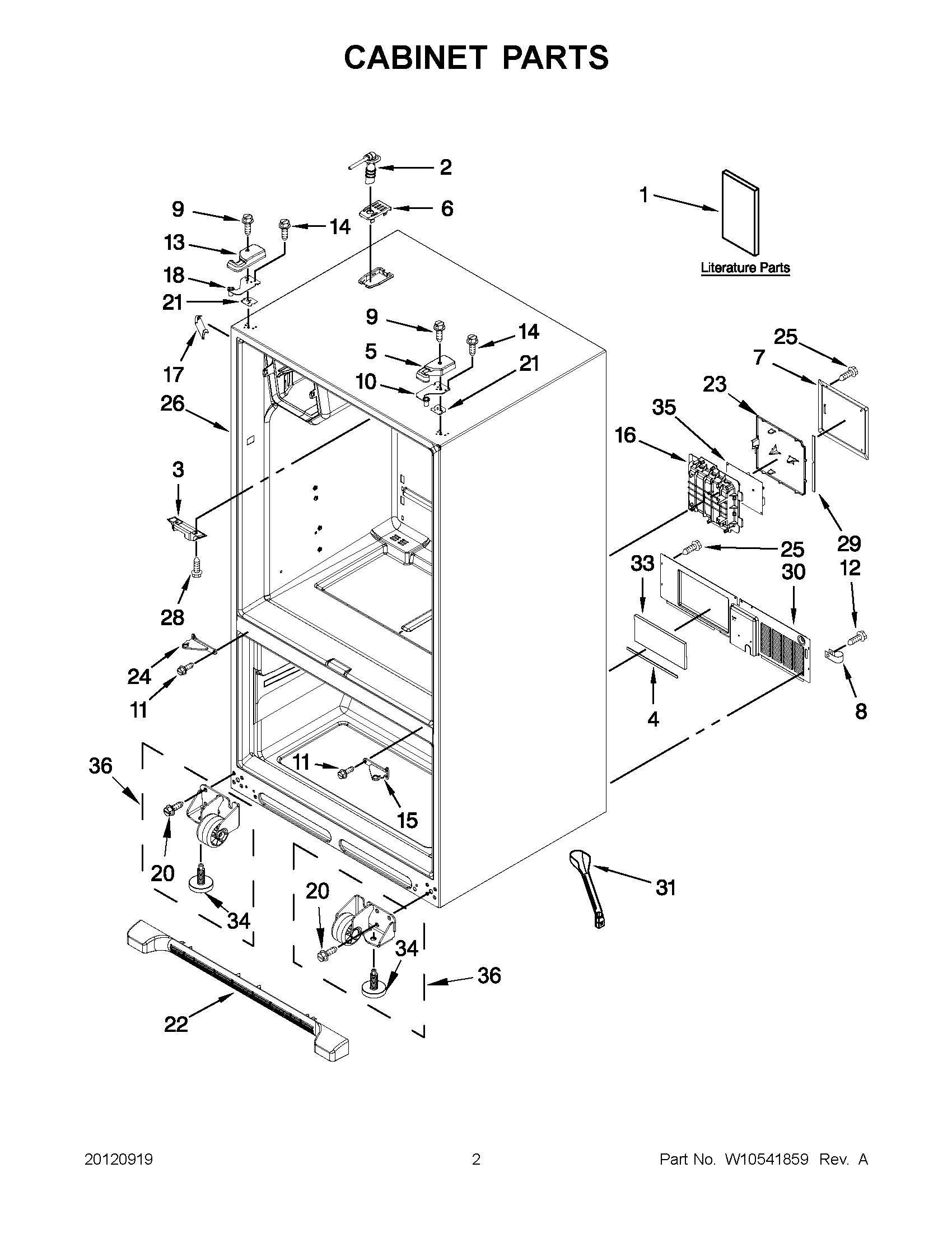

MFI2269VEM11 01 – CABINET PARTS

MFI2269VEM11 01 – CABINET PARTS

Written by

in

MFI2269VEM11 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET (USE & CARE GUIDE)
1TECH SHEET (GUIDE, ENERGY)
2TUBE, WATER
3Block, Pivot
4MAY B5759655
5MAY 12962302AP
6MAY 12981401AP
7MAY 12961602
8CLAMP, TUBE
9MAY 12992602
10MAY 12963205ED
11MAY W10339086
12SCREW (10)
13COVER, TOP HINGE (LEFT) (GREY)
14SCREW (6)
15HINGE, CENTER (RT) (GREY)
16MAY 12957601
17COVER, CORNER (GREY)
18MAY 12963204ED
20Screw (8)
21MAY 12999501
21MAY 12999502
22Grille, Toe (Apollo Grey)
23MAY W10296536
24HINGE, CENTER (LT) (GREY)
25SCREW
26LINER (NOT A SERVICEABLE PART)
28Screw (4)
29GASKET-HV BOX
30MAY W10211849
31TUBE-DRAIN
33Insulation, Sound
34Brake, Foot
35MAY W10312695
36ROLLER ASSEMBLY (LEFT HAND)
36ROLLER ASSEMBLY (RIGHT HAND)
