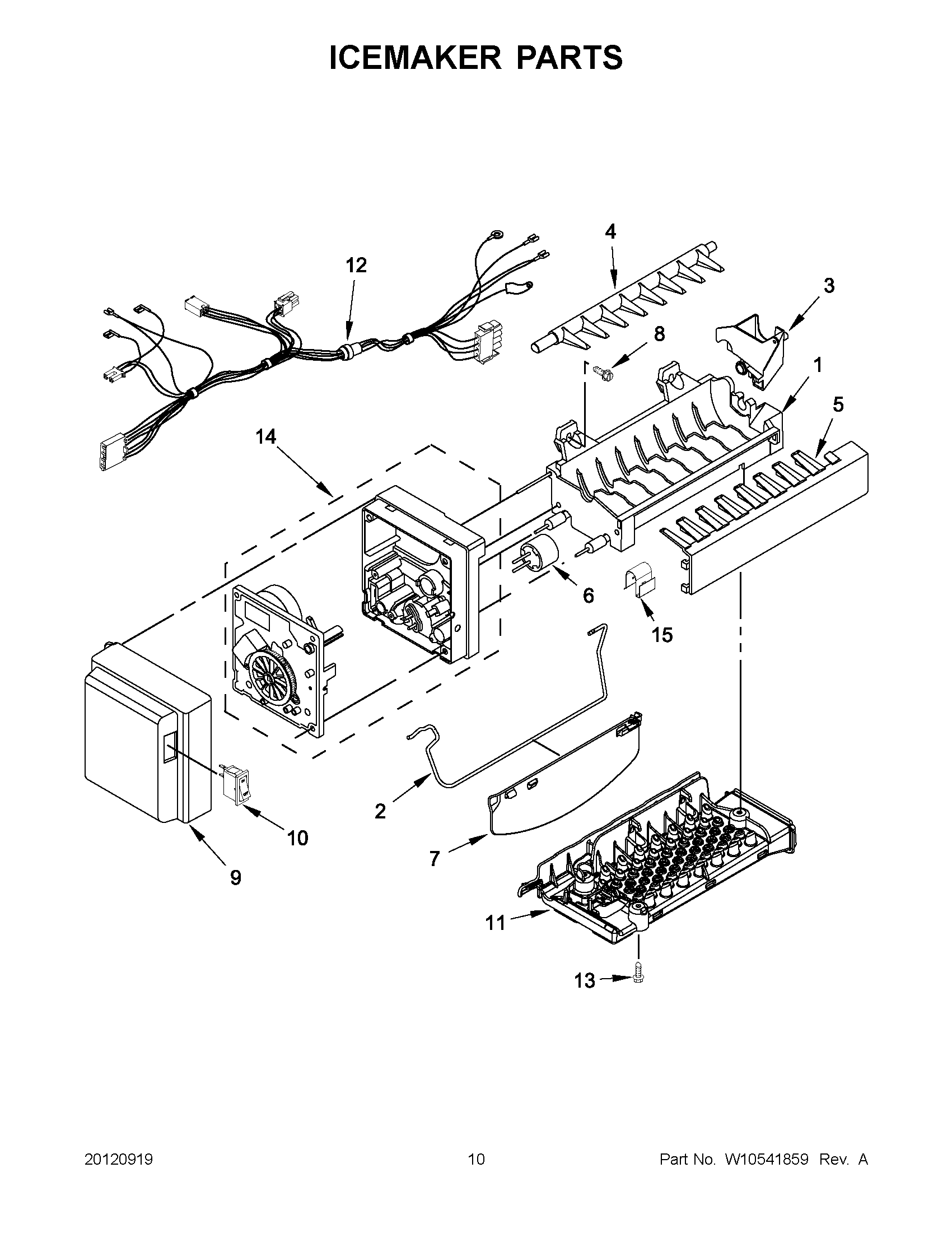

MFI2269VEM11 05 – ICEMAKER PARTS

MFI2269VEM11 05 – ICEMAKER PARTS

Written by

in

MFI2269VEM11 05 – ICEMAKER PARTS

Products

PositionProduct
1ASSEMBLY, MOLD AND HEATER
2MAY W10378254
3MAY W10377998
4MAY W10318914
5ICE STRIPPER
6MAY W10290336
7MAY W10351019
8MAY W10068250
9COVER
10MAY 2313326
11IMPINGER ASSY.
12HARNESS, ICE MAKER
13SCREW (10)
14ASSEMBLY, MODULE
15Clip
100ASSEMBLY, ICEMAKER
