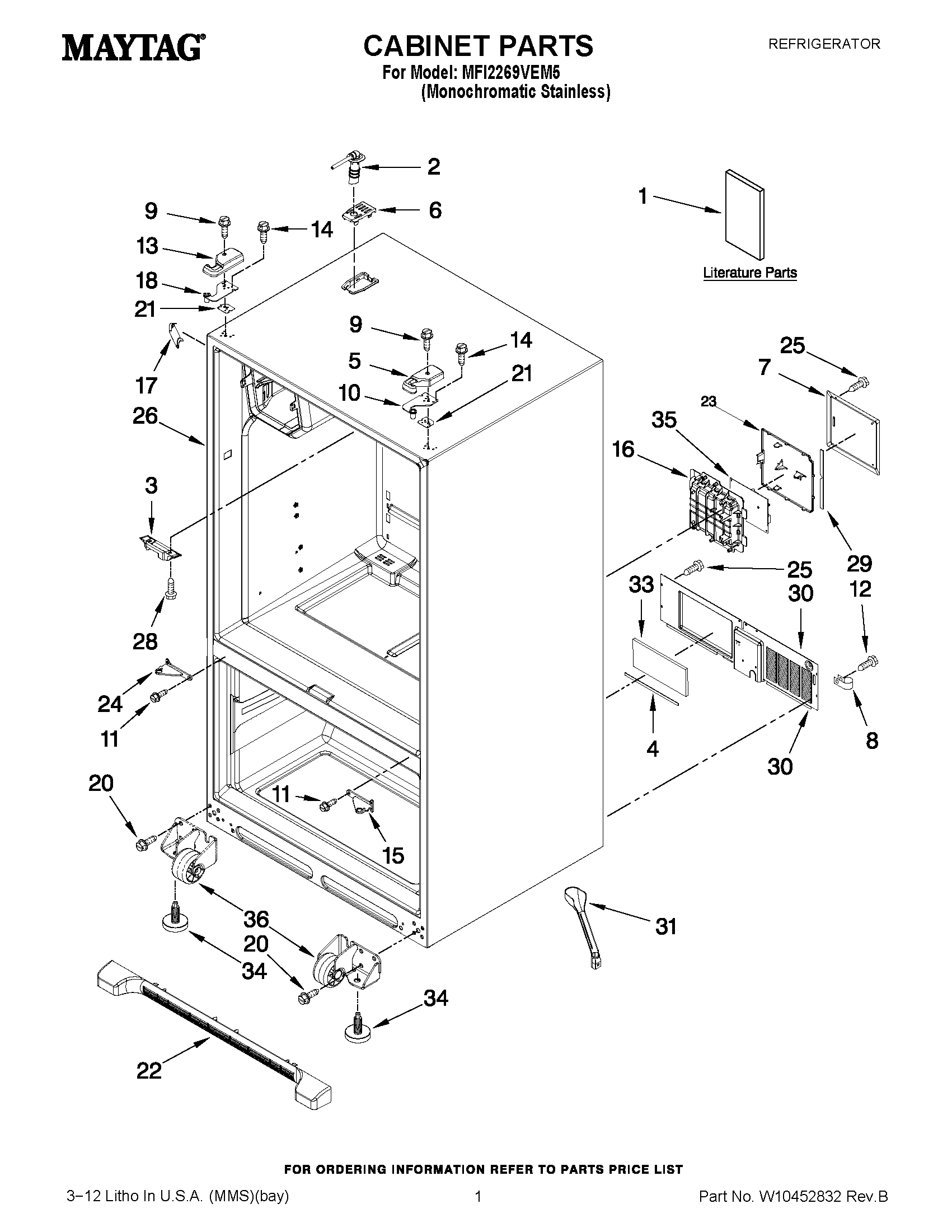

MFI2269VEM5 01 – CABINET PARTS

MFI2269VEM5 01 – CABINET PARTS

Written by

in

MFI2269VEM5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10341189
1	TECH SHEET (GUIDE, ENERGY)
1	TECH SHEET (USE & CARE GUIDE)
2	TUBE, WATER
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302AP
6	MAY 12981401AP
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	MAY 12962301AP
14	SCREW (6)
15	HINGE, CENTER (RT) (GREY)
16	MAY 12957601
17	COVER, CORNER (GREY)
18	MAY 12963204ED
20	Screw (8)
21	MAY 12999501
21	MAY 12999502
22	Grille, Toe (Apollo Grey)
23	MAY W10296536
24	HINGE, CENTER (LT) (GREY)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211849
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY W10312695
36	ROLLER ASSY. (FRONT) (LEFT)
36	ROLLER ASSY. (FRONT) (RIGHT)
