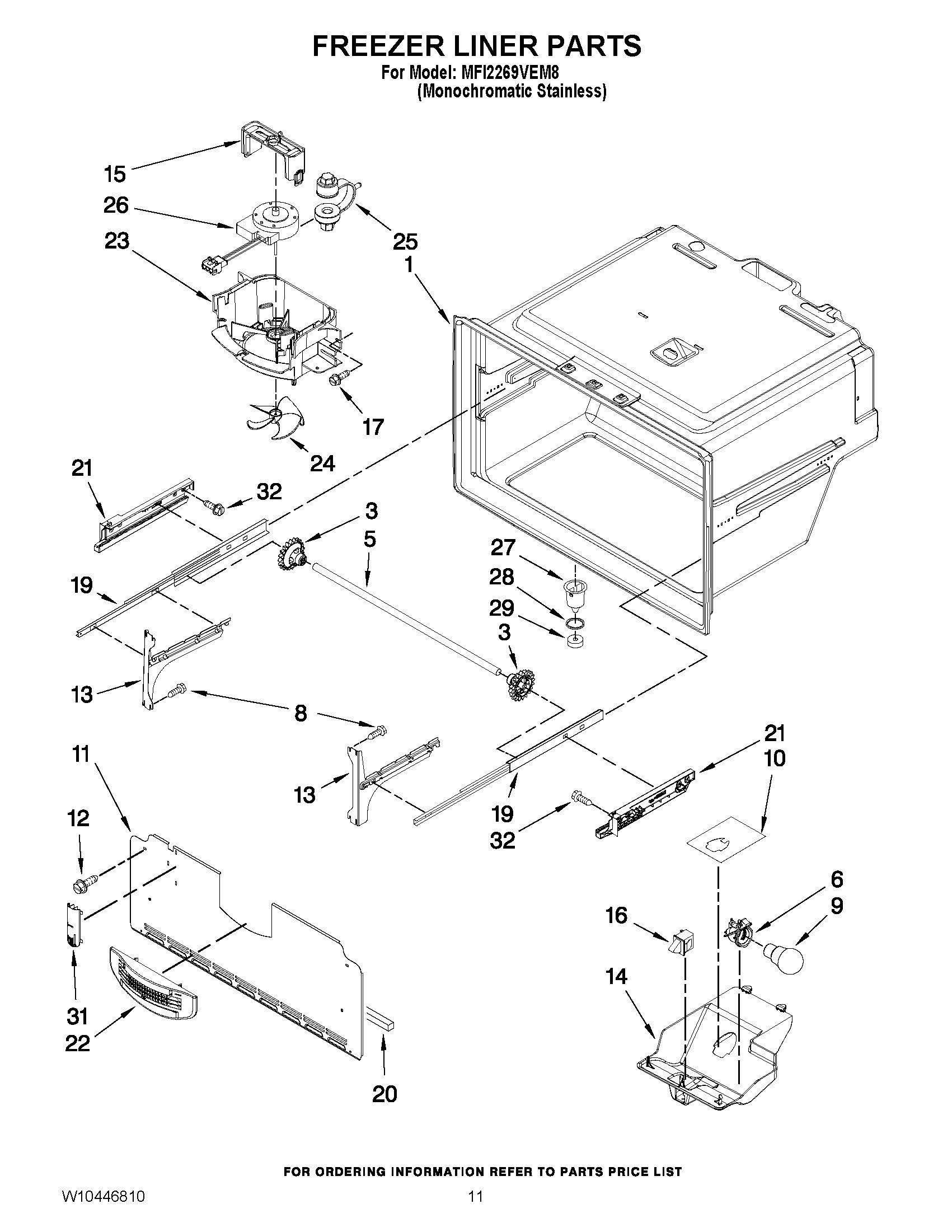

MFI2269VEM8 06 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY 12952005
1	LINER (NOT A SERVICEABLE PART)
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	MAY 12812902WD
6	W11447232 Whirlpool Refrigerator Socket
8	Screw (8)
9	MAY 2255743
10	MAY 12476401V
11	COVER, EVAPORATOR
12	SCREW (10)
13	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MAY 13027902
15	MAY 12956601
16	SWITCH, LIGHT
17	MAY 12990504
19	MAY W10120018
20	MAY A3189395
21	MAY W10284683
21	MAY W10284682
22	MAY 12959901
23	Shroud, Evap Fan
24	Blade, Fan (Evaporator)
25	Grommet, Fan Motor (2)
26	MAY W10162809
27	MAY D7753903
28	MAY M0500703
29	Gasket
31	MAY 12815301
32	Screw (6)
