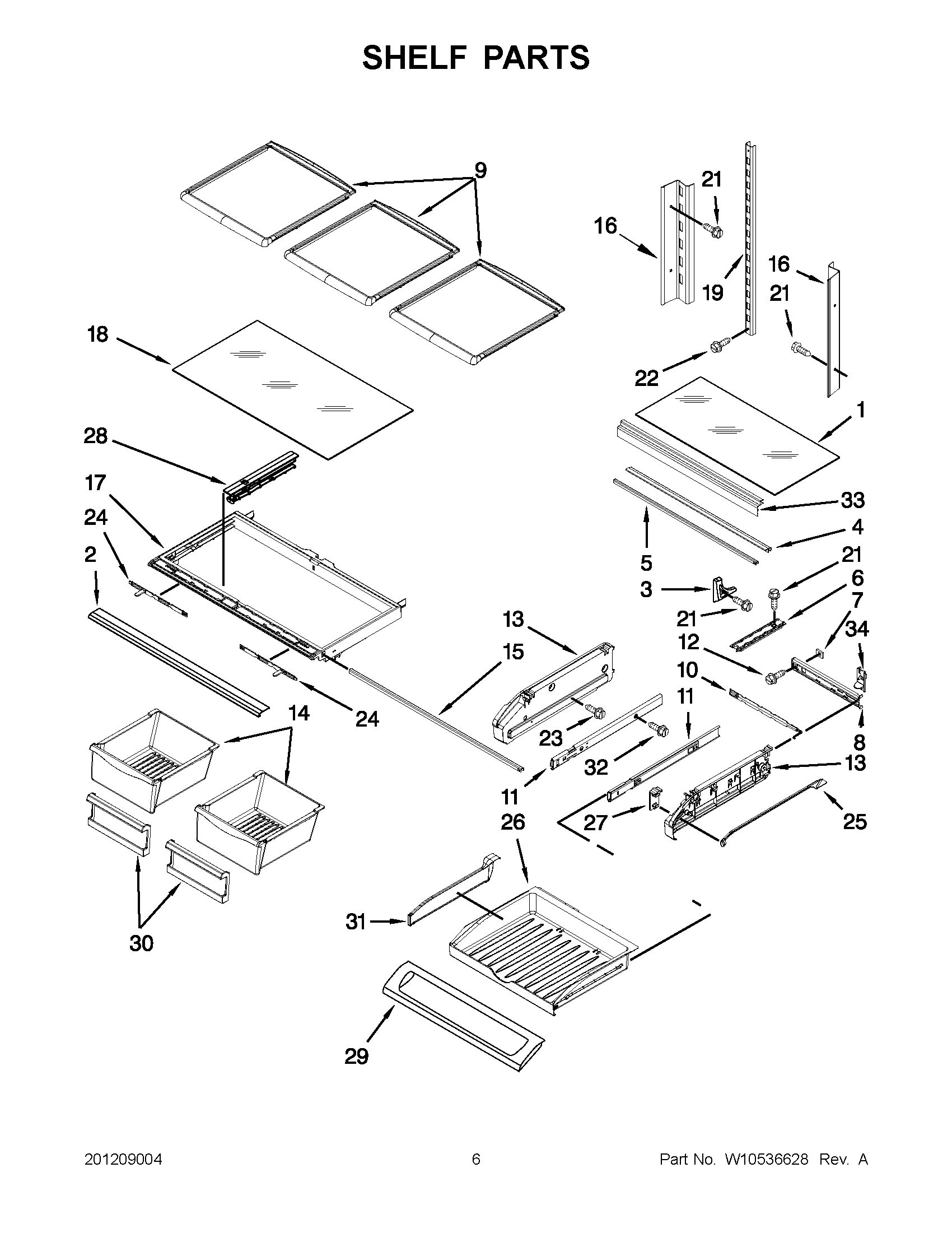

MFI2269VEM9 03 – SHELF PARTS

Products

Position	Product
1	MAY 12204820
2	TRIM, CRISPER
3	SUPPORT-RIGHT
3	SUPPORT-LEFT
4	MAY 12655903
5	MAY 12227301WD
6	TRACK, PANTRY
7	MAY 12656902
8	MAY 13048301
9	SHELF, GLASS
10	MAY 13048401
11	MAY W10235370
13	MAY 13047801
13	MAY 13047701
14	MAY 12530505SP
15	BRACE, CRISPER FRAME
16	MAY W10251968
16	LADDER, SIDE RH
17	FRAME, CRISPER
18	MAY 12204822
19	MAY W10273464
21	MAY 12990513
22	MAY 12990515
23	SCREW (2)
24	MAY 12530805SP
25	MAY 13048201
26	MAY 13048501SP
27	KNOB, TEMP CONTROL
28	Rail, Center Crisper
29	MAY 12656820
30	FRONT, CRISPER
31	MAY 13048601SP
32	MAY 12990504
33	MAY 13048801
34	HOOK, LADDER (LEFT HAND)
34	HOOK, LADDER (RIGHT HAND)
