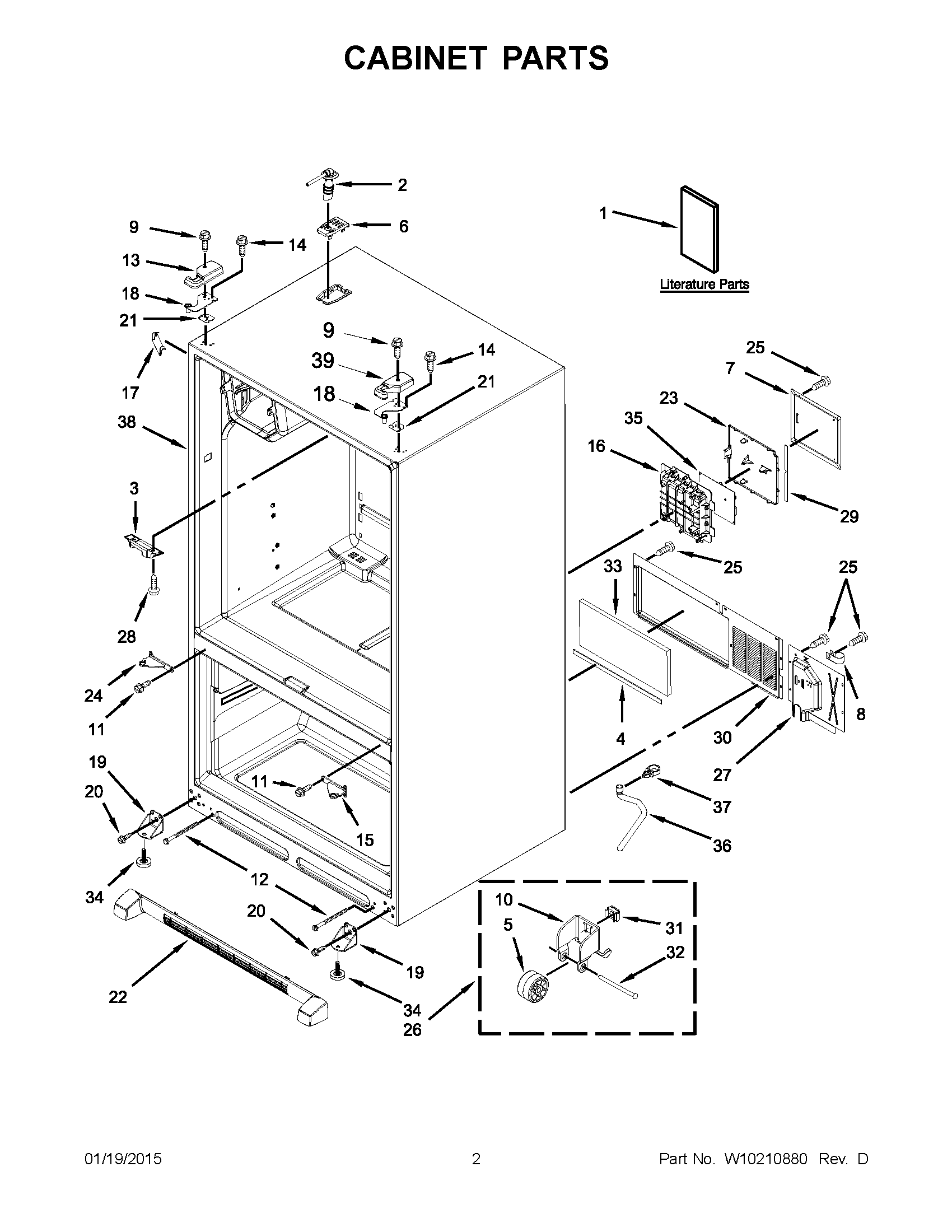

MFI2269VEQ10 02 – CABINET PARTS

Products

Position	Product
1A	MAY 12828186SP
1	MAY 12827970
1B	MAY W10166619
2	MAY W10165840
3	WP67003405 Whirlpool Pivot Block
4	Gasket
5	WP10450603 Whirlpool Refrigerator Roller
6B	COVER, FILL TUBE (GREY)
6A	MAY 67006321
6	MAY 67006320
7	MAY 67006427
8	W10833902 Whirlpool Refrigerator Clamp
9	WP8281196 Whirlpool Screw
10	12456801V Whirlpool Refrigerator Bracket
11	WP67006380 Whirlpool Screw
12	71003131 Whirlpool Oven Screw
13B	WPW10337634 Whirlpool Refrigerator Cover
13A	Cover, Left Hinge (Bisque)
13	W10337647 Whirlpool Refrigerator Cover
13C	Cover, Left Hinge (Apollo Grey)
14	WP489349 Whirlpool Refrigerator Screw
15A	HINGE, CENTER (BLACK, RIGHT )
15	MAY 67006379
16	WP67006390 Whirlpool Refrigerator High Voltage Box
17B	MAY 67003486
17A	67003485 Whirlpool Refrigerator Corner Cover (Black)
17	67003484 Whirlpool Refrigerator White Corner Cover
17C	COVER, CORNER (GREY)
18A	MAY 12963205ED
18	MAY 12963204ED
19	Bracket, Foot
20	MAY 67006564
21	12999501 Whirlpool Refrigerator Hinge Shim
21A	12999502 Whirlpool Refrigerator Hinge Shim
22	WPW10534162 Whirlpool Refrigerator Front Grille
22C	MAY 12880102AP
22B	WPW10534161 Whirlpool Refrigerator Front Grille
22A	MAY 67006791
23	67006428 Whirlpool Refrigerator LID, HV Control
24	W10918113 Whirlpool Refrigerator Door Hinge
24A	HINGE, CENTER (BLACK, LEFT)
25	Screw (10)
26	ROLLER ASSY.(REAR)
27	MAY 12701909
28	SCREW
29	MAY 67006429
30	MAY 12575101WD
31	MAY M0286708
32	MAY M1205302
33	67003796 Whirlpool Refrigerator Fiber Acoustic
34	W11177593 Whirlpool Leveling Feet
35	MAY 12920721
36	MAY W10164397
37	MAY W10157973
38	LINER (NOT A SERVICEABLE PART)
39C	Cover, Right Hinge (Apollo Grey)
39A	Cover, Right Hinge (Bisque)
39	WP67005956 Whirlpool Refrigerator Cover
39B	67005958 Whirlpool Refrigerator Top Hinge Cover (RT-WHT)
