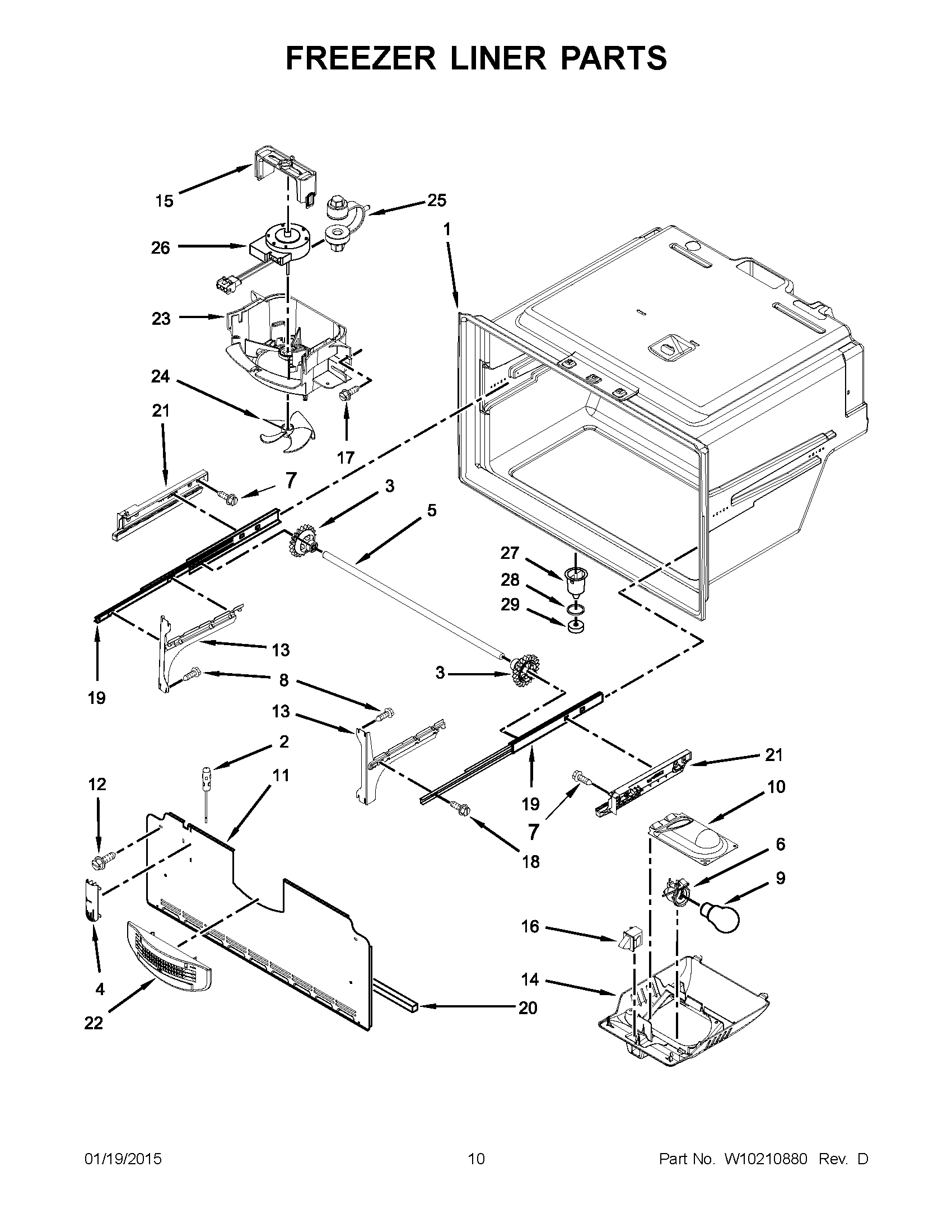

MFI2269VEQ10 06 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	12002355 Whirlpool Refrigerator Thermistor Kit
3	12002497 Whirlpool Refrigerator Drawer Gear Kit
4	WP67003924 Whirlpool Refrigerator Cover
5	SHAFT, RACK
6	Socket, Light (2)
7	Screw (6)
8	Screw (8)
9	RANGE ONLY 40W 120V APPL BULB
10	MAY 67001035
11	MAY W10165973
12	Screw (10)
13A	BRACKET, DOOR (RIGHT)
13	BRACKET, DOOR (LEFT)
14	MAY 67006423
15	W11712696 Whirlpool Clip
16	W11445850 Whirlpool Door Switch
17	WP98165 Whirlpool Screw
18	SCREW
19	MAY W10120018
20	Gasket, Bottom
21A	MAY W10159939
21	MAY W10159938
22	W11176847 Whirlpool Refrigerator Grille
23	MAY 67006424
24	WP67006337 Whirlpool Refrigerator Fan Blade
25	W11676465 Whirlpool Grommet
26	MAY W10162809
27	MAY D7753903
28	MAY M0500703
29	Gasket
