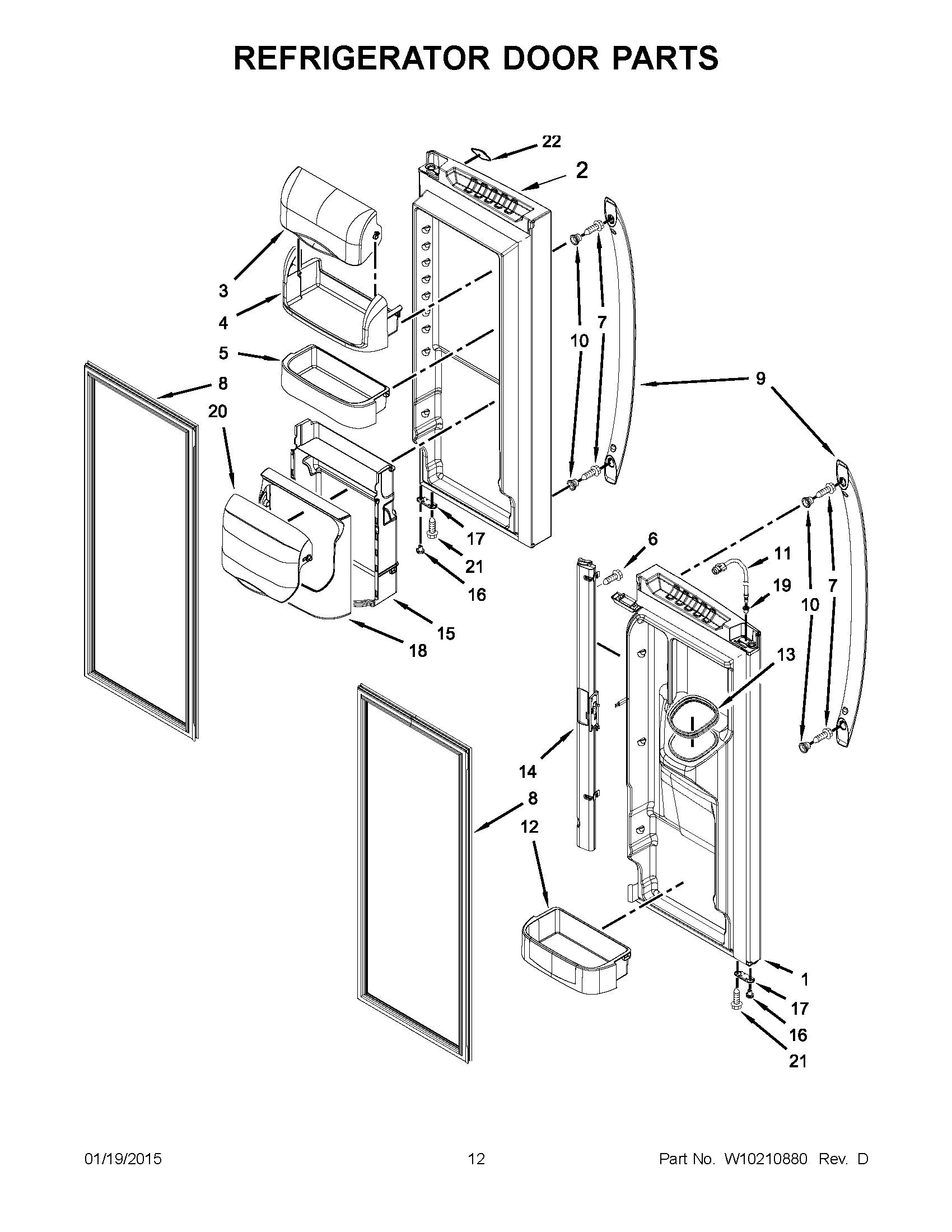

MFI2269VEQ10 07 – REFRIGERATOR DOOR PARTS

MFI2269VEQ10 07 – REFRIGERATOR DOOR PARTS

Written by

in

MFI2269VEQ10 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1MAY W10160133
1DDOOR, LEFT (MONOCHROMATIC SATINA)
1CMAY 13107882S
1AMAY W10160124
1BMAY W10160127
2MAY W10160132
2AMAY W10160123
2CMAY 13107853S
2DDOOR, RIGHT (MONOCHROMATIC SATINA)
2BMAY W10160126
3WP67003637 Whirlpool Dairy Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WP67006313 Whirlpool Refrigerator Chiller Bucket
6MAY 67006400
7WP3387230 Whirlpool Screw
8BGASKET, DOOR (GREY (LEFT HAND))
8AMAY W10163994
8MAY W10163993
8DMAY W10163898
8EGASKET, DOOR STAINLESS
8CMAY W10163896
9CHandle, Door (Stainless)
913004701W Whirlpool Refrigerator Handle
9AWP13004701B Whirlpool Refrigerator Handle
9BMAY 67006982
10WP67006113 Whirlpool Stud Bolt
1112962106 Whirlpool Refrigerator Waterline Door
12Bin, Shelf (Gallon)
13WPW10287601 Whirlpool Seal
14BMAY W10164406
14AMAY W10164405
14CMULLION, DOOR (GREY)
14MAY W10164404
16WP67003638 Whirlpool Closing Cam
16BMAY 12028505AP
16AWP67003639 Whirlpool Refrigerator Closer
17MAY 12968202W
17BStop, Door (Bisque)
17AW11708403 Whirlpool Door Stop
17CMAY W10191119
18W11266639 Whirlpool Refrigerator Chiller
1912996601 Whirlpool Refrigerator Bushing Clip
20DOOR-CHILL
21Screw (8)
22Nameplate
