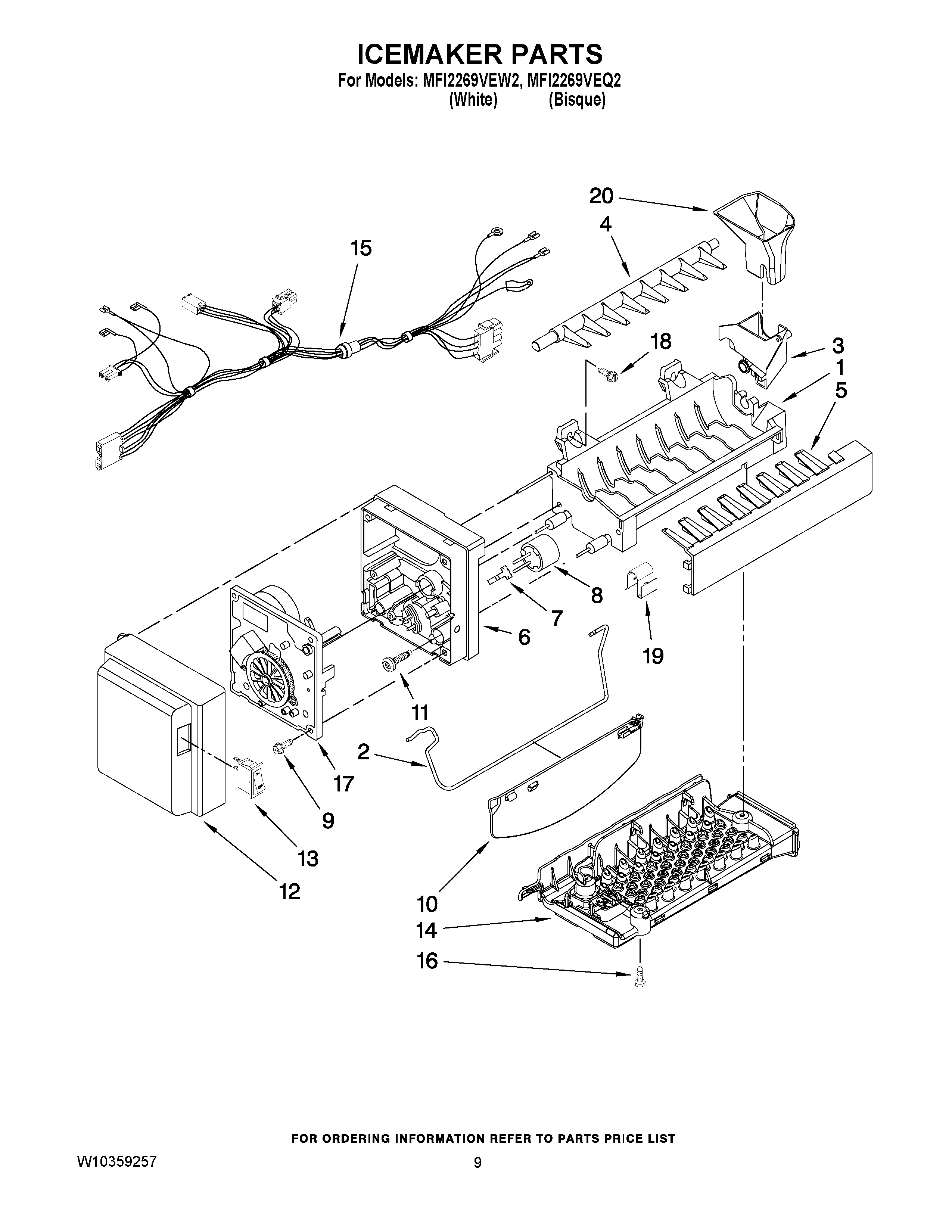

MFI2269VEQ2 05 – ICEMAKER PARTS

Products

Position	Product
NI	MAY 10244904SP
1	ASSEMBLY, MOLD AND HEATER
2	MAY W10175514
3	MAY W10327050
4	MAY W10318914
5	ICE STRIPPER
6	MAY 2194712
7	MAY 2315522
8	THERMOSTAT (ALSO ORDER 542369 CEMENT)
9	Screw (3)
10	MAY W10121440
11	MAY 8533917
12	MAY W10121444
13	MAY 2313326
14	IMPINGER ASSY.
15	HARNESS, ICE MAKER
16	SCREW (10)
17	MODULE ASSEMBLY (INCLUDES ITEM 24)
18	MAY 489136
19	Clip
20	MAY W10121434
100	MAY W10300024
