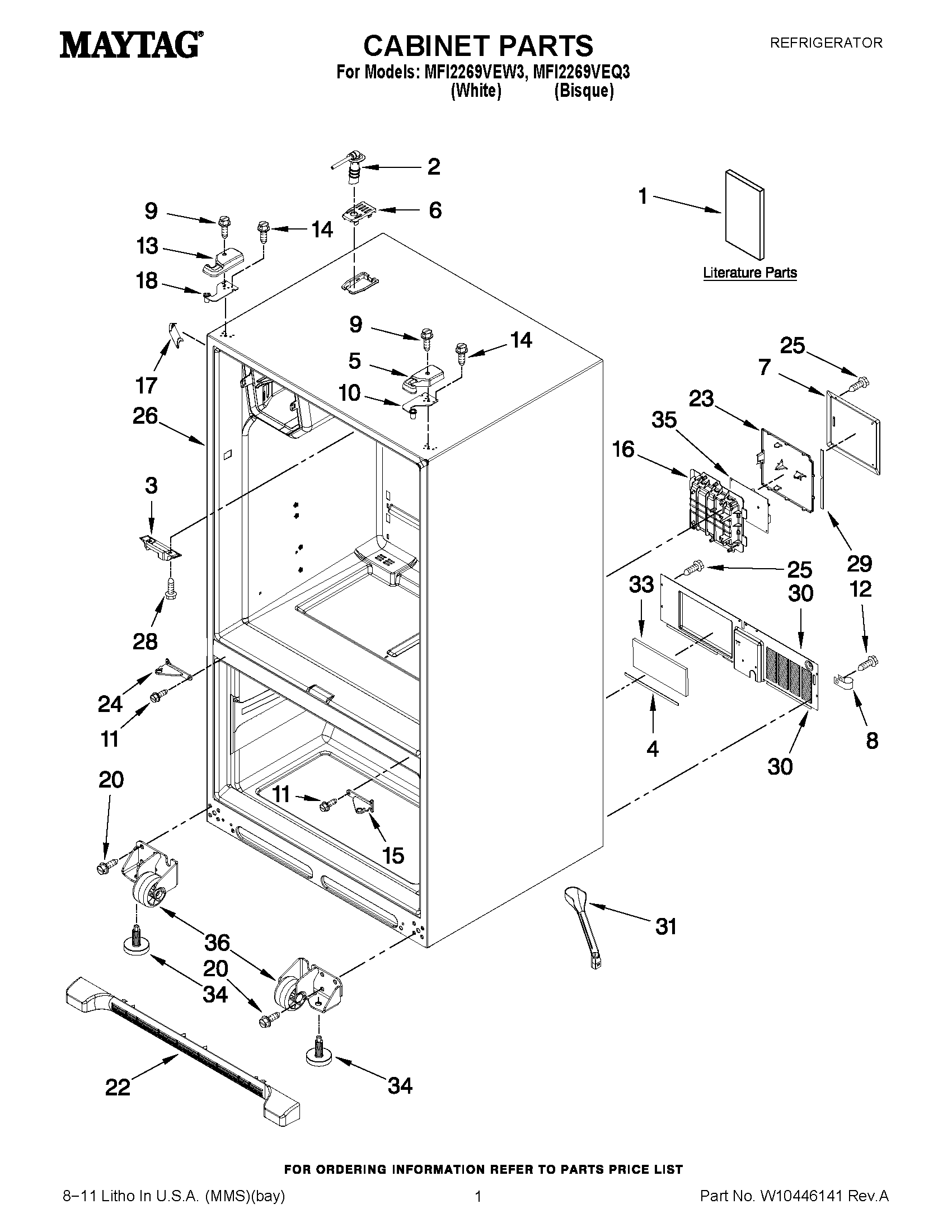

MFI2269VEQ3 01 – CABINET PARTS

Products

Position	Product
1	MAY W10341189
1	TECH SHEET (USE & CARE GUIDE)
1	TECH SHEET (GUIDE, ENERGY)
2	TUBE, WATER
3	Block, Pivot
4	MAY B5759655
5	MAY 12962302W
5	COVER, RIGHT HINGE (BISQUE)
6	MAY 12981401W
7	MAY 12961602
8	CLAMP, TUBE
9	MAY 12992602
10	MAY 12963205ED
11	SCREW (6)
12	SCREW (10)
13	COVER, LEFT HINGE (BISQUE)
13	MAY 12962301W
14	SCREW (6)
15	Hinge, Center (RT) (White)
16	MAY 12957601
17	Cover, Corner (Bisque)
17	Cover, Corner (2) (White)
18	MAY 12963204ED
20	Screw (8)
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (BISQUE)
22	MAY W10236195
23	MAY W10296536
24	Hinge, Center (LT) (White)
25	SCREW
26	LINER (NOT A SERVICEABLE PART)
28	Screw (4)
29	GASKET-HV BOX
30	MAY W10211849
31	MAY W10210988
33	Insulation, Sound
34	Brake, Foot
35	MAY W10312695
36	ROLLER ASSY. (FRONT) (RIGHT)
36	ROLLER ASSY. (FRONT) (LEFT)
