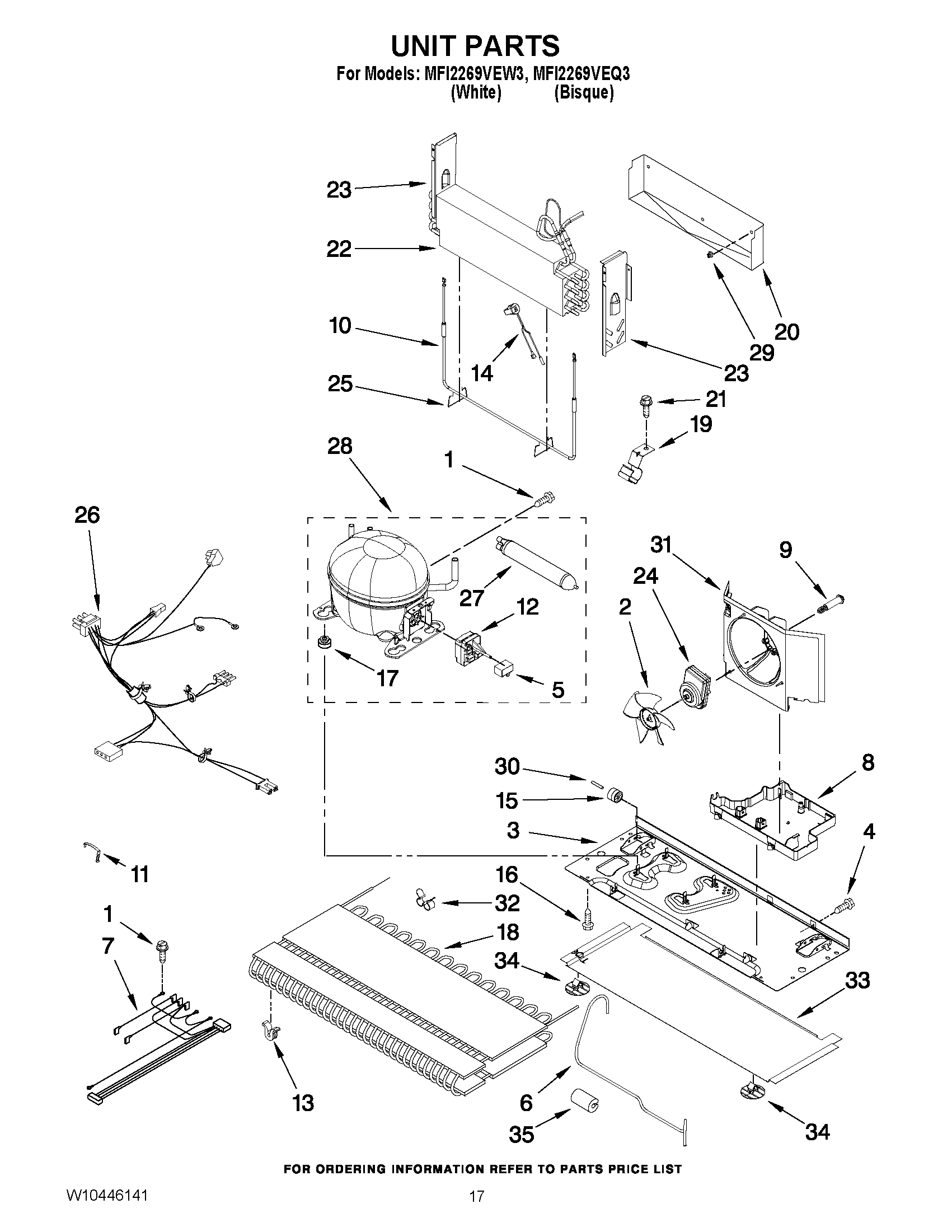

MFI2269VEQ3 10 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	Valve, Access (3/4“)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10210983
4	SCREW (10)
5	Capacitator (Production)
6	MAY W10306059
7	MAY W10257095
8	MAY W10296784
9	MAY W10216919
10	MAY 12729122
11	Clip, Retaining
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
13	GROMMET, COND (4)
14	MAY 12639311SP
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10346420
19	MAY W10281329
20	MAY W10292802
21	MAY 12990701
22	EVAPORATOR
23	Dam (Left Side)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	MAY W10234027
27	Drier
28	COMPRESSOR (INCLUDES ITEMS 10, 16, 22 & 35)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
32	CONNECTOR, WATER
33	MAY W10206337
34	MAY W10206339
35	GROMMET, CONDENSER
